Extra Large Flat Panel Displays

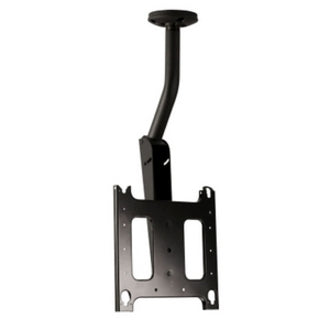

Chief's PCM-2124 Single Ceiling Mount is a strong innovative ceiling mount that hangs your display with the natural center of gravity to give you a durable installation. Portrait or landscape viewing pitch adjustment and cable management make the PCM highly functional for digital signage applications such as those found in retail stores or airports; or in a residential application with many windows and a lack of wall space.

PCM Single Ceiling Mount Includes:

• PAC-140 Q-Clamp accessory
• 8 x Screw Cap Button Head
• 2 x Nut Hex 3/8-16
• 2 x Washer Stainless Steel
• 1 x Nut Lock 10-24
• 3 x Washer UHMW
• 1 x Plate Front
• 1 x Knob Latch
• 1 x Tube 1 1/2" Threaded
• 1 x Mount Pitch
• 1 x Adapter Mount Pitch
• 2 x Buckle Spud
• 2 x Screw Socket Head Cap 1/4-20
• 1 x Key Allen
• 2 x Washer Flat
• 1 x Screw Pan Head 10-24
• 1 x Spacer (.38 X .194 X .032")
• 2 x Plasma Side Bracket
• 2 x Plasma Top/Bottom Bracket
• 4 x Mounting Button - Tapped
• 8 x (10-24 x .5) Button Head Cap Screw
• 4 x (M6 x 35mm) Philips Head Cap Screw
• 4 x (.51 X .32 X .875) Nylon Spacer
• 1 x 1/8 Allen Key
• 4 x M6 Flat Washers

• Yaw: 360º
• Display roll adjustment 3 degrees
• Pitch Adjustment: 5 degrees up 25 degrees down
• Gravity centered positioning for unmatched stability
• Unique design well suited for digital signage information displays and home installations
• Exclusive Q-Latch Mounting System secures the Large Flat Panel Display with a lockable latch
