Extra Large Flat Panel Display

This custom mounting solution swings out and extends over 37" (93.98 cm) from the wall while remaining low profile in the home position! The PDR-2241B includes all of the standard features you can expect from a Chief mount plus several new exclusive features developed specifically for this PDR mount.

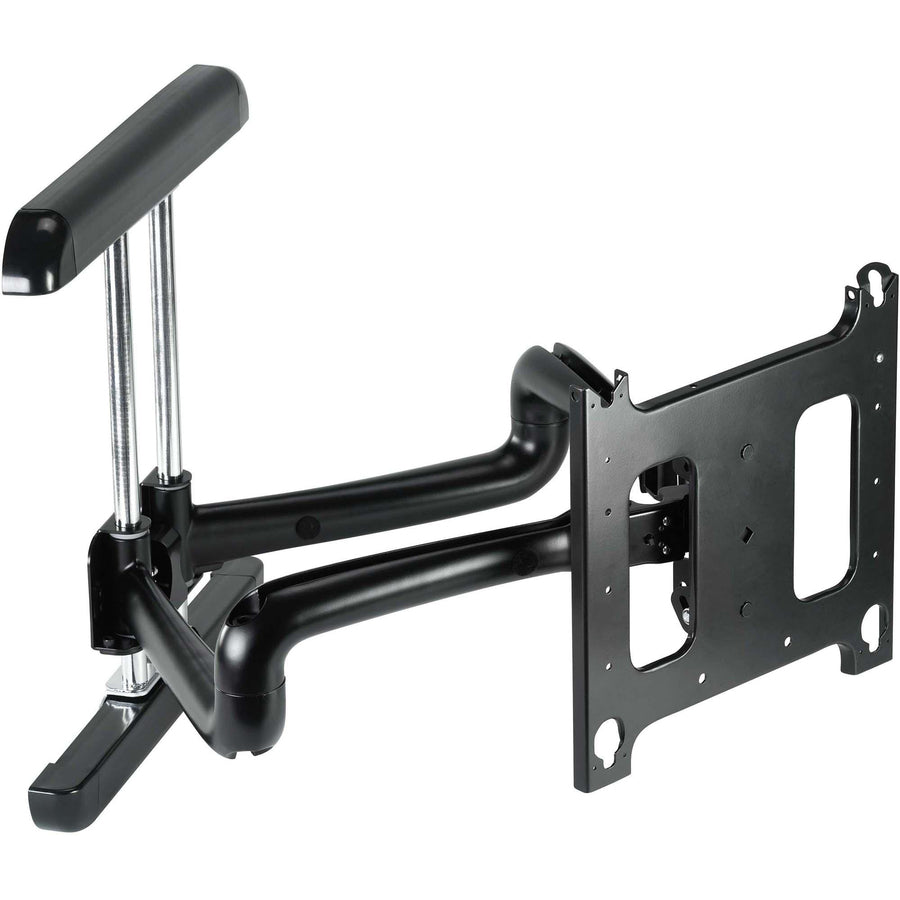

PDR Reaction Dual Swing Arm Wall Mount Includes:

• 2 x Cover Plates
• 4 x End Caps
• 12 x Tie-wraps
• 1 x Wrench Adjustment
• 1 x Bar Adjustment
• 1 x LCD Interface Bracket
• 4 x Mounting Buttons-Tapped 10-24
• 4 x (10-24 x .5") Button Head Cap Screws
• 4 x (M6 x 25mm) Phillips Head Cap Screws
• 4 x (M6 x 40mm) Phillips Head Cap Screws
• 4 x (M6 x 20mm) Button Head Cap Screws
• 4 x (.740 OD x .250 ID x .250) Round Nylon Spacer
• 1 x 1/8" Allen Key
• 1 x M4 Allen Key
• 4 x (.750 OD x .323 ID x .125) Round Nylon Spacer

• Roll: 4 degree
• Tilt: +5 degree -15 degree
• Mounts in Portrait or Landscape
• Pivot up to 90º left or right of center
• Channel Size Each Arm: 5/8" Wide (1.58 cm)
• Pitch adjustment that spans 5º up and 15º down
• Gravity-Centered Tilt - No tools necessary for position adjustments
• Wall protection rubber stops protect the wall when arms are collapsed
• Independently adjustable tension at pivot points provides customized control
• Built-In Cable Management Channels inside the arms provide a clean installation
• Post-installation height adjustment up to 3" (7.62 cm) for ultimate installation flexibility
• Easy Installation - Wall bracket can be placed on wall using convenient mount guides
• Q-Latch mounting system uses a lockable latch to safely secure display to the mount
• Integrated Lateral Shift Up to 9" (22.86 cm) - 2" (5.08 cm) left/right of 16" (40.64 cm) stud system without disassembly
