Projector

This is the top-selling projector mount in the industry! This RPA Mount is installed in offices schools and homes than any other mount. Also recognized in the Media & Methods 2003 Awards Portfolio for making a significant contribution to the school market.

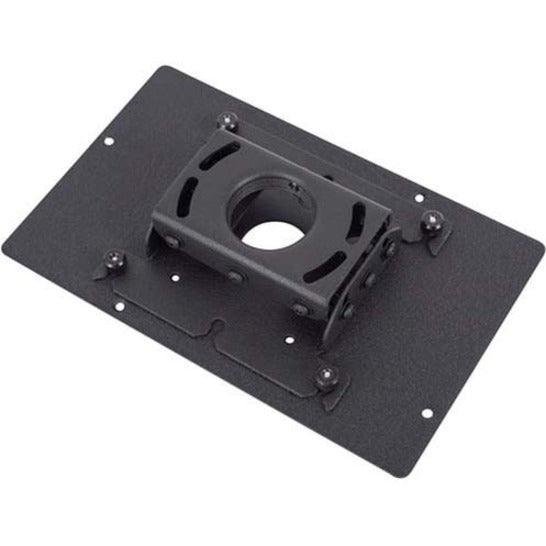

RPA-193 Inverted Custom Projector Mount Includes:

• 1 x BRACKET Ceiling
• 1 x BRACKET Joint
• 1 x PLATE Adjustment
• 12 x SCREW Self-Tapping Pan Head 10-24 X 1/2" with washer
• 1 x SCREW Set 5/16"
• Allen Wrench
• Security Allen Wrench

• Column: 1.5" NPT
• Low-profile aesthetic design
• Three ceiling mounting methods
• Flush mount without disassembly
• Easy installation - no assembly
• Convenient lamp and filter access
• Quick projector disconnect/reconnect
• Allows natural convection ventilation
• Disconnect without affecting adjustments
• Allows cables to be routed through the top of the mount without additional accessories
• Compatible with a large assortment of accessories to easily overcome a variety of installation challenges
• Roll Adjustment: +/- 4° adjustment up or down. Loosen screw adjust mount and tighten screw to hold adjustment
• Pitch Adjustment: +/- 25° adjustment on each side of the mount. Loosen screw adjust mount and tighten screw to hold adjustment. Full range of pitch in a flush mount installation
• Yaw Adjustment: 360° by turning the mount on the threaded column and securing in place with set screw. 12° yaw possible on flush mount using slots in top of RPA
