• Virtual Switching Supervisor Engine 720-10G
• Supervisor Engine 720 with any PFC
• Cisco Catalyst 6500 E-Series chassis

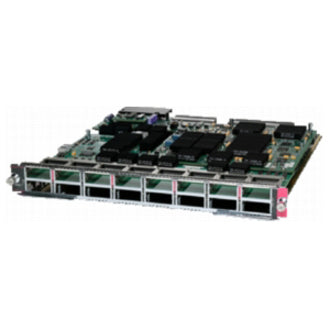

The 16-port 10 Gigabit Ethernet module provides up to 130 10 Gigabit Ethernet ports in a single Cisco Catalyst 6500 chassis and 260 10 Gigabit Ethernet ports in a virtual switching system (VSS) and is targeted for LAN campus aggregation and data center access where fanout and port density are very important. It consists of 4 port groups of 4 ports each. Users can operate each port group in either oversubcription mode (2 to 4 ports used per port group) or performance mode (1 port used per port group) allowing maximum flexibility for using some ports for connection to servers in performance mode and some other uplinks to wiring closets in oversubscription mode. When in performance mode up to four 10 Gigabit Ethernet ports can be used to create a virtual switch link in a VSS.1 In addition the 16-port 10 Gigabit Ethernet module has reduced power consumption.

• Switch Fabric Connection: 40 Gbps (80 Gbps full duplex)
• Forwarding Engine: 256K routes
• Maximum Port Density per VSS: 260 ports
• Maximum Port Density per Chassis: 130 ports (9-slot chassis)
• Jumbo Frame Support for Bridged and Routed Packets: Up to 9216 bytes
• Onboard Memory: 1 GB
