• IEEE 802.3: 10BASE-T
• IEEE 802.3u: 100BASE-TX
• USB 1.1

Safety:

• UL 60950
• CAN/CSA C22.2 No. 60950
• IEC 60950
• EN 60950-1
• AS/NZS 60950

Immunity:

• EN300386
• EN55024/CISPR24
• EN50082-1
• EN61000-6-2

EMC:

• FCC Part 15
• ICES-003 Class A
• EN55022 Class A
• CISPR22 Class A
• AS/NZS 3548 Class A
• VCCI Class A
• EN 300386
• EN61000-3-3
• EN61000-3-2

TELCOM:

• Interfaces comply with FCC Part 68 CS-03 JATE Technical Conditions European Directive 99/5/EC and relevant TBR's

• Multiprotocol Label Switching (MPLS) VPN support
• Secure Shell (SSH)

VPN Hardware Acceleration (on motherboard):

• DES 3DES AES 128 AES 192 and AES 256

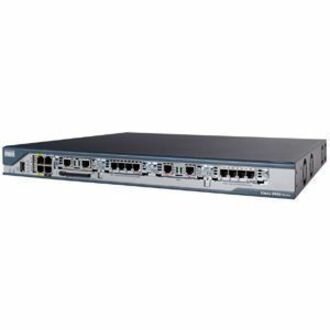

The Cisco 2801 provides significant additional value compared to prior generations of Cisco routers at similar price points by offering up to a fivefold performance improvement up to a tenfold increase in security and voice performance new embedded service options and dramatically increased slot performance and density while maintaining support for most of the more than 90 existing modules that are available today for the Cisco 1700 Cisco 2600 and Cisco 3700 Series.

The Cisco 2801 allows network managers to provide scalable analog and digital telephony without investing in a one-time solution allowing enterprises greater control of their converged telephony needs. Using the voice and fax modules the Cisco 2801 can be deployed for applications ranging from voice-over-IP (VoIP) and voice-over-Frame Relay (VoFR) transport to robust centralized solutions using the Cisco Survivable Remote Site Telephony (SRST) solution or distributed call processing using Cisco Call Manager Express (CME).

• 2801 Router
• Cisco 2801 IOS SP SERVICES
• Feat Lic Survivable Remote Site Telephony up to 24 phones (FL-SRST-SMALL)
• Device manager for routers (ROUTER-SDM)
• 8-Channel Packet Voice/Fax DSP Module (PVDM2-8)
• 128 to 256MB SODIMM DRAM factory upgrade for the Cisco 2801 (MEM2801-128U256D)
• 64MB CF default for Cisco 2800 Series (MEM2800-64CF-INC)
• Blank WAN Interface Card Panel (WIC-BLANK-PANEL)
• Cisco 2801 AC power supply (PWR-2801-AC)
• Power Cord
• One blue RJ-45-to-DB-9 console cable
• One DB-9-to-DB-25 modem adapter
• 19-inch (48.26-cm) rack-mount brackets with bracket screws
• Cable management bracket with one mounting screw
• Rubber chassis feet for desktop application
• Cisco product registration card
• Cisco 2800 Series and Cisco 3800 Series Regulatory Compliance and Safety Information document
• Cisco Router and Security Device Manager (SDM) Quick Start Guide document
• Cisco 2800 Series Integrated Services Routers Quick Start Guide

Interface Card Slots:

• 2 slots support HWIC WIC VIC or VWIC type modules
• 1 slot supports WIC VIC or VWIC type modules
• 1 slot supports VIC or VWIC type modules

Operation Altitude (derate 1.5°C per 1000 ft):

• 25°C @ 3 km/10 kft
• 40°C @ sea level
