    C3X60 SERVER NODE E5-2660 V2
1 1

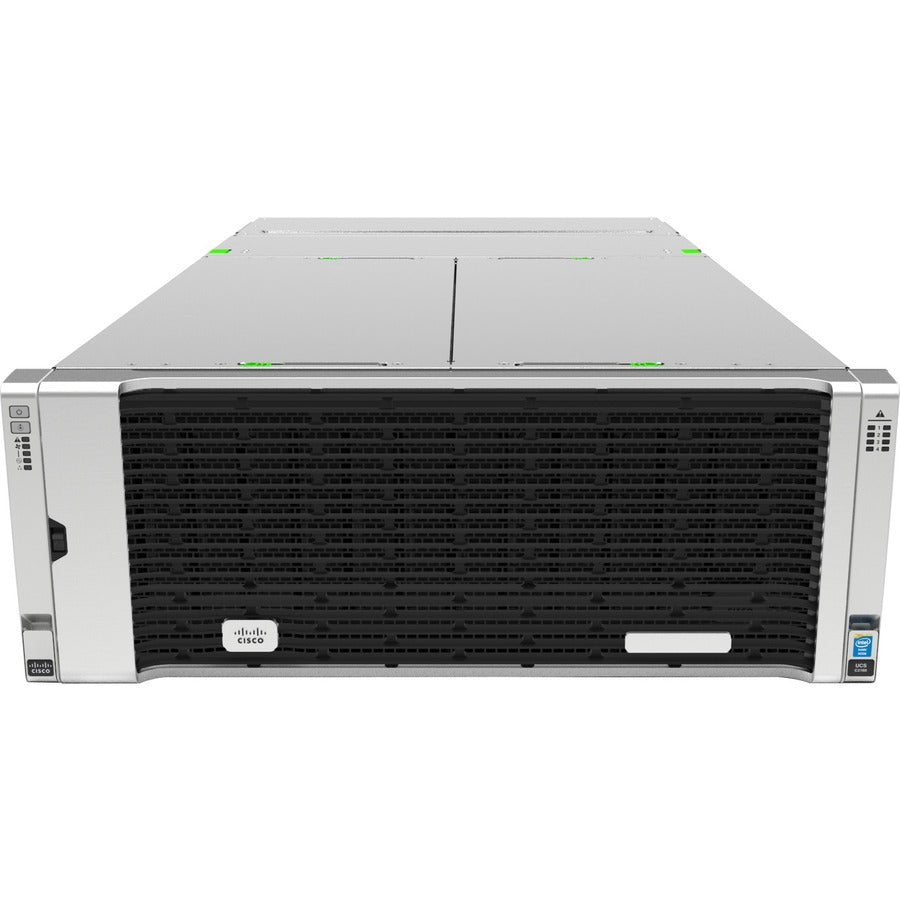

Cisco C3160 4U Rack Server - 2 x Intel Xeon E5-2660 v2 2.20 GHz - 256 GB RAM - 12Gb/s SAS Controller

Cisco C3160 4U Rack Server - 2 x Intel Xeon E5-2660 v2 2.20 GHz - 256 GB RAM - 12Gb/s SAS Controller

SKU: 1029621350      MFR: Cisco Systems Inc

Product Description

Cisco C3160 4U Rack Server - 2 x Intel Xeon E5-2660 v2 2.20 GHz - 256 GB RAM - 12Gb/s SAS Controller - 2 Processor Support - 256 GB RAM Support - 0 1 5 6 10 50 60 RAID Levels - Gigabit Ethernet - 4 x 1050 W

Manufacturer : Cisco Systems Inc

Manufacturer Part No : UCSC-C3X60-SVRN3

Features

  • Experience high performance built-in security and remote management capabilities with Intel Xeon 2.20 GHz processor
  • Up to 10x faster than standard Ethernet connectivity and provides high-performance uplinks
  • RAID provides data reliability fault tolerance and improves overall performance
  • With 256 GB memory users can run multiple programs simultaneously without losing performance
  • 4 x 1050 W power supply unit (PSU) included

Product Details

Product TypeServer
Processor CoreDeca-core (10 Core)
Processor ManufacturerIntel
Number of Total Memory Slots16
Number of Processors Supported2
Number of Processors Installed2
RAID SupportedYes
Ethernet TechnologyGigabit Ethernet
Maximum Power Supply Wattage1050 W
Product FamilyC3160
Processor ModelE5-2660 v2
Memory TechnologyDDR3 SDRAM
ChipsetIntel C600
Rack Height4U
Brand NameCisco
Form FactorRack
Processor Speed2.20 GHz
Processor TypeXeon
RAID Levels0 1 5 6 10 50 60
Controller Type12Gb/s SAS
Maximum Memory Supported256 GB
Limited Warranty3 Year
Standard Memory256 GB
Cache25 MB
Chipset ManufacturerIntel
Chipset ModelC600
Number of Power Supplies Installed4
VGAYes
Network (RJ-45)Yes
Total Number of USB Ports5
Number of USB 2.0 Ports5
Height6.9"
Width17.5"
Depth32"
Product SeriesC3160
ManufacturerCisco Systems Inc
Product NameUCSC C3160 Server
Input Voltage230 V AC
Manufacturer Part NumberUCSC-C3X60-SVRN3
Manufacturer Website Addresshttp://www.cisco.com
Marketing InformationGet Enterprise-Class Storage Density

The Cisco UCS C3160 Rack Server is an advanced modular high-storage-density rack server targeted at storage-driven use cases. Combining industry-leading performance and scalability the UCS C3160 directly targets environments deploying OpenStack Ceph-based object stores and other software-defined and distributed storage environments. The rack server offers the highest levels of drive density.
Weight (Approximate)195 lb
64-bit ProcessingYes
Number of Nodes1
Hyper-ThreadingYes
Direct Media Interface8 GT/s
Maximum Turbo Speed3 GHz
Memory StandardDDR3-1866/PC3-14900
Certifications & Standards

Regulatory Compliance:

  • CE Markings per directives
  • 2004/108/EC and 2006/95/EC

Safety:

  • UL 60950-1 Second Edition
  • CAN/CSA-C22.2 No. 60950-1 Second Edition
  • EN 60950-1 Second Edition
  • IEC 60950-1 Second Edition
  • AS/NZS 60950-1

EMC - Emissions:

  • 47CFR Part 15 (CFR 47) Class A
  • AS/NZS CISPR22 Class A
  • CISPR22 Class A
  • EN55022 Class A
  • ICES003 Class A
  • VCCI Class A
  • EN61000-3-2
  • EN61000-3-3
  • KN22 Class A
  • CNS13438 Class A

EMC - Immunity:

  • EN55024
  • CISPR24
  • EN300386
  • KN24
Compatibility
  • Windows Server 2012 Standard
  • Windows Server 2012 Datacenter
  • Windows Server 2012 Standard
  • Windows Server 2012 Datacente
  • Windows Server 2012 R2 Standard
  • Windows Server 2012 R2 Datacenter
  • Windows Server 2012 R2 Standard
  • Windows Server 2012 R2 Datacen
  • SUSE Linux Enterprise Srvr
  • Red Hat Enterprise Linux
  • VMware 5
View full details
$29,999.99 USD
$29,999.99
Sale Sold out
