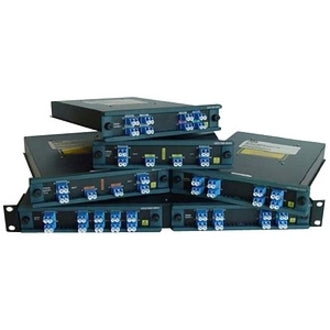

CWDM 2-slot chassis (CWDM-CHASSIS-2)

This CWDM OADM is passive device that can multiplex/demultiplex or add/drop wavelengths from multiple fibers onto one optical fiber. The OADM connectors are interfaced to the color-matching CWDM GBIC or CWDM SFP transceivers on the equipment side.

Single-wavelength OADM are equipped with two channels traveling different network paths (east and west) to offer redundancy or protection in rings.

• Spare Product
• Connector Color Code: Orange
• Number of Gigabit Ethernet Links (Maximum): 2
• Network Architecture Options: Ring (point-to-point possible)
• Connect the network west backbone single-mode fiber-optic cable to the NETWORK WEST connector on the OADM module and connect the east backbone single-mode fiber-optic cable to the NETWORK EAST connector on the OADM module
