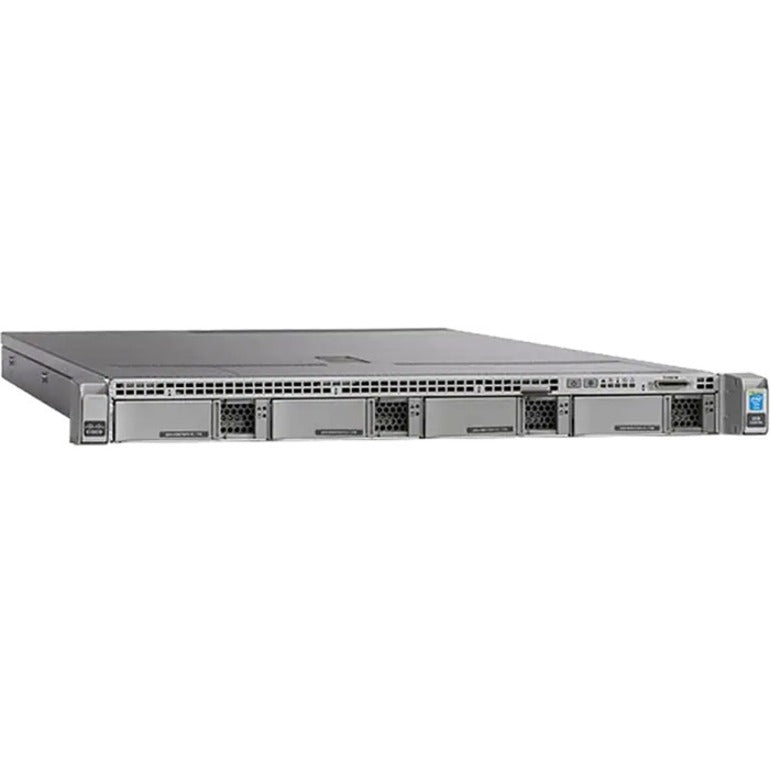

The Cisco Firepower^™ Management Center increases the effectiveness of your Cisco^® network security solutions by providing centralized integrated and streamlined management.

Product overview

The Cisco Firepower Management Center is the administrative nerve center for select Cisco security products running on a number of different platforms. It provides complete and unified management of firewalls application control intrusion prevention URL filtering and advanced malware protection. The Management Center is the centralized point for event and policy management for the following solutions:

• Cisco Firepower Next-Generation Firewall (NGFW)
• Cisco ASA with FirePOWER Services
• Cisco Firepower Next-Generation IPS (NGIPS)
• Cisco FirePOWER Threat Defense for ISR
• Cisco Advanced Malware Protection (AMP)

The Cisco Firepower Management Center provides extensive intelligence about the users applications devices threats and vulnerabilities that exist in your network. It also uses this information to analyze your network's vulnerabilities. It then provides tailored recommendations on what security policies to put in place and what security events you should investigate.

• Maximum number of sensors managed: 50
• Maximum IPS events: 30 million
• Management interface: Two built-in RJ-45 SFP+ ports; Support for 100 Mbps 1 Gbps and 10 Gbps; The primary management port is eth0. You can use eth1 eth2 and eth3 as secondary management or event ports.
• USB ports: Two USB 3.0 Type A
• VGA ports: One 3-row 15-pin DB-15 connector; Enabled by default
• SFP ports: Two fixed SFP+ ports
• Supported SFP+: SFP-10G-SR (10 GB)
• Memory: 32 GB
• RDIMMs (Internal component only; not field replaceable): Two 16-GB DDR4-2400-MHz DIMMs
• CPU: One Intel Xeon 4110 processor
• Event storage space: 900 GB
• Maximum network map size (hosts/users): 50000/50000
• Maximum flow rate (flows per second): 5000 fps
• Network interfaces: 2 x 1 Gbps
• Secure boot: Yes
• Supports high availability: Yes
• System power: Two 770-W AC power supplies; Hot swappable and redundant as 1+1
• Power consumption: 2626 BTU/hr
• Storage: Ten 1.2 TB 10-K SAS HDDs RAID-1 hot swappable
• RAID controller: One; The chassis has a dedicated internal riser for a PCIe-style Cisco modular RAID controller card. Internal component only; not field replaceable
• Airflow: Front to back
• Operating temperature: 50 to 95°F (10 to 35°C)
