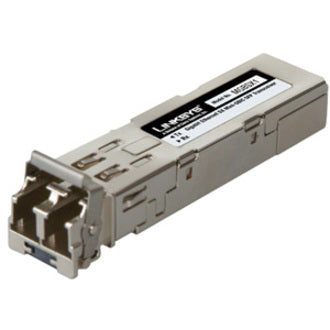

Cisco MGBSX1 - Gigabit Ethernet SX Mini-GBIC SFP Transceiver

Cisco MGBSX1 - Gigabit Ethernet SX Mini-GBIC SFP Transceiver

SKU: 1011053112      MFR: Cisco Systems Inc

GTIN: 745883558766

Product Description

Cisco MGBSX1 - Gigabit Ethernet SX Mini-GBIC SFP Transceiver - 1 x 1000Base-SX

Manufacturer : Cisco Systems Inc

Manufacturer Part No : MGBSX1

Features

  • Optical fiber cable compatible - Spans afar and provides speedy data transmission rates between servers and network components
  • With its thicker diameter to carry the light of multiple wavelengths multi-mode fiber optic cable supports the high bandwidth to carry more information with greater fidelity

Product Details

Product TypeSFP (mini-GBIC)
Fiber Optic Cable Standard62.5/125 µm
Maximum Data Transfer Rate1
Media Type SupportedOptical Fiber
Fiber Mode SupportedMulti-mode
Total Number of Ports1
Country of OriginChina
Connector TypeLC
Brand NameCisco
Compatibility
  • SR2024 - 24-Port 10/100/1000 Gigabit Switch
  • SR224G - 24-Port 10/100 + 1-Port Gigabit Switch + 1 MiniGBIC
  • SRW2016 - 16-Port 10/100/1000 Gigabit Switch with WebView
  • SRW2024 - 24-Port 10/100/1000 Gigabit Switch with WebView
  • SRW224 - 24-port 10/100 + 2-Port Gigabit Switch with WebView
ManufacturerCisco Systems Inc
Product ModelMGBSX1
Product NameMGBSX1 - Gigabit Ethernet SX Mini-GBIC SFP Transceiver
Application/UsageData Networking
Manufacturer Part NumberMGBSX1
Manufacturer Website Addresshttp://www.cisco.com
Marketing Information

This easy-to-install Mini-GBIC (or SFP) module provides a simple way to add Gigabit functionality to your Linksys switch. Gigabit fiber is often used to connect two switches together. The technology used depends on the distance between the two switches.The SX module uses 850 nanometer wavelength light in multimode fiber optic cables and can achieve distances up to 220 or 550 meters depending on the fiber used.
Maximum Distance Supported1804.46 ft
Interfaces/Ports Details1 x LC 1000Base-SX
Additional Information
  • Transmitter Spec: Power: -9.5 to -4 dBm
  • Reciever Spec: Sensitivity: -20 to -17dBm
  • Input Power: -20 to -17 dBm
  • Stress Sensitivity: 50/125 um: -13.5dBm 62.5/125 um: -12.5dBm
  • Wavelength: 850 nm (850nm TYP. 830-860nm) MMF

Modular Bandwidth for MMF:

  • 62.5/125um MMF at 160 MHz/km up to 220m
  • 62.5/125um MMF at 200 MHz/km up to 275m
  • 50/125um MMF at 400 MHz/km up to 500m
  • 50/125um MMF at 500 MHz/km up to 550m
Weight (Approximate)0.04 lb
View full details
$133.99 USD
$133.99
Sale Sold out

Dropship


Update


Shipping calculated at checkout.
