Features and Benefits

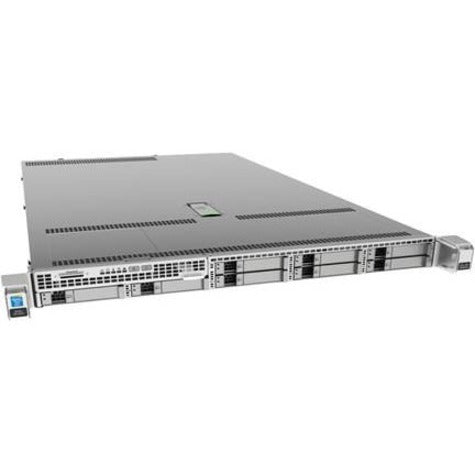

Built on best-in-class Cisco Unified Computing System™ (Cisco UCS®) C220 M4 Rack Server hardware the Cisco NetFlow Generation Appliance (NGA) enables flow visibility in high-throughput Gigabit Ethernet networks typical of most data centers and campus core deployments. Simplifying operational manageability the appliances can be deployed at key observation points such as the server access layer fabric path domains and Internet exchange points. Visibility is dramatically amplified when NGA is connected to multiple network devices allowing Layer 2 and Layer 3 flows to be analyzed hop by hop essential for security capacity planning and troubleshooting.

• Chassis: 1 rack unit (1RU)
• Processor: 2 Intel Xeon E5-2660v3 processors
• Memory: 64-GB (four 16-GB) industry-standard double-data-rate (DDR4) main memory
• Hard-disk drive: Two 1-TB SAS drives
• Monitoring ports: Four 10 Gigabit Ethernet Small Form-Factor Pluggable plus (SFP+) ports
• Management port: 10/100/1000 RJ-45
• Monitoring performance: Traffic monitoring throughput (sustained): 32+ Gbps; characterized based on typical traffic conditions simulated on the test bed
• Power supply: Redundant 770W
• Front-panel connector: One KVM console connector (supplies 2 USB 1 VGA and 1 serial connector)
• Front-panel locator LED: Indicator to help direct administrators to Cisco NGA in large data center environments
• Physical dimensions: 1RU H x W x D: 1.7 x 16.9 x 29.8 in. (4.32 x 43 x 75.6 cm); depth is without bezel or mounting hardware
• Temperature: Operating: 41 to 95°F (5 to 35°C) (operating sea level no fan fail no CPU throttling turbo mode)
• Temperature: Non operating: -40 to 149°F (-40 to 65°C)
• Humidity: Operating: 10 to 90 percent noncondensing
• Humidity: Non operating: 5 to 93 percent noncondensing
• Altitude: Operating: 0 to 10000 ft (0 to 3000m); maximum ambient temperature decreases by 1°C per 300m
• Altitude: Non operating: 0 to 40000 ft (12000m)
