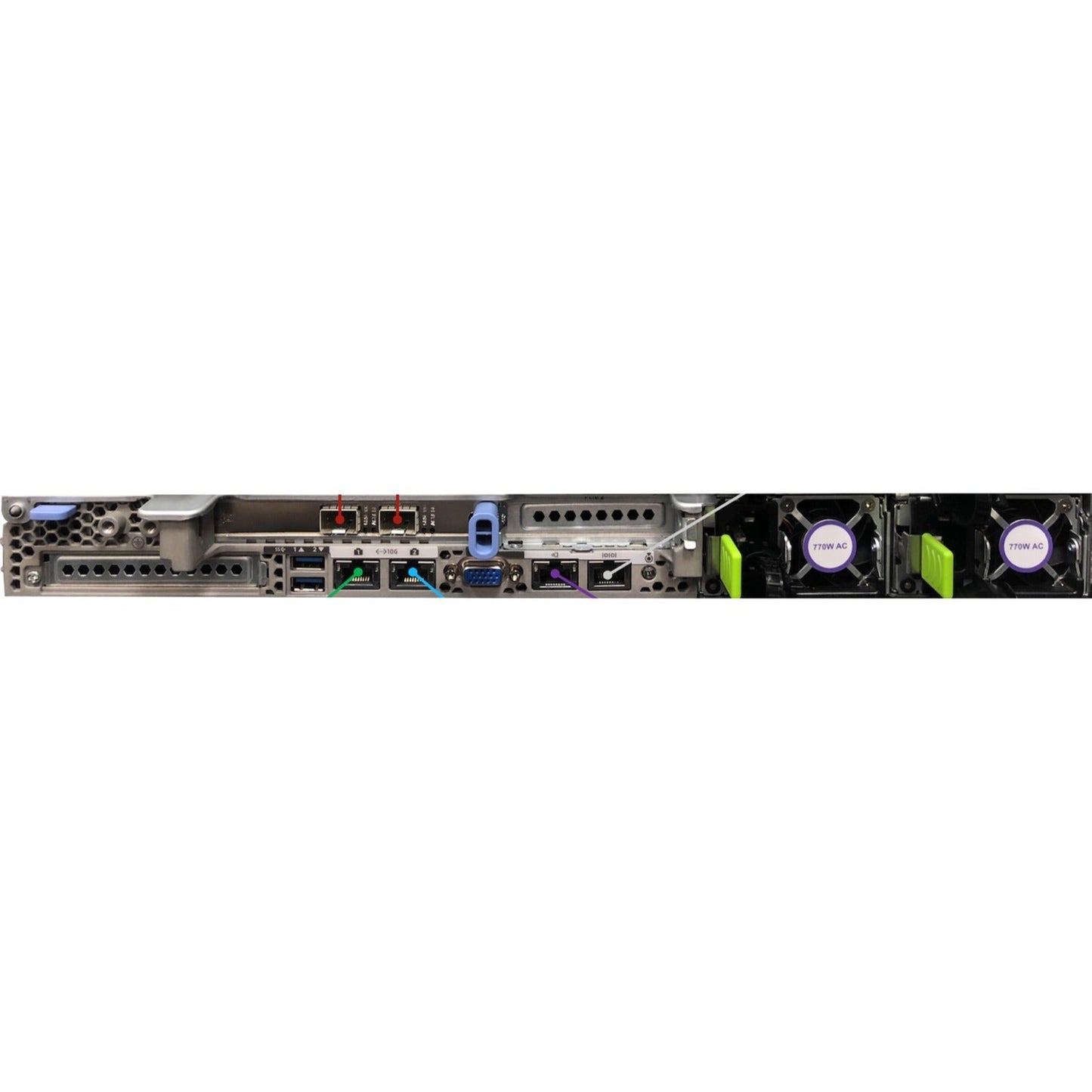

Cisco Stealthwatch 4210 Network Management Appliance

Cisco Stealthwatch 4210 Network Management Appliance

SKU: 1059291042      MFR: Cisco Systems Inc

Product Description

Cisco Stealthwatch 4210 Network Management Appliance

Manufacturer : Cisco Systems Inc

Manufacturer Part No : ST-FC4210-K9

Product Details

Product TypeNetwork Management Appliance
Country of OriginUnited States
Height1.7"
Width16.9"
Depth29.8"
Brand NameCisco
Form FactorRack-mountable
ManufacturerCisco Systems Inc
Product Model4210
Product NameStealthwatch 4210 Network Management Appliance
Product LineStealthwatch
Application/UsageNetwork Monitoring
Manufacturer Part NumberST-FC4210-K9
Manufacturer Website Addresshttp://www.cisco.com
Limited Warranty90 Day
Additional InformationUCS Platform: UCSC-C220-M5SX

Maximum Flows per Second (fps) (no Data Store deployed): 200000 fps

Maximum fps (Data Store deployed): 250000-500000 fps

Network/NIC:
  • CIMC management port: 1 - 100Mbps/1Gbps copper
    • Typically unused not required for Flow Collector operation.
  • Flow Collector management port: 1 - 100Mbps/1Gbps/10Gbps copper (default) or 1 - 10 Gbps SFP+ copper twinax cable (optional)
    • eth0 (port label "1")
    • Users connect to this port to access the WebUI for management.
    • This interface is also used to communicate to the Stealthwatch Management Console or the Data Store and to receive flow data.
    • Users deploying a Data Store can configure a 10 Gbps SFP+ DAC interface as eth0 for increased throughput. Users not deploying a Data Store can only configure the 100Mbps/1Gbps/10Gbps copper interface as eth0.
  • Additional collection port: 1 - 100Mbps/1Gbps/10Gbps copper
    • eth1 (port label "2")
    • This interface is typically used for environments where a second network must be monitored and requires a separate physical interface to receive flow data.
    • You can configure this port to be a dedicated interface (ingress only) for receiving NetFlow traffic.
  • Reserved ports: 2
    • eth2 and eth3 are unused and unsupported
Processor: 2 @ 2.1 GHz 6130/125W 16C/22MB Cache/DDR4 2666MHz

Memory: 32 GB DDR4 (16x) - 512GB total

Flow Storage: 4 TB RAID 6 Redundant

Addressable Storage: 7.2TB

RAID Cache: 4 GB

Rack Units: 1U

Power:
  • Redundant: 770W AC 50/60
  • Auto Ranging (100v to 240V)
Humidity (Relative):
  • Operating: 10% to 90%
  • Storage: 5% to 93%
Altitude:
  • Operating: 0 feet to 10000 feet (0 meters to 3048 meters)
  • Storage: 0 feet to 40000 feet (0 meters to 12192 meters)
Heat Dissipation: 1741.13 BTU per hour maximum (estimated)

Temperature:
  • Operating: 41° F to 95° F (5° C to 35° C)
  • Derate the maximum temperature by 1°C for every 305 meters of altitude above sea level.
  • Storage: -40° F to 149° F (-40° C to 65° C)
Weight (Approximate)37.90 lb
Product FamilyStealthwatch
