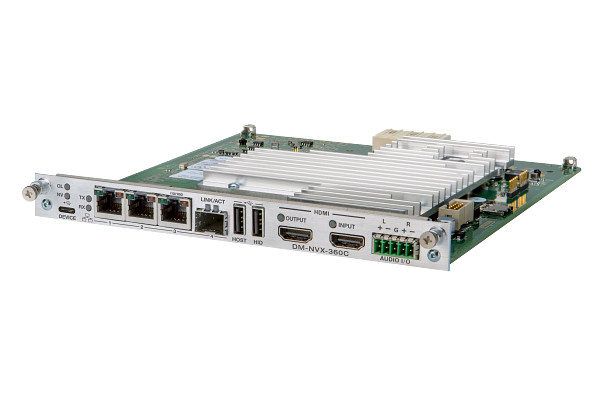

Crestron DM NVX 4K60 4:4:4 HDR Network AV Encoder/Decoder Card - A reliable, high‑performance AV over IP encoder or decoder that transports 4K60 4:4:4 video over standard Gigabit Ethernet with no perceptible latency or loss of quality. Occupies a rack‑mountable card frame. Supports HDR (High Dynamic Range) and HDCP 2.3 with built‑in scaling and video wall processing, adaptive bit rate, AES67 transmit and receive capability, USB and KVM routing, and fiber connectivity. Provides a secure, scalable 4K signal routing solution for enterprise and campus‑wide content distribution applications.

Manufacturer Part No :6511007

Features

• 4K60 4:4:4 video over standard Gigabit Ethernet
• HDR10, HDR10+, and Dolby Vision® video support
• Real-time video performance over the network
• Pixel Perfect Processing technology
• Enterprise-grade security including 802.1X, Active Directory® credential management, TLS, and AES-128
• HDCP 2.3 compliant
• Configurable as an encoder or decoder
• One HDMI® input
• One HDMI output with 4K60 4:4:4 scaler
• Video wall processing
• Dynamic text overlay
• Image preview
• Background image for on-screen display
• Test pattern generator
• Fixed, adaptive, or variable bit rate
• Analog audio embedding or de-embedding
• 7.1 surround sound audio
• AES67 audio embedding and de-embedding
• Breakaway audio
• USB 2.0 and KVM signal extension and routing
• Copper and fiber Ethernet connectivity
• Network port selection
• Automatic point-to-point connectivity
• CEC device control
• Easy setup via built-in web pages
• Interoperable with a Crestron 3-Series® or later control system
• Streamlined management using DM NVX Director® virtual switching appliances
• .AV Framework™ technology support
• XiO Cloud® service support
• Crestron Home™ OS support
• API for full control of the DM-NVX-360
• Designed for installation into a DMF-CI-8 chassis
