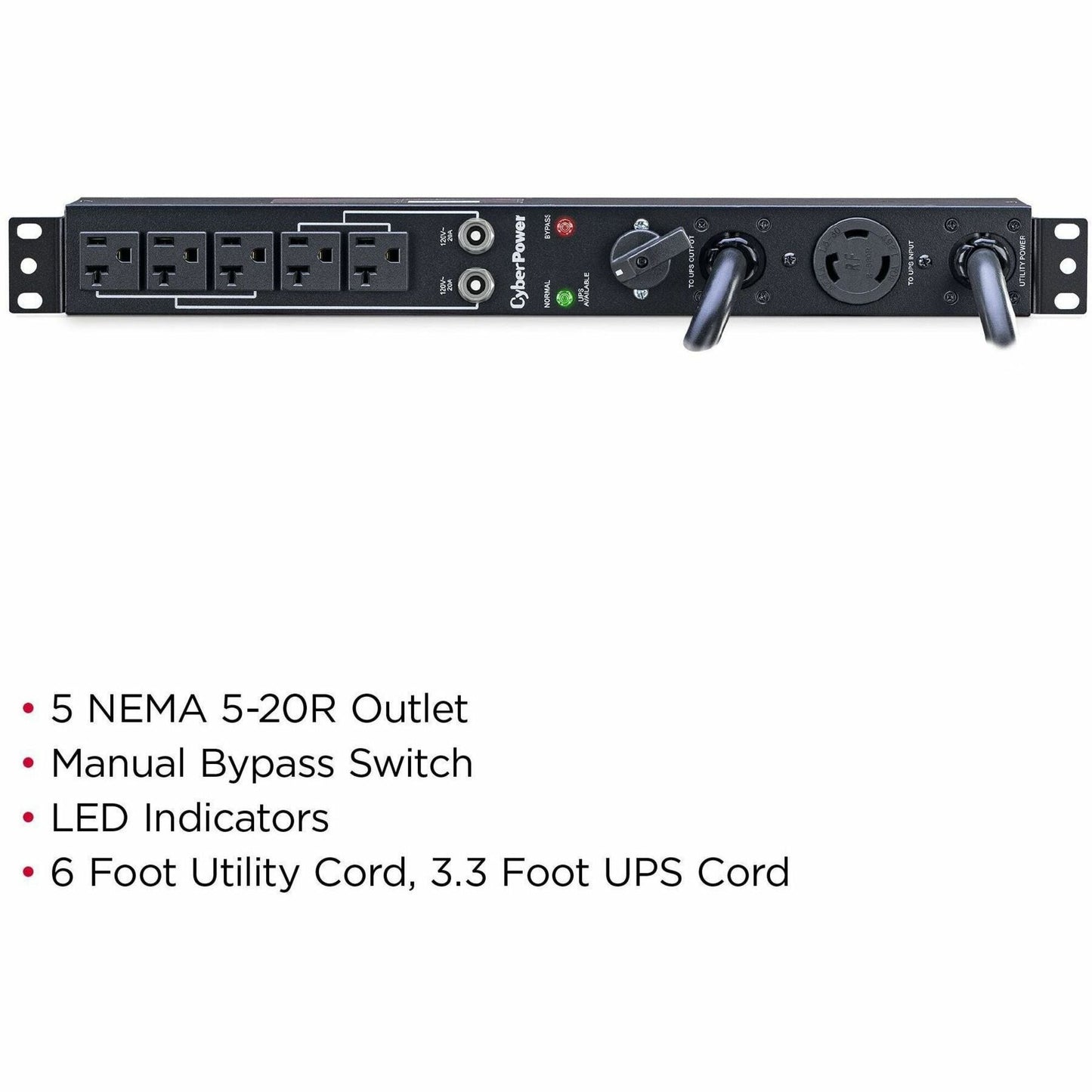

CyberPower MBP30A5 120 VAC 30A Maintenance Bypass PDU

CyberPower MBP30A5 120 VAC 30A Maintenance Bypass PDU

SKU: 1032116408      MFR: CyberPower Systems Inc

GTIN: 649532616596

Product Description

CyberPower MBP30A5 120 VAC 30A Maintenance Bypass PDU - 5 Outlets 6 ft 2 x NEMA L5-30P Horizontal 1U 3YR Warranty

Manufacturer : CyberPower Systems Inc

Manufacturer Part No : MBP30A5

Features

  • Maintenance Bypass PDU: Normal mode Bypass mode
  • Amps: 30A (Derated to 24A)
  • Volts: 100 - 120 VAC
  • Input plugs: 2 NEMA L5-30P plugs (utility UPS output)
  • Total outlets: 5 NEMA 5-20R
  • Power cords: 6-ft. utility cord 3.3-ft. UPS cord
  • LED indicators: Normal (Green) Bypass (Red)
  • Size: 1U Rackmount
  • Dimensions (in.): 17.0W x 2.0H x 3.0D
  • UPS mounting hardware: Yes

Product Details

Product TypePDU
PhaseSingle Phase
Receptacle TypeNEMA 5-20R
Environmentally FriendlyYes
Environmental CertificationRoHS
Energy StarNo
PDU TypeHot-swappable
Product ColorBlack
Receptacle Detail5 x NEMA 5-20R
Plug/Connector Detail2 x NEMA L5-30R
Country of OriginChina
Cord Length6 ft
Height2"
Width17"
Depth3"
Certifications & Standards
  • UL60950_1
  • cUL
Product SeriesMaintenance Bypass
Rack Height1U
Brand NameCyberPower
Plug/Connector TypeNEMA L5-30R
Input Voltage Range100 V AC - 120 V AC
Input Current30 A
ManufacturerCyberPower Systems Inc
Product ModelMBP30A5
Product NameMaintenance Bypass MBP30A5
Mount TypeRack-mountable
Input Voltage120 V AC
Manufacturer Part NumberMBP30A5
Manufacturer Website Addresshttp://www.cyberpowersystems.com
Marketing Information

The CyberPower MBP30A5 a 5-outlet (rear) 1U Maintenance Bypass Power Distribution Unit (MBP PDU) provides 100-120 VAC 30A output (derated to 24A) to 5 NEMA 5-20R receptacles. Designed for datacenters and other electrically demanding applications the MBP30A5 allows the seamless transfer of an electrical load from UPS power to utility power for uninterrupted operation of connected equipment when performing maintenance replacing batteries or installing a new UPS.

A 6-foot AC cord connects to utility power; a 3.3-foot AC cord connects to the output power of the UPS. The UPS draws input power from the MBP30A5 through a dedicated NEMA L5-30R separate from the outlets for connected devices. When the switch on the front of the MBP30A5 is turned from Normal to Bypass or from Bypass to Normal the power that the MBP supplies to connected devices moves from one input power source to another. The LED display indicates which power source is active.

Rugged industrial-grade metal housing protects the MBP30A5. With a 1U form factor this PDU can be mounted in a standard server rack. Its mounting hardware also enables it to be connected to a UPS for tower configurations. The MBP30A5 is UL and RoHS compliant. A three-year limited warranty covers the PDU for three years and connected equipment for as long as you own the product.

Power Distribution
Delivers AC power to servers equipment and connected devices via a power distribution unit.

Maintenance Bypass
Qualified personnel can use the bypass feature to disconnect the PDU from the UPS without disrupting power to connected equipment. This feature allows connected equipment to operate seamlessly during maintenance periods battery replacement or UPS installation.

Manual Bypass Switch
When the Manual Bypass Switch is turned to Normal connected equipment is supplied by UPS output. When the Manual Bypass Switch is turned to Bypass connected equipment is supplied by utility power.

Network-Grade Plugs and Outlets
Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers equipment and connected devices.

1U Form Factor & Mounting Hardware
The 1U form factor is made to be mounted in a standard server rack. Mounting hardware allows the PDU to be connected to a UPS for tower configurations.

Durable Metal Housing
Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.

Three-Year Limited Warranty
Covers defects in materials and workmanship in the product under normal use and conditions. See warranty for details.

What's In The Box

PDU 6-ft. utility cord 3.3-ft. UPS cord 2 Rackmount Brackets 4 Flat Head Screws M4X8L 4 Pan Head Screws M5X12L User Manual Registration Card
Package Contents
  • Maintenance Bypass MBP30A5
  • 6-ft. utility cord
  • 3.3-ft. UPS cord
  • 2 x Rackmount Brackets
  • 4 x Flat Head Screws M4X8L
  • 4 x Pan Head Screws M5X12L
  • User Manual
  • Registration Card
Limited Warranty3 Year
Additional Information
  • Operating Relative Humidity | 0% - 90% non-condensing
  • Operating Temperature | 32°F to 104°F / 0°C to 40°C
  • UPS Cord Length | 3.3 ft.
  • Enclosure Construction | Steel
Output Voltage120 V AC
Weight (Approximate)5.90 lb
Product FamilyMaintenance Bypass
