CyberPower Smart App Online:

• OL5KRTHD
• OL6KRTHD

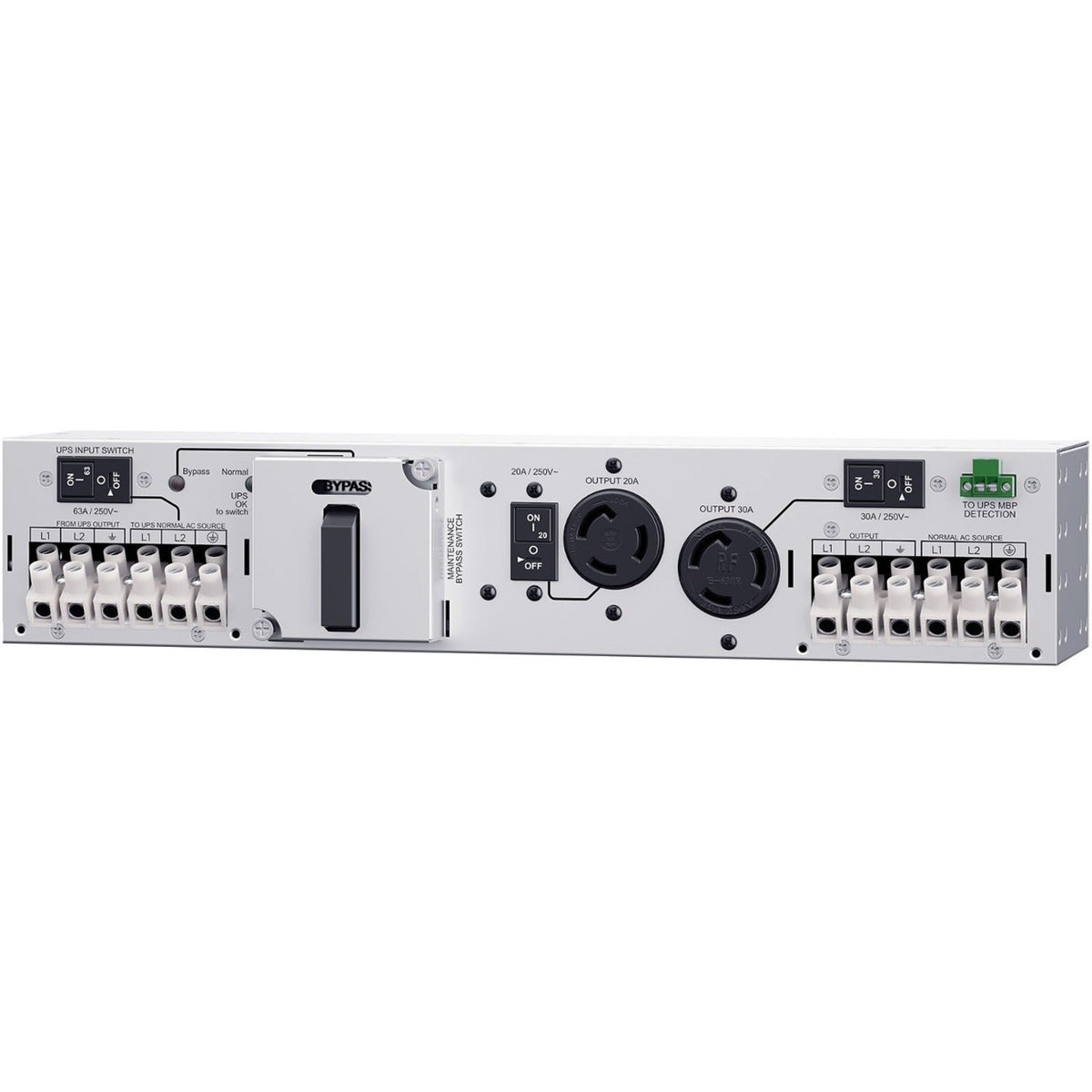

Designed for datacenters and other electrically demanding applications the CyberPower MBP63A2 Maintenance Bypass Power Distribution Unit (MBP PDU) allows the seamless transfer of an electrical load from UPS power to utility power for uninterrupted operation of connected equipment when performing maintenance replacing batteries or installing a new UPS. The MBP63A2 provides 208V nominal output to (1) NEMA L6-20R (1) NEMA L6-30R and (1) Hardwire Terminal Block receptacle.

Depending on UPS model either a 3.3-foot AC cord or hardwire terminal block connects to the output power of the UPS. The UPS draws input power from the MBP63A2 separate from the outlets or terminal block for connected devices. When the switch on the front of the MBP63A2 is turned from Normal to Bypass or from Bypass to Normal the power that the MBP supplies to connected devices moves from one input power source to another. The LED display indicates which power source is active.

Rugged industrial-grade metal housing protects the MBP63A2. With a 2U form factor this PDU can be mounted horizontally or vertically in a standard server rack on a wall or in a tower configuration. The MBP63A2 is UL and RoHS compliant. A three-year limited warranty covers the PDU.

• MBP63A2 3-Outlet PDU
• UPS Mounting Hardware

• Inlet To UPS Input: (1) Terminal Block
• Inlet To UPS Output: (1) Terminal Block
• Inlet To Utility Power: (1) Terminal Block
• Management Cable: MBP Detection Cable 3.3 ft.
• Material of Construction: Metal
• Operating Relative Humidity: 0 - 90 % (non-condensing)
• Operating Temperature: 32 - 104 °F (0 - 40 °C)
