• UL1778
• CSA C22.2 NO.107.3-05
• FCC DOC Class A

• Power On (White)
• Line Mode (Green)
• Battery Mode (Yellow)
• Bypass Mode (Yellow)
• Fault (Red)
• Replace Battery (Red)

Prevent business interruptions and safeguard mission-critical enterprise network equipment.

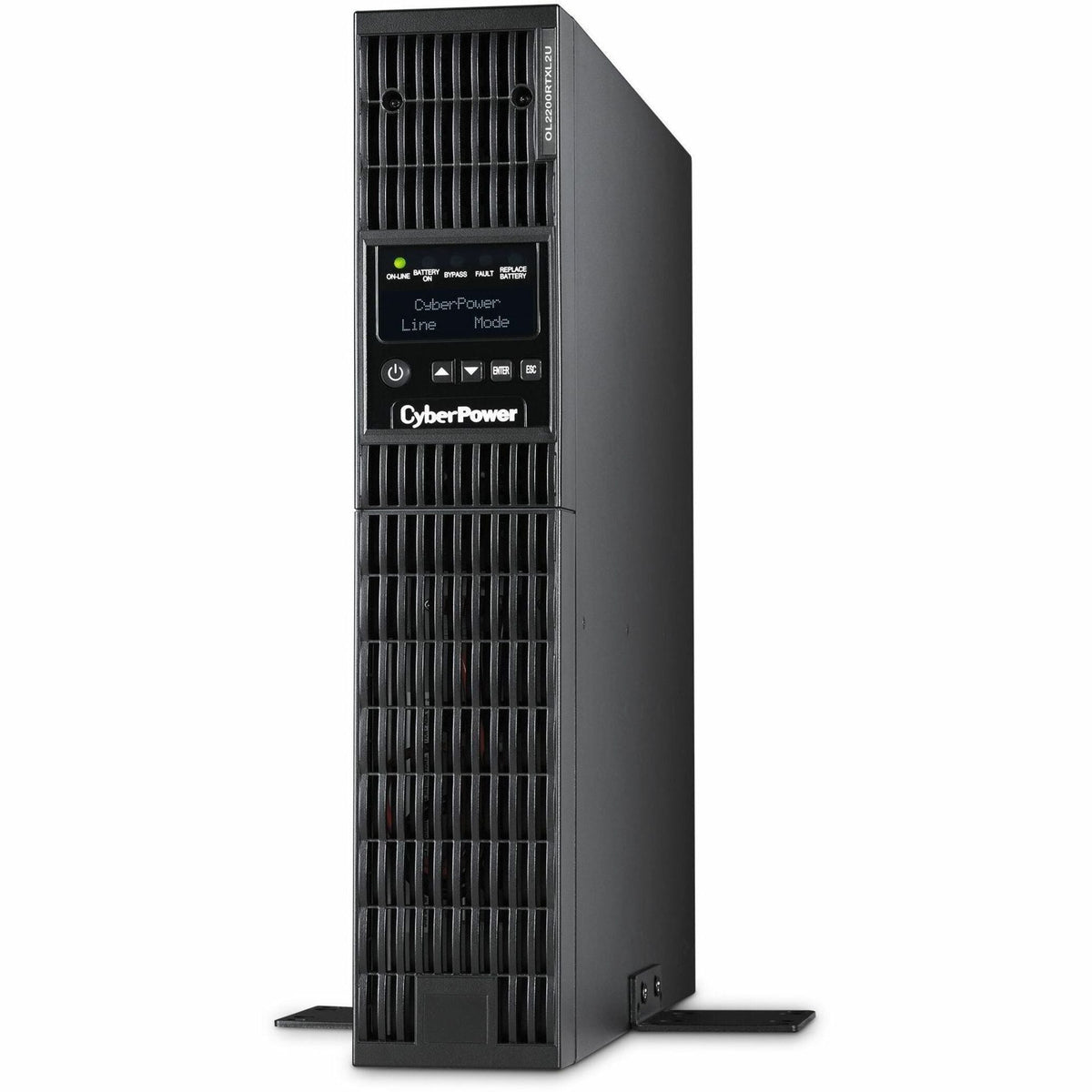

The CyberPower OL2200RTXL2U is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel Smart Battery Management charging technology and energy-saving GreenPower UPS™ ECO Mode.

The OL2200RTXL2U offers generator compatibility and delivers clean AC power with zero transfer time. Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.

With a $400000 lifetime connected equipment guarantee and a three-year warranty you can trust CyberPower's commitment to high quality.

• Smart App Online OL2200RTXL2U 2200VA 100-125V Sine Wave LCD Rack/Tower UPS
• User Manual
• Registration card
• 2 x Rackmount rails
• 2 x Hanging brackets
• 2 xRackmount ears
• USB communication cable
• Serial interface cable (RS-232)
• 8 x M5X7L black flat head screws
• 12 x M5X12L black pan head screws
• 6 x M5X6L silver pan head screws
• 8 x Plastic washers
• 12 x Screw hole dust covers
• 12 x Rubber pads
• Software download card

• Replacement Battery Cartridge Quantity: 1
• Smart Battery Management (SBM) Mode: Yes
• Circuit Breaker: 20A
• Cold Start: Yes
• Input Power Factor: 0.99
• Input Voltage Range: 60 VAC - 69 VAC for 0-60% Load
• Crest Factor: 3:1
• ECO Mode Voltage Regulation: ±10% ±15% (Configurable)
• Harmonic Distortion: < 3% at Linear Load
• On Battery Frequency: 50/60 Hz ± 0.25Hz (auto-sensing or configurable)
• Output Power Factor: 0.82
• Overload Protection: Line Mode: 105% ~ 125% Load - 1 min
• Short Circuit Protection: UPS Output Cut Off Immediately or Input Fuse / Circuit Breaker Protection
• VA by Input Type: 2200 (2.2 kVA) at 120 125 V input
• Watts by Input Type: 1800 (1.8 kW) at 120 125 V input
• Phone / Network Protection RJ11/RJ45: 1-In / 1-Out (Combo)
• Dry Contacts: Yes
• Expansion Slot: Yes - with optional RMCARD205 or RELAYIO500
• LCD: Multifunction LCD
• LED Indicators: Power On (White)
• Management Cable: USB Cable
• Removable LCD Control Panel Option: Yes - Requires DB26 cable (not included)
• Rotatable LCD Control Panel Option: Yes
• Serial Port: 1 Serial
• Upgradeable firmware: Yes
• Material of Construction: Metal
• Mounting Hardware: Yes
• ECO Mode Thermal Dissipation: 249 BTU/hr
• Operating Elevation: 0 - 10000 ft (0 - 3048 m)
• Operating Relative Humidity: 0 - 90 % (non-condensing)
• Operating Temperature: 32 - 104 °F (0 - 40 °C)
• Storage Elevation: 0 - 50000 ft (0 - 15239 m)
