Prevent business interruptions and safeguard mission-critical enterprise network equipment.

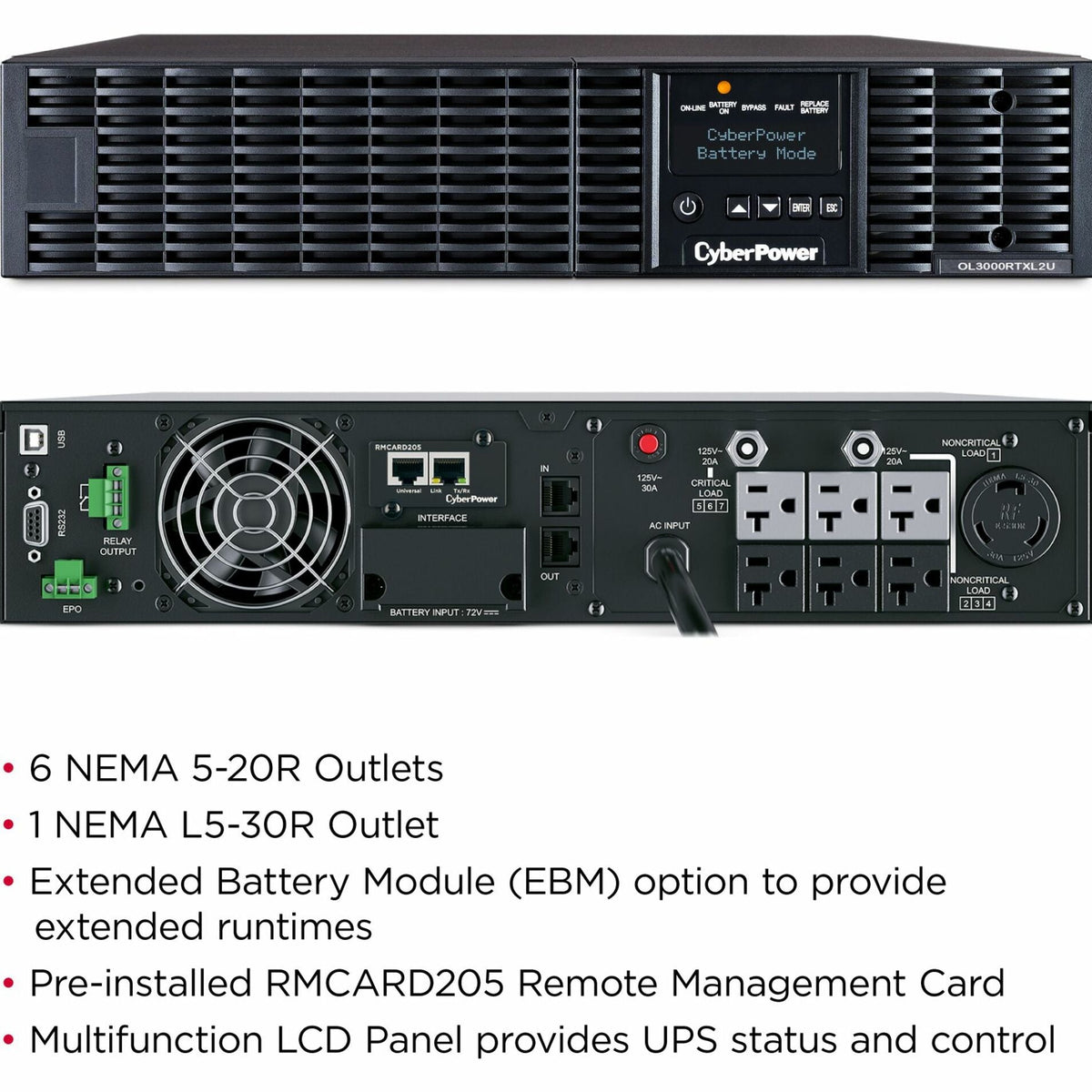

The CyberPower OL3000RTXL2UN is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel Smart Battery Management charging technology and energy-saving GreenPower UPS™ ECO Mode.

The OL3000RTXL2UN offers generator compatibility and delivers clean AC power with zero transfer time. A factory installed RM card allows remote management and configuration of the UPS via a standard web browser command line interface (CLI) or network management system (NMS). Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.

With a $400000 lifetime connected equipment guarantee and a three-year warranty you can trust CyberPower's commitment to high quality.

More from the Manufacturer

• Smart App Online OL3000RMXL2U 3000VA Rack/Tower UPS
• User Manual
• Registration Card
• 2 x Rackmount Rails
• 2 x Rackmount Ears
• 2 x Hanging Brackets
• Phone Line
• USB Communication Cable
• Serial Interface Cable (RS-232)
• 8 x M5X7L Black Flat Head Screws
• 12 x M5X12L Black Pan Head Screws
• 6 x M5X6l Silver Pan Head Screws
• 8 x Plastic Washers
• 12 x Screw Hole Dust Covers
• 12 x Rubber Pads
• Software Download Card

UL 1778

• Power On (White)
• Line Mode (Green)
• Battery Mode (Yellow)
• Bypass Mode (Yellow)
• Fault (Red)
• Replace Battery (Red)

• Replacement Battery Cartridge Quantity: 1
• Smart Battery Management (SBM) Mode: Yes
• Circuit Breaker: 30A
• Cold Start: Yes
• Input Power Factor: 0.99
• Input Voltage Range: 60 VAC - 69 VAC for 0-60% Load
• Crest Factor: 3:1
• ECO Mode Voltage Regulation: ±10% ±15% (Configurable)
• Harmonic Distortion: < 3% at Linear Load
• Nominal Output Voltage: 100 - 125 VAC
• On Battery Frequency: 50/60 Hz ± 0.25Hz (auto-sensing or configurable)
• Output Power Factor: 0.9
• Overload Protection: Line Mode: 105% ~ 125% Load - 1 min
• Short Circuit Protection: UPS Output Cut Off Immediately or Input Fuse / Circuit Breaker Protection
• VA by Input Type: 3000 (3.0 kVA) at 120 125 V input
• Watts by Input Type: 2700 (2.7 kW) at 120 125 V input
• Phone / Network Protection RJ11/RJ45: 1-In / 1-Out (Combo)
• Audible Alarms: Battery Mode
• Dry Contacts: Yes
• Expansion Slot: Yes - RMCARD205 pre-installed
• HID Compliant USB Port: Yes
• LCD: Multifunction LCD
• Management Cable: USB Cable
• Removable LCD Control Panel Option: Yes - Requires DB26 cable (not included)
• Rotatable LCD Control Panel Option: Yes
• Upgradeable firmware: Yes
• Material of Construction: Metal
• Mounting Hardware: Yes
• Audible noise at 1m from surface of unit: 38 dBA to 55 dBA (0 to 100% load)
• ECO Mode Thermal Dissipation: 364 BTU/hr
• Operating Relative Humidity: 0 - 90 % (non-condensing)
• Operating Temperature: 32 - 104 °F (0 - 40 °C)
• Storage Relative Humidity: 0 - 95% (non-condensing)
