• CyberPower PDU20MV20F 100 - 125 VAC 20A Metered PDU

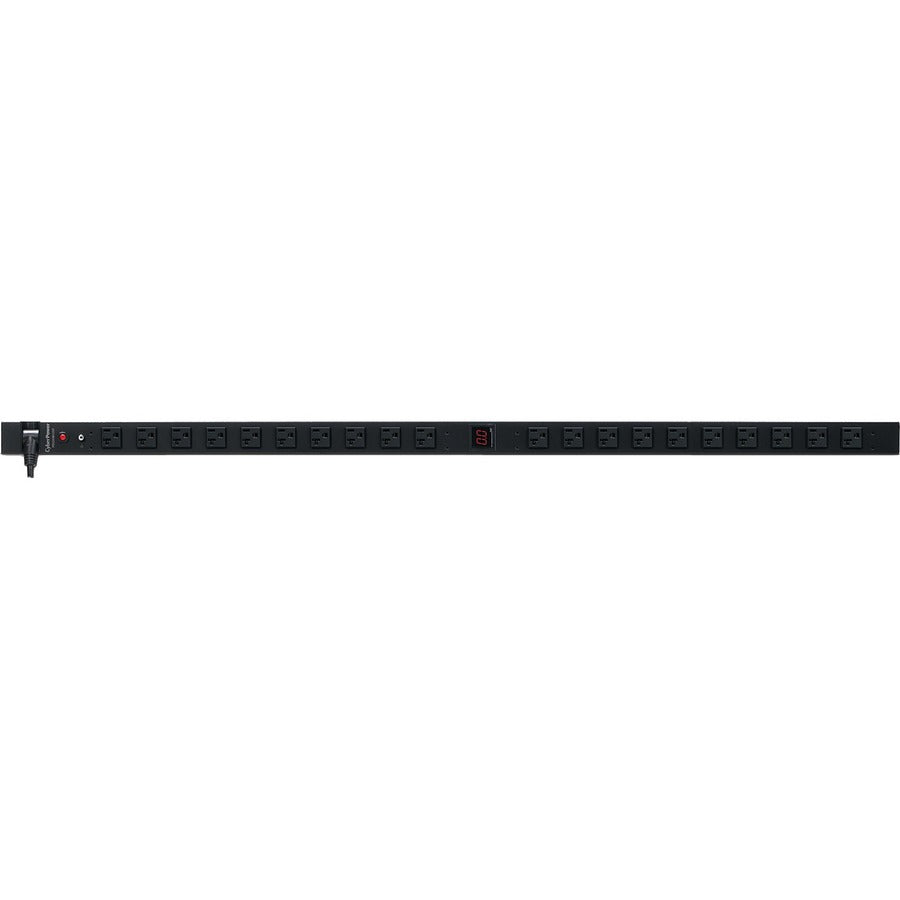

    CyberPower PDU20MV20F 100 - 125 VAC 20A Metered PDU
1 1

CyberPower PDU20MV20F 100 - 125 VAC 20A Metered PDU

CyberPower PDU20MV20F 100 - 125 VAC 20A Metered PDU

SKU: 1016534775      MFR: CyberPower Systems Inc

GTIN: 649532901159

Product Description

CyberPower PDU20MV20F 100 - 125 VAC 20A Metered PDU - 20 Outlets 10 ft NEMA 5-20P Vertical 0U Lifetime Warranty

Manufacturer : CyberPower Systems Inc

Manufacturer Part No : PDU20MV20F

Features

  • Metered PDU
  • 20 NEMA 5-20R (20 Front) output receptacles
  • 120V AC - 50/60Hz - 20-amp electrical capacity with circuit breaker
  • 48 inch 0U Vertical Rack Mount - Rugged industrial metal housing

Product Details

Product TypePDU
PhaseSingle Phase
Receptacle TypeNEMA 5-20R
Product FamilyMetered PDU
Energy StarNo
PDU TypeMetered
Mounting OrientationVertical
Brand NameCyberPower
Plug/Connector TypeNEMA 5-20P
Input Voltage Range100 V AC - 125 V AC
Input Current20 A
Protection TypeOverload Protection
Input Voltage120 V AC
Environmentally FriendlyYes
Environmental CertificationRoHS
Output Voltage Range100 V AC - 125 V AC
Receptacle Detail20 x NEMA 5-20R
Country of OriginChina
Height48"
Width1.8"
Depth2.3"
Product SeriesMetered PDU
ManufacturerCyberPower Systems Inc
Product ModelPDU20MV20F
Product NamePDU20MV20F 20-Outlets PDU
Mount TypeRack-mountable
Manufacturer Part NumberPDU20MV20F
Manufacturer Website Addresshttp://www.cyberpowersystems.com
Marketing Information

The CyberPower PDU20MV20F a 20-outlet (front) 0U vertical rackmount metered power distribution unit (PDU) provides 100 - 125 V 20A output. It distributes power to 20 NEMA 5-20R receptacles from a single NEMA 5-20P plug with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring.

Designed for datacenters and other electrically demanding applications the PDU20MV20F has rugged industrial-grade metal housing and a 10-foot AC power cord. It supports vertical horizontal and wall mount installation. The PDU20MV20F comes with a cord retention tray and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.

Power Distribution
Delivers AC power to servers equipment and connected devices via a power distribution unit.

Switch-Free Design
Safeguards against accidental power shutdown.

Network-Grade Plugs and Outlets
Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers equipment and connected devices.

Long Input Power Cord
Reaches distant power sources allowing the PDU to be placed where it's needed.

Cord Retention Tray
Secures power cords keeping them organized and accessible. Helps cords stay plugged in.

Configurable Mounting Brackets
Allow for installation of the PDU in the following configurations: 0U (vertical under counter and wall mount) 1U (horizontal vertical under counter and wall mount) and 2U (horizontal and wall mount).

Durable Metal Housing
Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.

Limited Lifetime Warranty
Covers defects in materials and workmanship in the product under normal use and conditions. See warranty for details.

What's In The Box

PDU Cord Retention Tray User Manual Screw Kit Cord Clip Kit Horizontal Mounting Brackets Vertical Mounting Brackets Product Registration Card
Package Contents
  • PDU20MV20F 20-Outlets PDU
  • Cord Retention Tray
  • User Manual
  • Screw Kit
  • Cord Clip Kit
  • Horizontal Mounting Brackets
  • Vertical Mounting Brackets
  • Product Registration Card
Limited WarrantyLifetime
Weight (Approximate)9 lb
View full details
