• CyberPower PDU20SWHVIEC10ATNET 200 - 240 VAC 20A Switched ATS PDU
    CyberPower PDU20SWHVIEC10ATNET 200 - 240 VAC 20A Switched ATS PDU
  • CyberPower PDU20SWHVIEC10ATNET 200 - 240 VAC 20A Switched ATS PDU
1 2

CyberPower PDU20SWHVIEC10ATNET 200 - 240 VAC 20A Switched ATS PDU

CyberPower PDU20SWHVIEC10ATNET 200 - 240 VAC 20A Switched ATS PDU

SKU: 1029268060      MFR: CyberPower Systems Inc

GTIN: 649532610846

Product Description

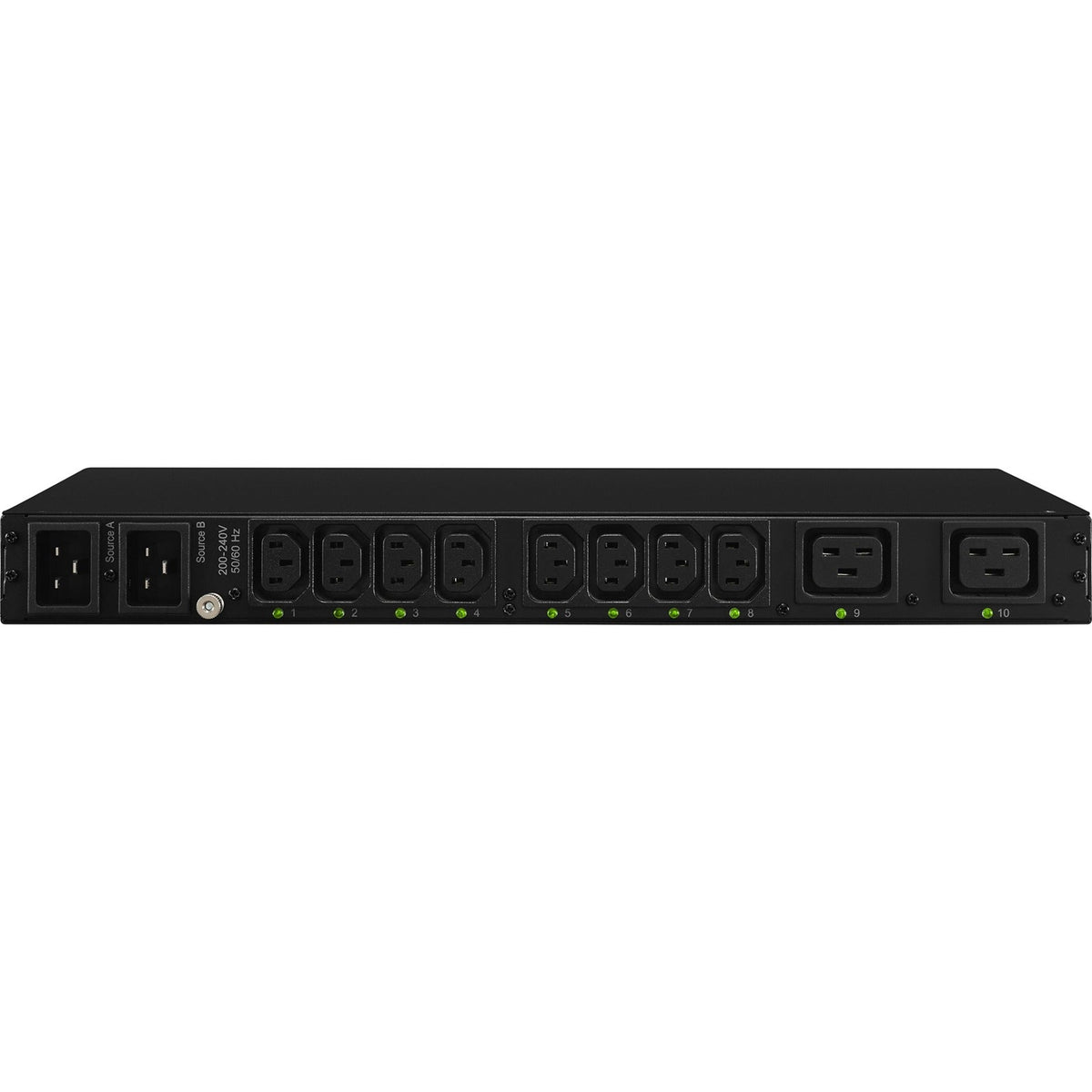

CyberPower PDU20SWHVIEC10ATNET 200 - 240 VAC 20A Switched ATS PDU - 10 Outlets 10 ft 2 x IEC-320 C20 Horizontal 1U LCD 3YR Warranty

Manufacturer : CyberPower Systems Inc

Manufacturer Part No : PDU20SWHVIEC10ATNET

Features

  • 200V - 240V 20A Switched ATS PDU with 8 IEC-320 C13 outlets 2 IEC-320 C19 outlets and dual IEC-320 C20 20A high-voltage input connections
  • Switched Automatic Transfer Switching (ATS) PDU to provide a redundant input power option
  • Digital Display (Load Voltage and KW) for on-site monitoring of total PDU load
  • SNMP/HTTP Network Interface for real-time outlet control monitoring and event logging of the Switched ATS PDU

Product Details

Product TypePDU
Receptacle TypeIEC 60320 C13
Product FamilySwitched ATS PDU
PDU TypeSwitched
Cord Length10 ft
Rack Height1U
Brand NameCyberPower
Plug/Connector TypeIEC 60320 C20
Input Current20 A
Input Voltage230 V AC
Output Voltage230 V AC
Height1.8"
Width17.1"
Depth9.3"
Product SeriesSwitched ATS PDU
Management
  • Automatic Transfer Switch (ATS)
  • SNMP/HTTP
ManufacturerCyberPower Systems Inc
Product ModelPDU20SWHVIEC10ATNET
Product NamePDU20SWHVIEC10ATNET Switched ATS PDU 200-240V 20A 1U 10-Outlets (2) IEC C20
Mount TypeRack-mountable
Manufacturer Part NumberPDU20SWHVIEC10ATNET
Manufacturer Website Addresshttp://www.cyberpowersystems.com
Marketing InformationThe CyberPower PDU20SWHVIEC10ATNET 10-outlet 1U rack mount switched auto transfer switch (ATS) PDU provides 200-240V/20A output. The PDU distributes power to 10 IEC 8-C13/2-C14 receptacles from redundant IEC-320 C20 plugs. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded equipment. If there is a power failure or an under/over voltage the PDU will switch to the secondary power source to insure continuous operation.

The PDU includes a RMCARD203 SNMP card. With the SNMP card and an IP address on the network interface users have real-time monitoring and outlet control of the ATS PDU including event notifications.

The LCD provides local monitoring of voltage and amperage of the PDU and on/off control of the outlets.

The unit has a rugged industrial-grade metal housing and 10-foot AC power cords. It can be mounted horizontally includes a cord retention tray and is UL60950_1 & FCC Class A certified. A three-year warranty is standard.
Package Contents
  • PDU20SWHVIEC10ATNET Switched ATS PDU 200-240V 20A 1U 10-Outlets (2) IEC C20
  • RMCARD203 SNMP Card
  • 1 x Mounting Brackets Set
  • Cord Retention Tray
  • Cord Organizers
  • User Manual
Limited Warranty3 Year
Weight (Approximate)8.38 lb
Country of OriginChina
Plug/Connector Detail2 x IEC 60320 C20
Receptacle Detail2 x IEC 60320 C19
Environmental CertificationRoHS
Environmentally FriendlyYes
Receptacle TypeIEC 60320 C19
Additional Information
  • Phase: Single Phase
  • Frequency: 50/60 Hz
  • LCD Displays: Amperage Voltage KW Network Information and Hardware/LCD Firmware
  • LED Indicators: Input Output Load Tx/Rx LINK Outlets
  • Upgradeable Firmware: Yes - SNMP HW and LCD
Certifications & Standards
  • UL60950-1 Certified by ETL (USA)
  • CSA C22.2(Canada)
  • FCC Class A
View full details
$918.99 USD
$918.99
Sale Sold out

Out Of Stock


Update


Shipping calculated at checkout.

CyberPower PDU20SWHVIEC10ATNET 200 - 240 VAC 20A Switched ATS PDU - 10 Outlets 10 ft 2 x IEC-320 C20 Horizontal 1U LCD 3YR Warranty

Manufacturer : CyberPower Systems Inc

Manufacturer Part No : PDU20SWHVIEC10ATNET

Features

  • 200V - 240V 20A Switched ATS PDU with 8 IEC-320 C13 outlets 2 IEC-320 C19 outlets and dual IEC-320 C20 20A high-voltage input connections
  • Switched Automatic Transfer Switching (ATS) PDU to provide a redundant input power option
  • Digital Display (Load Voltage and KW) for on-site monitoring of total PDU load
  • SNMP/HTTP Network Interface for real-time outlet control monitoring and event logging of the Switched ATS PDU

Product Details

Product TypePDU
Receptacle TypeIEC 60320 C13
Product FamilySwitched ATS PDU
PDU TypeSwitched
Cord Length10 ft
Rack Height1U
Brand NameCyberPower
Plug/Connector TypeIEC 60320 C20
Input Current20 A
Input Voltage230 V AC
Output Voltage230 V AC
Height1.8"
Width17.1"
Depth9.3"
Product SeriesSwitched ATS PDU
Management
  • Automatic Transfer Switch (ATS)
  • SNMP/HTTP
ManufacturerCyberPower Systems Inc
Product ModelPDU20SWHVIEC10ATNET
Product NamePDU20SWHVIEC10ATNET Switched ATS PDU 200-240V 20A 1U 10-Outlets (2) IEC C20
Mount TypeRack-mountable
Manufacturer Part NumberPDU20SWHVIEC10ATNET
Manufacturer Website Addresshttp://www.cyberpowersystems.com
Marketing InformationThe CyberPower PDU20SWHVIEC10ATNET 10-outlet 1U rack mount switched auto transfer switch (ATS) PDU provides 200-240V/20A output. The PDU distributes power to 10 IEC 8-C13/2-C14 receptacles from redundant IEC-320 C20 plugs. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded equipment. If there is a power failure or an under/over voltage the PDU will switch to the secondary power source to insure continuous operation.

The PDU includes a RMCARD203 SNMP card. With the SNMP card and an IP address on the network interface users have real-time monitoring and outlet control of the ATS PDU including event notifications.

The LCD provides local monitoring of voltage and amperage of the PDU and on/off control of the outlets.

The unit has a rugged industrial-grade metal housing and 10-foot AC power cords. It can be mounted horizontally includes a cord retention tray and is UL60950_1 & FCC Class A certified. A three-year warranty is standard.
Package Contents
  • PDU20SWHVIEC10ATNET Switched ATS PDU 200-240V 20A 1U 10-Outlets (2) IEC C20
  • RMCARD203 SNMP Card
  • 1 x Mounting Brackets Set
  • Cord Retention Tray
  • Cord Organizers
  • User Manual
Limited Warranty3 Year
Weight (Approximate)8.38 lb
Country of OriginChina
Plug/Connector Detail2 x IEC 60320 C20
Receptacle Detail2 x IEC 60320 C19
Environmental CertificationRoHS
Environmentally FriendlyYes
Receptacle TypeIEC 60320 C19
Additional Information
  • Phase: Single Phase
  • Frequency: 50/60 Hz
  • LCD Displays: Amperage Voltage KW Network Information and Hardware/LCD Firmware
  • LED Indicators: Input Output Load Tx/Rx LINK Outlets
  • Upgradeable Firmware: Yes - SNMP HW and LCD
Certifications & Standards
  • UL60950-1 Certified by ETL (USA)
  • CSA C22.2(Canada)
  • FCC Class A
