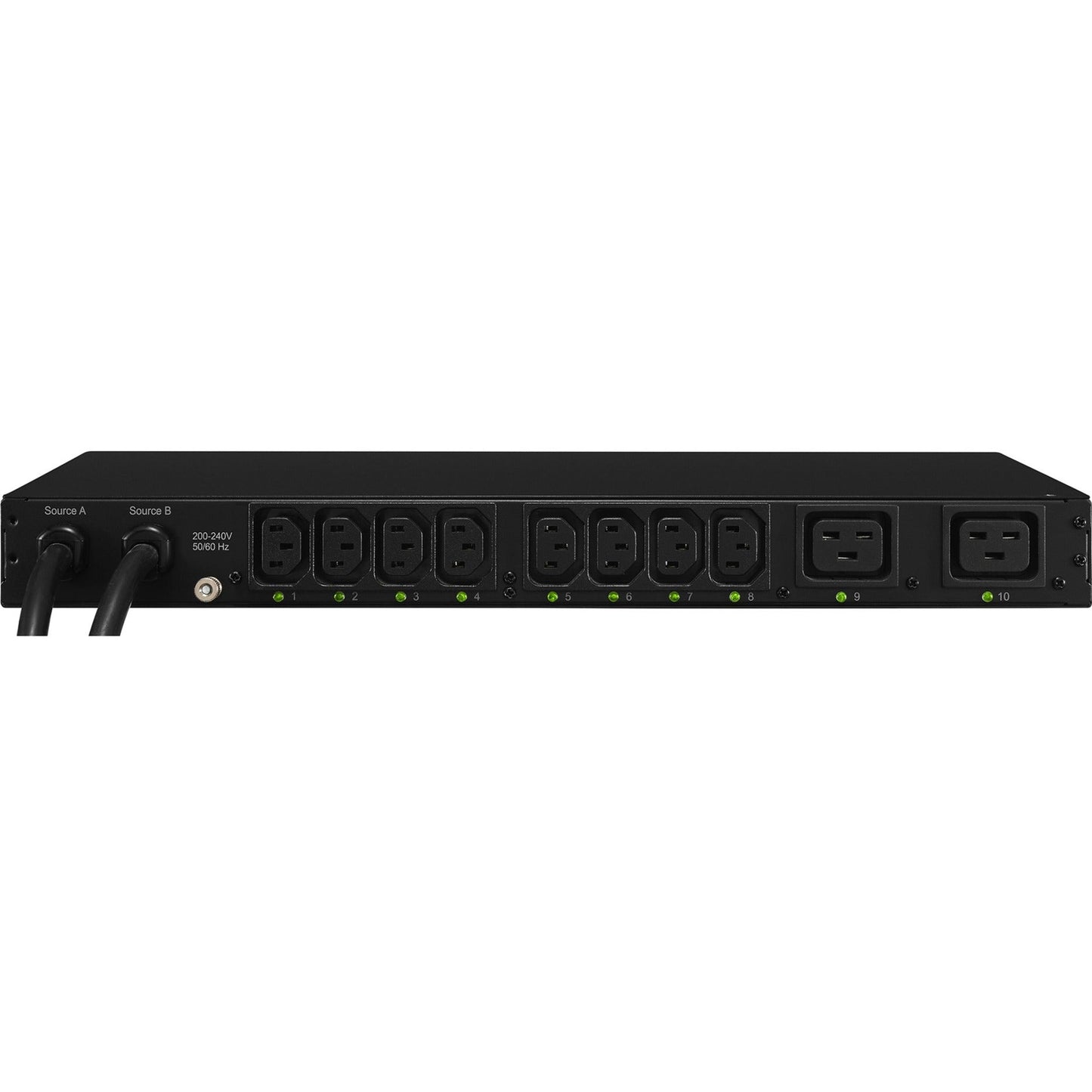

CyberPower PDU20SWHVT10ATNET 200 - 240 VAC 20A Switched ATS PDU

CyberPower PDU20SWHVT10ATNET 200 - 240 VAC 20A Switched ATS PDU

SKU: 1029268059      MFR: CyberPower Systems Inc

GTIN: 649532610822

Product Description

CyberPower PDU20SWHVT10ATNET 200 - 240 VAC 20A Switched ATS PDU - 10 Outlets 10 ft 2 x NEMA L6-20P Horizontal 1U LCD 3YR Warranty

Manufacturer : CyberPower Systems Inc

Manufacturer Part No : PDU20SWHVT10ATNET

Features

  • 200V - 240V 20A Switched ATS PDU with 8 IEC-320 C13 outlets 2 IEC-320 C19 outlets and dual NEMA L6-20P 20A high-voltage input connections
  • Switched Automatic Transfer Switching (ATS) PDU to provide a redundant input power option
  • Digital Display (Load Voltage and KW) for on-site monitoring of total PDU load
  • SNMP/HTTP Network Interface for real-time outlet control monitoring and event logging of the Switched ATS PDU

Product Details

Product TypePDU
Receptacle TypeIEC 60320 C13
Environmentally FriendlyYes
Environmental CertificationRoHS
Energy StarNo
PDU TypeSwitched
Receptacle Detail8 x IEC 60320 C13
Plug/Connector Detail2 x NEMA L6-20P
Country of OriginChina
Cord Length10 ft
Height1.8"
Width17.1"
Certifications & Standards
  • UL60950-1 Certified by ETL (USA)
  • CSA C22.2(Canada)
  • FCC Class A
Product SeriesSwitched ATS PDU
Rack Height1U
Brand NameCyberPower
Plug/Connector TypeNEMA L6-20P
Input Current20 A
Length9.3"
Management
  • Automatic Transfer Switch (ATS)
  • SNMP/HTTP
ManufacturerCyberPower Systems Inc
Product ModelPDU20SWHVT10ATNET
Product NamePDU20SWHVT10ATNET Switched ATS PDU 200-240V 20A 1U 10-Outlets (2) L6-20P
Mount TypeRack-mountable
Input Voltage230 V AC
Manufacturer Part NumberPDU20SWHVT10ATNET
Manufacturer Website Addresshttp://www.cyberpowersystems.com
Marketing InformationThe CyberPower PDU20SWHVT10ATNET 10-outlet 1U rack mount switched auto transfer switch (ATS) PDU provides 200-240V / 20A output. The PDU distributes power to 10 IEC-320 8-C13 / 2-C14 receptacles from redundant L5-20P plugs. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded equipment. If there is a power failure or an under/over voltage the PDU will switch to the secondary power source to insure continuous operation.

The PDU includes a RMCARD203 SNMP card. With the SNMP card and an IP address on the network interface users have real-time monitoring and outlet control of the ATS PDU including event notifications.

The LCD provides local monitoring of voltage and amperage of the PDU and on/off control of the outlets.

The unit has a rugged industrial-grade metal housing and 10-foot AC power cords. It can be mounted horizontally includes a cord retention tray and is UL60950_1 & FCC Class A certified. A three-year warranty is standard.

  • 200V - 240V 20A Switched ATS PDU with 8 IEC-320 C13 outlets 2 IEC-320 C19 outlets and dual NEMA L6-20P 20A high-voltage input connections
  • Switched Automatic Transfer Switching (ATS) PDU to provide a redundant input power option
  • Digital Display (Load Voltage and KW) for on-site monitoring of total PDU load
  • SNMP/HTTP Network Interface for real-time outlet control monitoring and event logging of the Switched ATS PDU
Package Contents
  • PDU20SWHVT10ATNET Switched ATS PDU 200-240V 20A 1U 10-Outlets (2) L6-20P
  • RMCARD203 SNMP Card
  • 1 x Mounting Brackets Set
  • Cord Retention Tray
  • Cord Organizers
  • User Manual
Limited Warranty3 Year
Additional Information
  • Phase: Single Phase
  • Frequency: 50/60 Hz
  • LCD Displays: Amperage Voltage KW Network Information and Hardware/LCD Firmware
  • LED Indicators: Input Output Load Tx/Rx LINK Outlets
  • Upgradeable Firmware: Yes - SNMP HW and LCD
Output Voltage230 V AC
Weight (Approximate)12.35 lb
Product FamilySwitched ATS PDU
