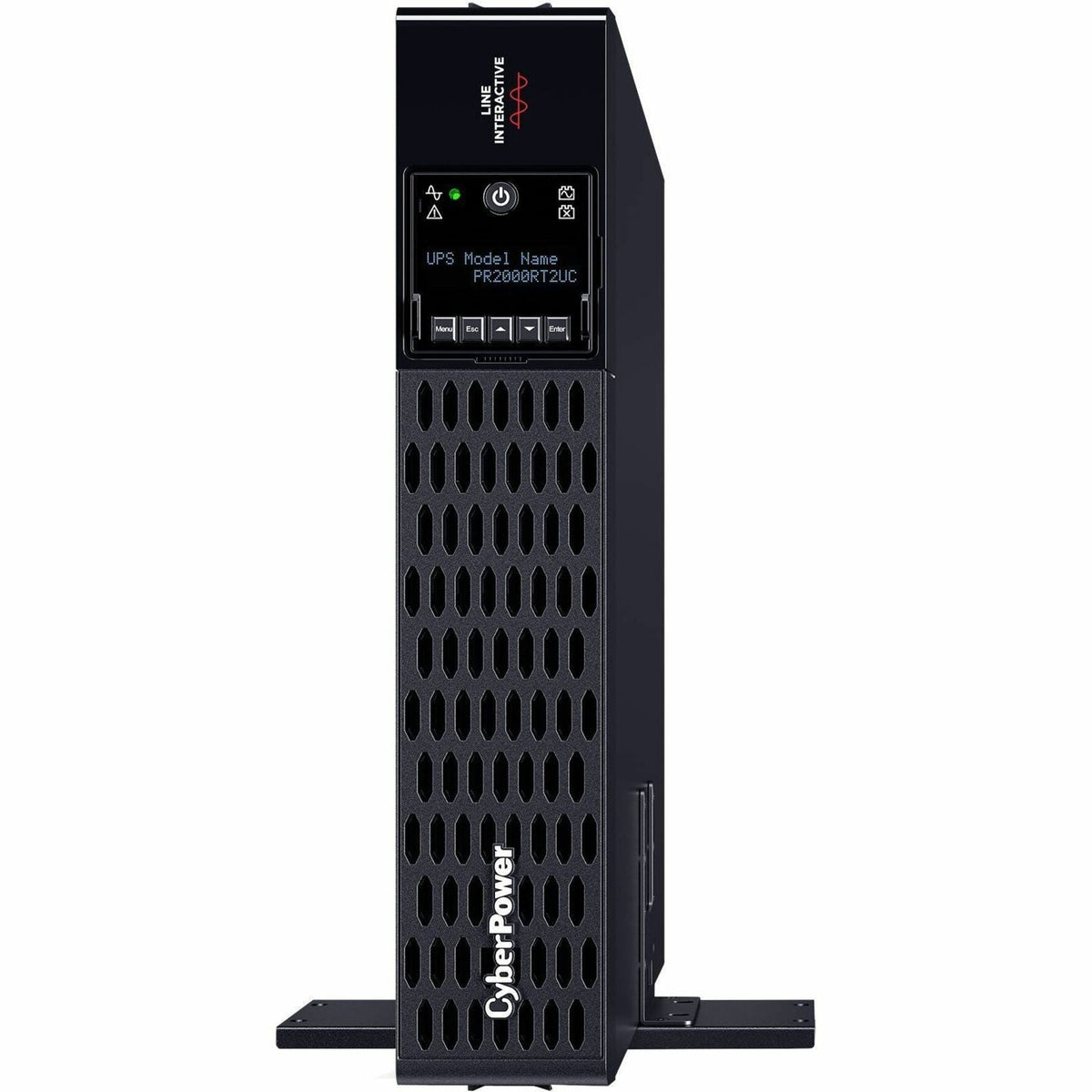

CyberPower PR2000RT2UC New Smart App Sinewave UPS Systems

CyberPower PR2000RT2UC New Smart App Sinewave UPS Systems

SKU: 1077862218      MFR: CyberPower Systems Inc

GTIN: 649532935505

Product Description

CyberPower PR2000RT2UC New Smart App Sinewave UPS Systems - 2000VA/2000W 120 VAC NEMA 5-20P 2U Rack / Tower Sine Wave 8 Outlets LCD PowerPanel® Business $400000 CEG 3YR Warranty

Manufacturer : CyberPower Systems Inc

Manufacturer Part No : PR2000RT2UC

Features

  • Capacity: 2000 VA / 2000 W
  • Topology: Line Interactive
  • Waveform: Sine Wave
  • Output: 100-125 VAC +/- 5%
  • Runtime (half/full): 13.5 minutes / 4.5 minutes
  • Plug type & cord: NEMA 5-20P 10 ft. cord
  • Outlets: 8 surge + battery backup
  • Outlet types: 8 × NEMA 5-20R
  • Communication: USB Serial SNMP Cloud Relay EPO
  • Management software: PowerPanel® Business Edition
  • Remote management: Yes with optional RMCARD205. Includes Built-in Cloud Monitoring
  • Warranty: 3-Year Limited
  • Connected Equipment Guarantee: $400000
  • ENERGY STAR® Qualified: Yes

Product Details

Product TypeLine-interactive UPS
Additional Warranty Information

Connected Equipment Guarantee: Lifetime

Application/UsageServer
Battery ChemistryLead Acid
DisplayLCD
Hot SwappableYes
Input Voltage120 V AC
Manufacturer Part NumberPR2000RT2UC
Manufacturer Website Addresshttps://www.cyberpowersystems.com/
Marketing Information

The PR2000RT2UC is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology surge protection and battery backup. CyberPower's Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns.

The Smart App Sinewave PR2000RT2UC improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR) which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel captive screws for battery panel access and color-coded rear panel make battery changes and installations simple and fast. The PR2000RT2UC also has an innovative LCD panel that rotates 90° tilts for a better viewing angle and provides information on 47 different settings including UPS stats UPS setup and control management and testing options.

This model accepts the RMCARD205 network management card for remote management and control via a standard web browser or network management system. Includes built in cloud monitoring.

With a $400000 connected equipment guarantee and a three-year warranty you can trust CyberPower's commitment to the quality of the PR2000RT2UC.

Output Voltage100 V AC
Weight (Approximate)59.80 lb
Limited Warranty3 Year
Form FactorRack/Tower
Load Capacity2000 VA/2000 W
ManufacturerCyberPower Systems Inc
Status Indicators

LED Indicators:

  • Power On
  • Line Mode
  • Battery Mode
  • Fault
  • Night Mode
  • Wiring Fault
Network ManagementSNMP/HTTP Remote Monitoring
Waveform TypeSine Wave
Surge Energy Rating2430 J
Thermal Dissipation36.49 W
Overload ProtectionYes
Product ModelPR2000RT2UC
Product NameSmart App Sinewave PR2000RT2UC 2000VA Rack/Tower UPS
Product SeriesSmart App Sinewave
Plug/Connector TypeNEMA 5-15P
Input Voltage Range70 V AC - 155 V AC
Rack Height2U
Brand NameCyberPower
Output Frequency60 Hz
AlarmBattery Mode
Height3.4"
Width17.1"
Depth16.2"
Input Frequency63 Hz
Battery Size12V
Receptacle TypeNEMA 5-15R
Battery Capacity9000 mAh
Environmentally FriendlyYes
Environmental CertificationRoHS
Sound Emission (A-Weighted)52.5 dB(A)
EMI/RFI Noise FilterYes
Replaceable BatteryYes
Product FamilySmart App Sinewave
USBYes
Maximum Operating Temperature104°F (40°C)
Serial PortYes
Number of Batteries4
Energy StarYes
AVRYes
EPO PortYes
USB (HID Compliant) PortYes
Maximum Operating Elevation9842.52 ft
Maximum Storage Elevation49209.32 ft
Operating Humidity95%
Number of Battery & Surge Outlets8
Number of Critical Load Outlets4
Storage Temperature5°F (-15°C) - 113°F (45°C)
Transfer Time4 ms
Typical Battery Recharge Time3 Hour
Product ColorBlack
Output Power Factor1
Receptacle Detail8 x NEMA 5-15R
Backup/Run Time (Half Load)13.50 Minute
Backup/Run Time (Full Load)4.50 Minute
Battery CharacteristicsSealed
Load Capacity (VA)2000 VA
Load Capacity (W)2000 W
