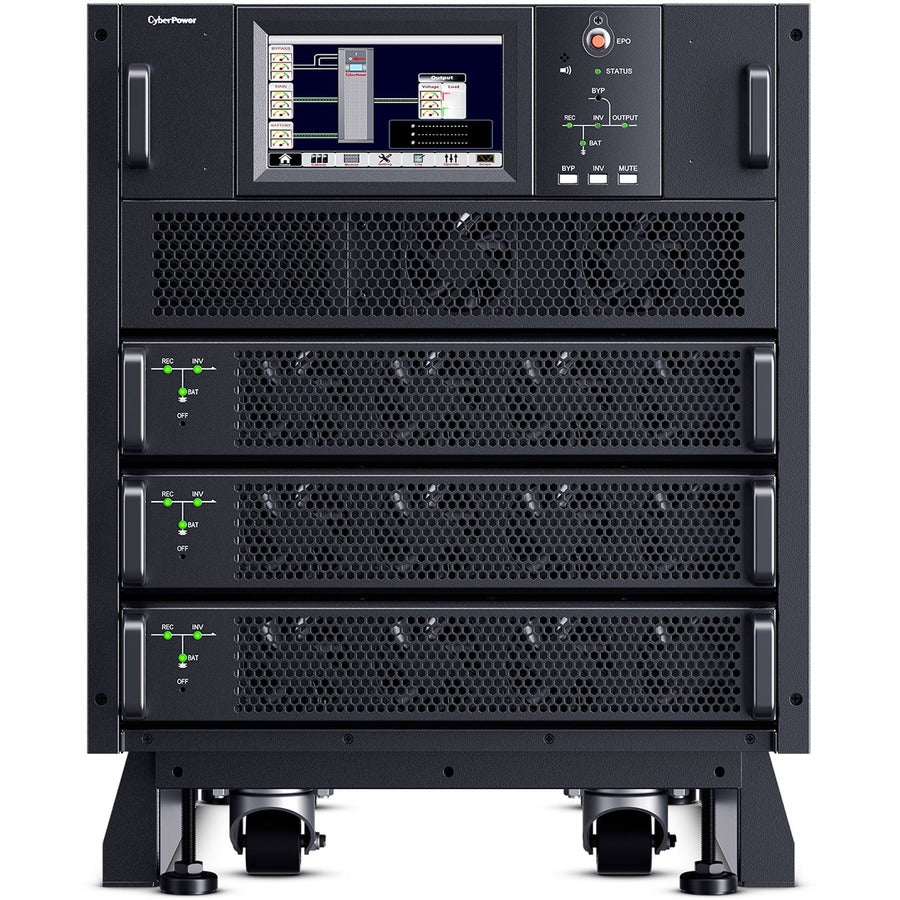

CyberPower SM020KAMFA 3-Phase Modular Smart App Online UPS System
CyberPower SM020KAMFA 3-Phase Modular Smart App Online UPS System
SKU: 1069681600 MFR: CyberPower Systems Inc
GTIN: 649532931194
Product Description
CyberPower SM020KAMFA 3-Phase Modular Smart App Online UPS System - 10-20K UPS Cabinet Modular AC 208/120V 220/127V 11U 1YR Warranty
Manufacturer : CyberPower Systems Inc
Manufacturer Part No : SM020KAMFA
Features
- Capacity: 10-20 kVA / 10-20 kW
- Redundancy: (N+X)
- Power Factor (PF): 1.0
- Topology: Double-Conversion
- Waveform: Sine Wave
- Output: 208/120V or 220/127V VAC Configurable
- Communication Ports: USB Serial Modbus SNMP EPO
- Management Software: PowerPanel® Business
- Energy Saving: ECO Mode Efficiency >97.5%
- Warranty: 1 year
Product Details
- LCD: Multifunction LCD
- LED Indicators: Rectifier
The CyberPower SM020KAMFA Smart App Online 3-Phase Modular UPS System brings flexibility space savings and efficiency to 3-Phase power protection technology. Configurable for N+N system or N+1 power module redundancy the system can intelligently manage individual modules to achieve higher efficiency. The customizable modular design can be configured as a tower side-by-side or integrated within a rack. The high-density scalable 10kVA/10kW power modules are 2U in height saving space while providing more options for capacity expansion.
The SM020KAMFA features double-conversion topology for seamless power protection and a pre-installed RMCARD205 for remote management. The user-friendly 7" color touchscreen displays key status indicators at-a-glance. Three-stage Smart Battery Management (SBM) equalizes battery voltages and reduces excessive heat to extend battery life. Plus hot-swappable power modules battery and bypass allow for rapid replacement and minimal impact to system operation. Ideal for high-end data centers the SM020KAMFA Smart App Online 3-Phase Modular UPS System assures reliable high-quality AC power and includes a One-Year Limited Warranty.
- SM020KAMFA 3-Phase Modular Smart App Online UPS System
- Mounting Hardware
- Dual Power Inputs: Yes
- Energy Saving: Online ECO Mode Efficiency >97.5%
- Hot Swappable Bypass Module: Yes - Qualified Personnel Only
- Hot Swappable Power Module: Yes - Qualified Personnel Only
- Module Maximum Capacity: 3
- Parallel Expansion (Max. Units): 2
- Power Module Redundancy Capability: Yes
- Battery Bus Voltage: Nominal: ±120VDC one-side range: 120VDC - 132VDC
- Battery Cabinet: Modular External
- Charger Voltage Tolerance: ?1% Float
- Hot Swappable: Yes
- Hot Swappable Battery Module: Yes - Qualified Personnel Only
- Recharge Power: Default 10% x UPS Power
- Recharge Power (Selectable): 1 % - 20 %
- Replacement Battery Cartridge Quantity: 6
- Ripple Current: ?5% C10
- Ripple Voltage: ?1% VDC Float
- Temperature Compensation (Per Cell): -3 mV/°C
- Backfeed Protection: Yes
- Bypass frequency tolerance (Default): ±10%
- Bypass frequency tolerance (Selectable): ±2.5% ±5% ±10% ±20%
- Bypass Input Voltage Range: -20 % - 15 %
- Bypass Input Voltage Range (Selectable): Lower limit: -10% -20% -30% -40%
- Bypass Overload Protection: 110% - 130% Load for 5 Min
- Bypass Rated Current: 55.6A@ 208V
- Bypass to Inverter Switch Time: Synchronized switch: ?1ms
- Current rating of bypass neutral cable (A): 1.7 x Input Rated Current
- Input Power Factor: 0.99
- Synchronization-Window: Rated frequency: ±2Hz
- Synchronization-Window (Selectable): ±0.5Hz - ±5Hz
- THDI (%): < 4% (Full Linear Load)
- Automatic Voltage Regulation: ±1 (Balanced Load)
- Bypass: Internal Bypass (Automatic and Manual)
- Crest Factor: 3:1
- Efficiency: 92.5% (Battery Mode)
- Harmonic Distortion: < 1.5% at Linear Load
- Maintenance Bypass: Yes
- Max Change Rate of Synch Frequency: 1 Hz/s
- Max Change Rate of Synch Frequency (Selectable): 0.1 - 5 Hz/s
- Neutral Current Capability: 170 %
- Non-Linear Load Capability: 100 %
- Output Power Factor: 1
- Output Voltage Range: 187 VAC - 260 VAC
- Overload Protection: 105 - 110% Load for 60 min
- Short Circuit Protection: 300% - 200ms
- Synchronization Window (Rated ): ±2Hz
- Synchronization Window (Selectable): ±1Hz - ±5Hz
- Transient Voltage Response: ±5%
- Typical Transfer Time: 0 ms
- Dry Contacts: Yes
- Emergency Power Off (EPO) Port: Yes
- Serial Port: 1 RS232
- Material of Construction: Metal
- Mounting Hardware: Yes
- Ingress Protection: IP20
- Maximum Air Exchange: 3.02 m3 /min
- Online Thermal Dissipation: 5732.16 BTU/hr
- Operating Elevation Note: At ?1000m above sea level de-rate power by 1% per 100m between 1000m and 3048m
- Operating Relative Humidity: 0 - 95 % (non-condensing)
- Operating Temperature Note: Battery life is halved for every 10°C increase above 20°C
- Storage Battery Temperature Note: Optimum battery storage between -15°C and 20°C
Out Of Stock
