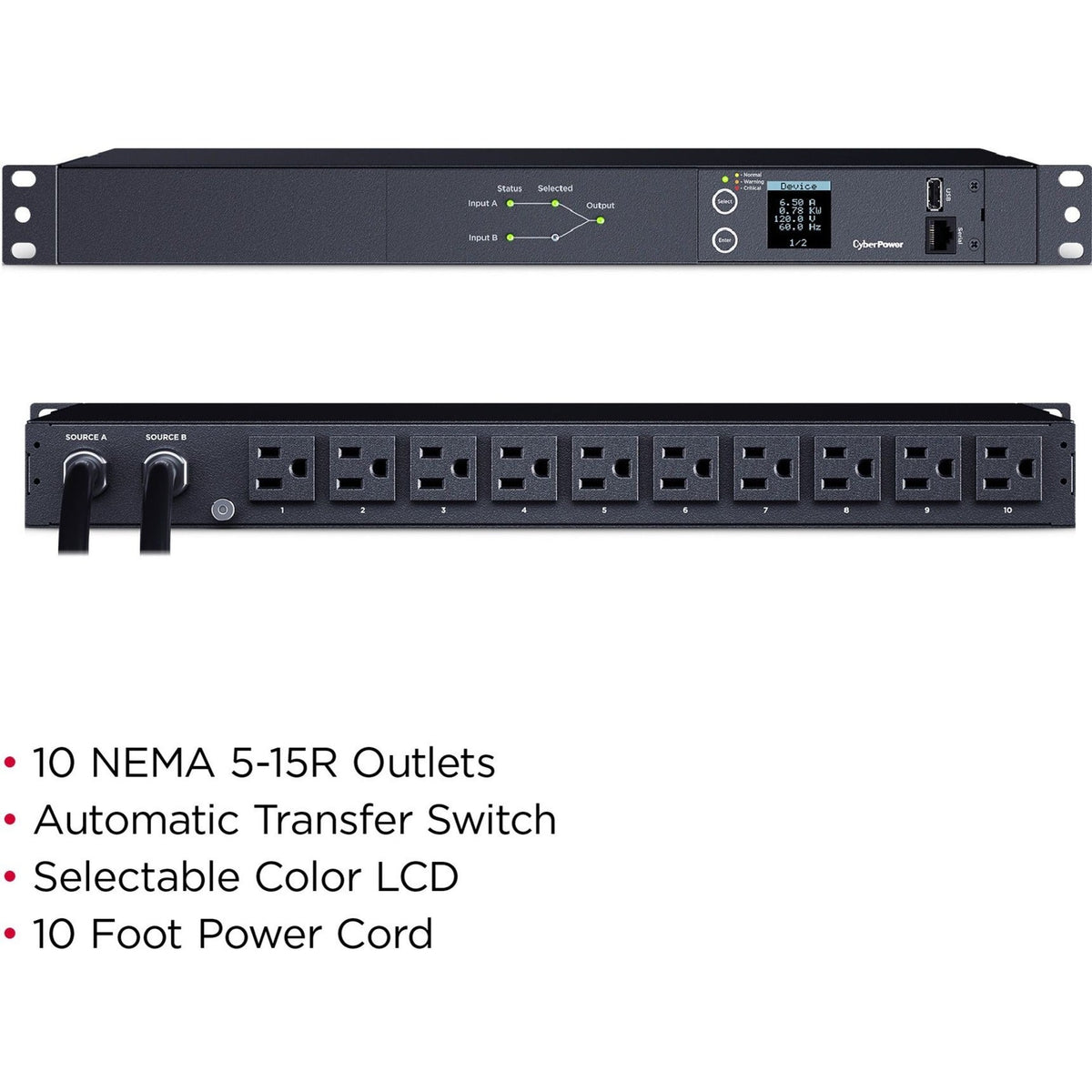

• CyberPower Switched ATS PDU PDU24001 10-Outlets PDU
    CyberPower Switched ATS PDU PDU24001 10-Outlets PDU
  • CyberPower Switched ATS PDU PDU24001 10-Outlets PDU
  • CyberPower Switched ATS PDU PDU24001 10-Outlets PDU
  • CyberPower Switched ATS PDU PDU24001 10-Outlets PDU
1 4

CyberPower Switched ATS PDU PDU24001 10-Outlets PDU

CyberPower Switched ATS PDU PDU24001 10-Outlets PDU

SKU: 1072221518      MFR: CyberPower Systems Inc

GTIN: 649532933891

Product Description

CyberPower Switched ATS PDU PDU24001 10-Outlets PDU - Metered - NEMA 5-15P - 10 x NEMA 5-15R - 120 V AC - Network (RJ-45) - 1U - Horizontal - Rack-mountable

Manufacturer : CyberPower Systems Inc

Manufacturer Part No : PDU24001

Features

  • Phase: Single
  • Amps: 15A (Derated to 12A)
  • Volts: 100-120V
  • Frequency: 50/60Hz
  • Plug type: 2 x NEMA 5-15P
  • Outlets: 10 x NEMA 5-15R
  • Size: 1U Rackmount
  • Warranty: 3 year

Product Details

Product TypePDU
PhaseSingle Phase
Receptacle TypeNEMA 5-15R
Environmentally FriendlyYes
Output Voltage Range100 V AC - 120 V AC
Network (RJ-45)Yes
DesignModular
PDU TypeMetered
Mounting OrientationHorizontal
Product ColorBlack
Receptacle Detail10 x NEMA 5-15R
Plug/Connector Detail2 x NEMA 5-15P
Country of OriginChina
Height1.8"
Width17.1"
Depth8.5"
Product SeriesMetered ATS PDU
Rack Height1U
Brand NameCyberPower
Plug/Connector TypeNEMA 5-15P
Input Voltage Range100 V AC - 120 V AC
Input Current15 A
ManufacturerCyberPower Systems Inc
Product ModelPDU24001
Product NameSwitched ATS PDU PDU24001 10-Outlets PDU
Mount TypeRack-mountable
Input Voltage120 V AC
Manufacturer Part NumberPDU24001
Manufacturer Website Addresshttps://www.cyberpowersystems.com/
Marketing InformationEnsure continued operation of critical devices with the CyberPower PDU24001 Metered ATS PDU. Ideal for data centers and network closets this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds or if power fails the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable.

The PDU24001 supports inputs between 100-120V and includes (10) NEMA 5-15R outlets. Dual NEMA 5-15P power cords are plugged into separate power sources (A and B) and information about each power source is provided via LED indicator lights on the front of the unit. Other features include an LCD with selectable background color ugradeable firmware and network-grade plugs and outlets. The CyberPower PDU24001 is protected by a three-year limited warranty.
Limited Warranty3 Year
Additional Information
  • Cord Length :10 ft (3.0 m)
  • Derated Input Current :12 A
  • Input Frequency Range :50 Hz - 60 Hz
  • Phase :Single Phase
  • Plug Style :Straight
  • Nominal Output Voltage :100 - 120 VAC
  • Outlet Banks :1
  • Outlets - Total :10
  • Overload Protection :None
  • Power Source Transfer Time :2-7 ms
  • Source Failure Detection Time :2-3 ms
  • Total Transfer Time :<10 ms
  • Hardware Connection Port :Serial (RJ45)
  • LCD :Multifunction LCD
  • LED Indicators :Source Status
  • Upgradeable firmware :Yes
  • Retention Tray/Cord Organizers :Yes
  • External Site Ground Pin :Yes
  • Form Factors Supported :1U Rackmount
  • Material of Construction :Metal
  • Operating Elevation :0 - 13123 ft (0 - 4000 m)
  • Operating Relative Humidity :0 - 95 % (non-condensing)
  • Operating Temperature :32 - 113 °F (0 - 45 °C)
  • Storage Elevation :0 - 49213 ft (0 - 14999 m)
  • Storage Temperature :5 - 131 °F (-15 - 55 °C)
  • Safety :UL62368 :FCC Class A :cTUVus
Output Voltage120 V AC
Weight (Approximate)9.59 lb
Product FamilyMetered ATS PDU
View full details
$528.99 USD
$528.99
Sale Sold out

In Stock - 40 (Available by Wed, Sep 30 - Mon, Oct 05)


Update


Shipping calculated at checkout.

CyberPower Switched ATS PDU PDU24001 10-Outlets PDU - Metered - NEMA 5-15P - 10 x NEMA 5-15R - 120 V AC - Network (RJ-45) - 1U - Horizontal - Rack-mountable

Manufacturer : CyberPower Systems Inc

Manufacturer Part No : PDU24001

Features

  • Phase: Single
  • Amps: 15A (Derated to 12A)
  • Volts: 100-120V
  • Frequency: 50/60Hz
  • Plug type: 2 x NEMA 5-15P
  • Outlets: 10 x NEMA 5-15R
  • Size: 1U Rackmount
  • Warranty: 3 year

Product Details

Product TypePDU
PhaseSingle Phase
Receptacle TypeNEMA 5-15R
Environmentally FriendlyYes
Output Voltage Range100 V AC - 120 V AC
Network (RJ-45)Yes
DesignModular
PDU TypeMetered
Mounting OrientationHorizontal
Product ColorBlack
Receptacle Detail10 x NEMA 5-15R
Plug/Connector Detail2 x NEMA 5-15P
Country of OriginChina
Height1.8"
Width17.1"
Depth8.5"
Product SeriesMetered ATS PDU
Rack Height1U
Brand NameCyberPower
Plug/Connector TypeNEMA 5-15P
Input Voltage Range100 V AC - 120 V AC
Input Current15 A
ManufacturerCyberPower Systems Inc
Product ModelPDU24001
Product NameSwitched ATS PDU PDU24001 10-Outlets PDU
Mount TypeRack-mountable
Input Voltage120 V AC
Manufacturer Part NumberPDU24001
Manufacturer Website Addresshttps://www.cyberpowersystems.com/
Marketing InformationEnsure continued operation of critical devices with the CyberPower PDU24001 Metered ATS PDU. Ideal for data centers and network closets this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds or if power fails the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable.

The PDU24001 supports inputs between 100-120V and includes (10) NEMA 5-15R outlets. Dual NEMA 5-15P power cords are plugged into separate power sources (A and B) and information about each power source is provided via LED indicator lights on the front of the unit. Other features include an LCD with selectable background color ugradeable firmware and network-grade plugs and outlets. The CyberPower PDU24001 is protected by a three-year limited warranty.
Limited Warranty3 Year
Additional Information
  • Cord Length :10 ft (3.0 m)
  • Derated Input Current :12 A
  • Input Frequency Range :50 Hz - 60 Hz
  • Phase :Single Phase
  • Plug Style :Straight
  • Nominal Output Voltage :100 - 120 VAC
  • Outlet Banks :1
  • Outlets - Total :10
  • Overload Protection :None
  • Power Source Transfer Time :2-7 ms
  • Source Failure Detection Time :2-3 ms
  • Total Transfer Time :<10 ms
  • Hardware Connection Port :Serial (RJ45)
  • LCD :Multifunction LCD
  • LED Indicators :Source Status
  • Upgradeable firmware :Yes
  • Retention Tray/Cord Organizers :Yes
  • External Site Ground Pin :Yes
  • Form Factors Supported :1U Rackmount
  • Material of Construction :Metal
  • Operating Elevation :0 - 13123 ft (0 - 4000 m)
  • Operating Relative Humidity :0 - 95 % (non-condensing)
  • Operating Temperature :32 - 113 °F (0 - 45 °C)
  • Storage Elevation :0 - 49213 ft (0 - 14999 m)
  • Storage Temperature :5 - 131 °F (-15 - 55 °C)
  • Safety :UL62368 :FCC Class A :cTUVus
Output Voltage120 V AC
Weight (Approximate)9.59 lb
Product FamilyMetered ATS PDU
