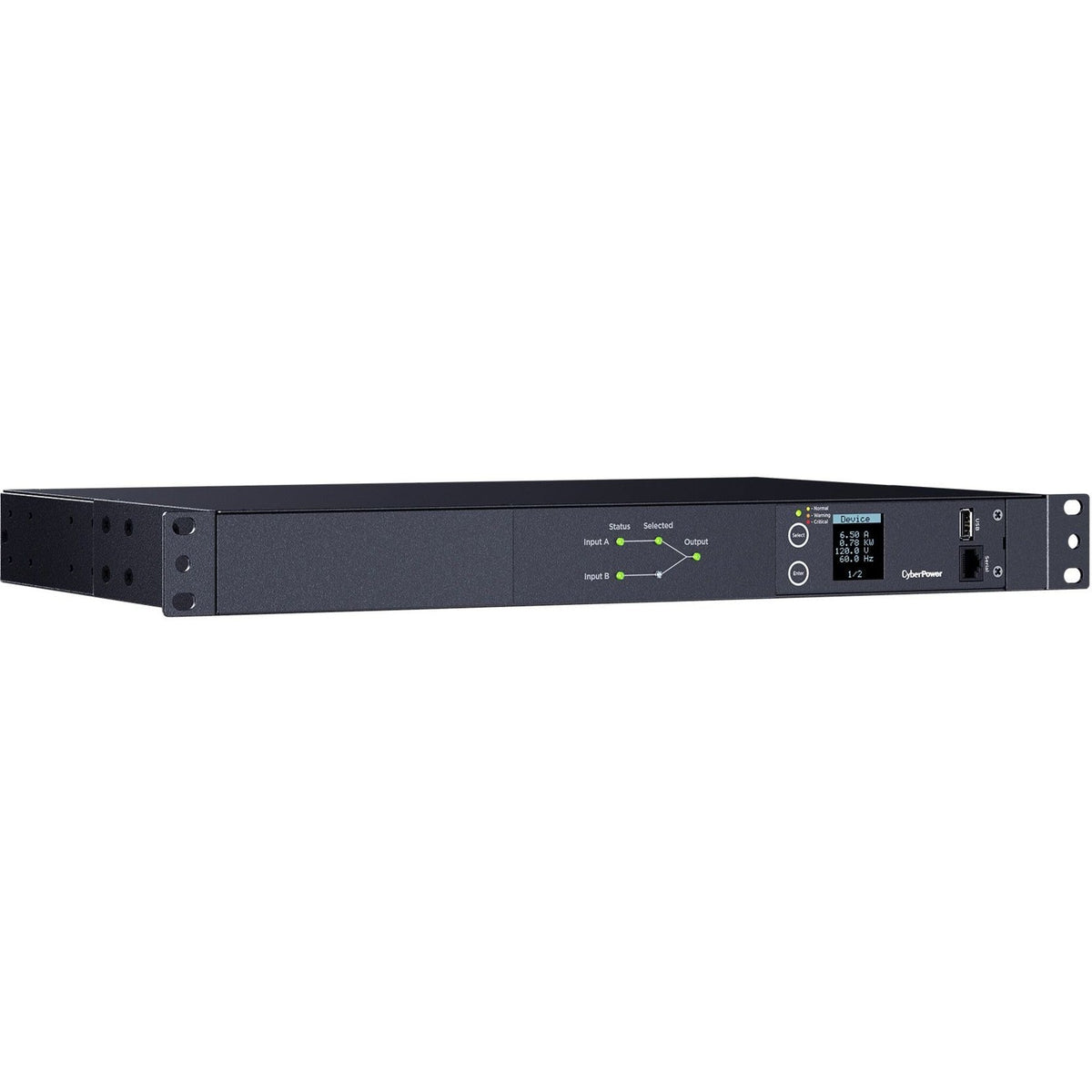

CyberPower Switched ATS PDU PDU24005 10-Outlets PDU

CyberPower Switched ATS PDU PDU24005 10-Outlets PDU

SKU: 1072221522      MFR: CyberPower Systems Inc

GTIN: 649532933907

Product Description

CyberPower Switched ATS PDU PDU24005 10-Outlets PDU - Metered - NEMA L5-20P - 10 x NEMA 5-20R - 120 V AC - 1U - Horizontal - Rack-mountable

Manufacturer : CyberPower Systems Inc

Manufacturer Part No : PDU24002

Features

  • Phase: Single
  • Amps: 20A (Derated to 16A)
  • Volts: 100-120V
  • Frequency: 50/60Hz
  • Plug type: 2 x NEMA L5-20P (L5-20P to 5-20P adapter included)
  • Outlets: 10 x NEMA 5-20R
  • Size: 1U Rackmount
  • Warranty: 3 year

Product Details

Product TypePDU
PhaseSingle Phase
Receptacle TypeNEMA 5-20R
Product FamilyMetered ATS PDU
DesignModular
PDU TypeMetered
Mounting OrientationHorizontal
Product ColorBlack
Rack Height1U
Brand NameCyberPower
Plug/Connector TypeNEMA L5-20P
Input Voltage Range100 V AC - 120 V AC
Input Current20 A
Mount TypeRack-mountable
Input Voltage120 V AC
Output Voltage120 V AC
Environmentally FriendlyYes
Output Voltage Range100 V AC - 120 V AC
Receptacle Detail10 x NEMA 5-20R
Plug/Connector Detail2 x NEMA L5-20P
Country of OriginChina
Height1.8"
Width17.1"
Depth8.5"
Product SeriesMetered ATS PDU
ManufacturerCyberPower Systems Inc
Product ModelPDU24002
Product NameSwitched ATS PDU PDU24005 10-Outlets PDU
Manufacturer Part NumberPDU24002
Manufacturer Website Addresshttps://www.cyberpowersystems.com/
Marketing InformationEnsure continued operation of critical devices with the CyberPower PDU24002 Metered ATS PDU. Ideal for data centers and network closets this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds or if power fails the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable.

The PDU24002 supports inputs between 100-120V and includes (10) NEMA 5-20R outlets. Dual NEMA L5-20P (L5-20P to non-locking 5-20P adpaters included) power cords are plugged into separate power sources (A and B) and information about each power source is provided via LED indicator lights on the front of the unit. Other features include an LCD with selectable background color ugradeable firmware and network-grade plugs and outlets. The CyberPower PDU24002 is protected by a three-year limited warranty.
Package Contents
  • Switched ATS PDU PDU24005 10-Outlets PDU
  • L5-20P to non-locking 5-20P Adapter
Limited Warranty3 Year
Weight (Approximate)10.60 lb
Additional Information
  • Cord Length : 10 ft (3.0 m)
  • Derated Input Current : 16 A
  • Input Frequency Range : 50 Hz - 60 Hz
  • Input Plug Type : 2 x NEMA L5-20P
  • Maximum Input Current : 20A
  • Plug Style : Straight
  • Nominal Output Voltage : 100 - 120 VAC
  • Outlet Banks : 1
  • Outlets - Total : 10
  • Overload Protection : None
  • Power Source Transfer Time : 2-7 ms
  • Source Failure Detection Time : 2-3 ms
  • Total Transfer Time : <10 ms
  • Hardware Connection Port : Serial (RJ45)
  • LCD : Multifunction LCD
  • LED Indicators : Source Status
  • Upgradeable firmware : Yes
  • Color : Black
  • Cord Retention Tray/Cord Organizers : Yes
  • External Site Ground Pin : Yes
  • Material of Construction : Metal
  • Operating Elevation : 0 - 13123 ft (0 - 4000 m)
  • Operating Relative Humidity : 0 - 95 % (non-condensing)
  • Operating Temperature : 32 - 113 °F (0 - 45 °C)
  • Storage Elevation : 0 - 49213 ft (0 - 14999 m)
  • Storage Temperature : 5 - 131 °F (-15 - 55 °C)
  • Safety : UL62368 : FCC Class A : cTUVus
