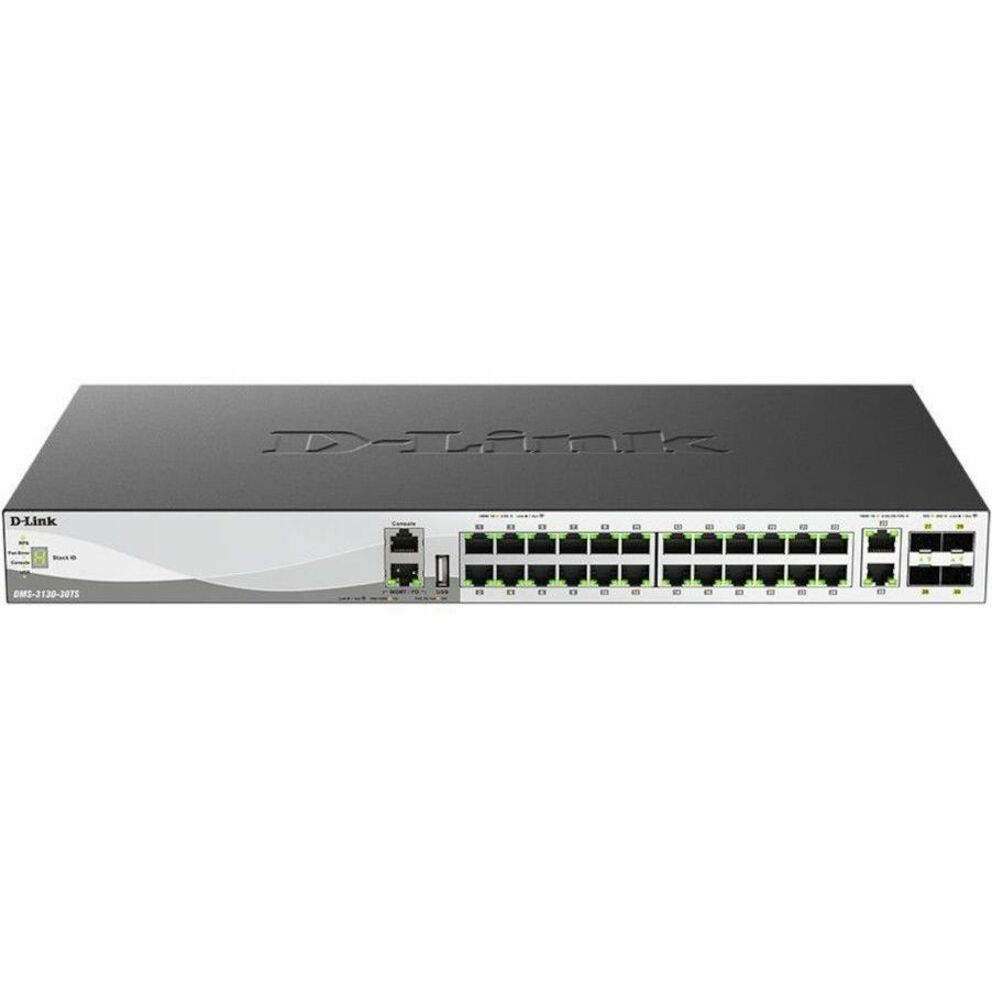

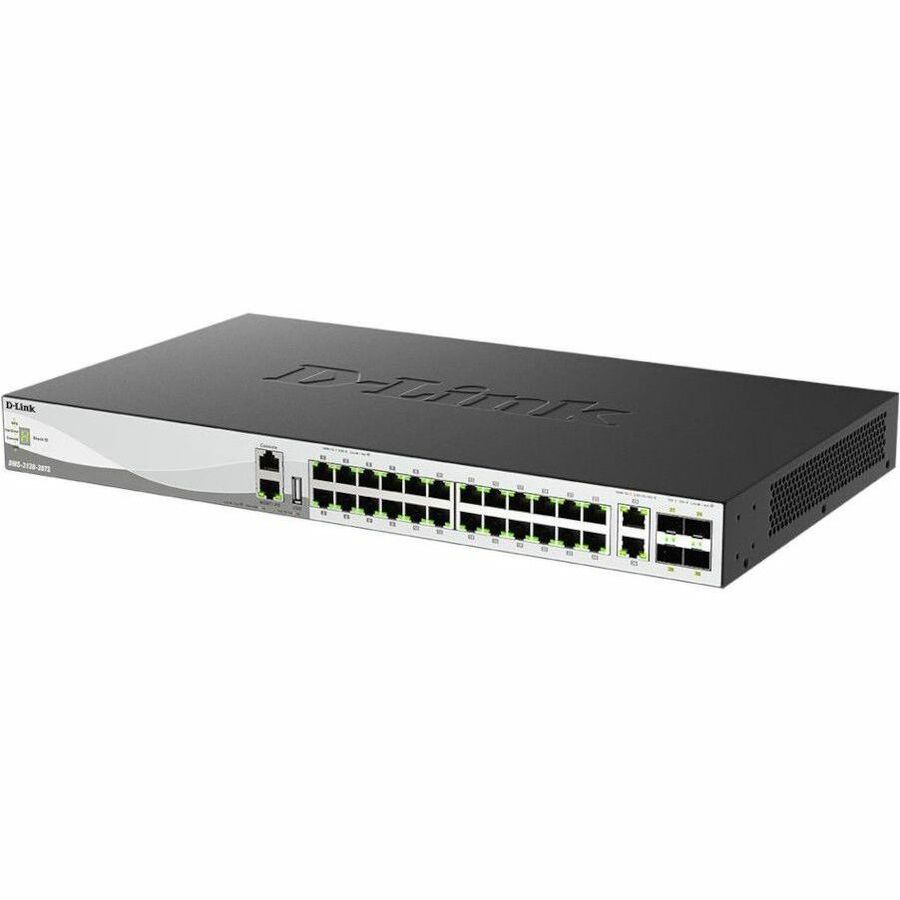

D-Link DMS-3130-30TS Ethernet Switch

D-Link DMS-3130-30TS Ethernet Switch

SKU: 1077150557      MFR: D-Link Systems Inc

GTIN: 790069467387

Product Description

D-Link DMS-3130-30TS Ethernet Switch - 26 Ports - Manageable - 2.5 Gigabit Ethernet 5 Gigabit Ethernet 10 Gigabit Ethernet 25 Gigabit Ethernet - 2.5GBase-T 10GBase-T 25GBase-X - 3 Layer Supported - Modular - 74.26 W Power Consumption - Optical Fiber Twisted Pair - PoE Ports

Manufacturer : D-Link Systems Inc

Manufacturer Part No : DMS-3130-30TS

Features

  • Multi-Gigabit 2.5G/5G/10G/25G support
  • 2.5GBASE-T PoE+ and 5GBASE-T PoE++ support
  • Four 25G SFP28 uplink ports
  • Redundant power supply (RPS) support
  • Two hot-swappable power modules for 1+1 power redundancy and load sharing for DMS3130-30PS
  • DMS-3130-30TS can also be powered through the RJ45 PD MGMT port
  • Ethernet Ring Protection Switching (ERPS)
  • Embedded 6 kV surge protection on all 2.5G/5G Ethernet access ports
  • Loopback Detection (LBD)
  • Physical stack of up to 9 units
  • Supports long-distance stacking over fibre
  • 200 Gbps per device physical stacking bandwidth
  • Static Route
  • RIP/RIPng
  • OSPFv2/v3

Product Details

PoE (RJ-45) PortYes
Product SeriesDMS-3130
Network Technology2.5GBase-T
ManufacturerD-Link Systems Inc
Power Consumption74.26 W
Brand NameD-Link
Height1.7"
Expansion Slot TypeSFP28
Width17.3"
Ethernet Technology2.5 Gigabit Ethernet
ManageableYes
Depth9.8"
Number of Total Expansion Slots4
Redundant Power Supply SupportedYes
Port/Expansion Slot Details24 x 2.5 Gigabit Ethernet Network
Uplink PortYes
Stack PortYes
Media Type SupportedOptical Fiber
ModularYes
Number of Power Supplies Supported2
Total Number of Network Ports26
Networking StandardsIEEE 802.3af
Product FamilyDMS-3130
Application/UsageWireless Access Point
Product TypeEthernet Switch
Package Contents
  • DMS-3130-30TS Ethernet Switch
  • 1 x Hot Swappable Power Supply
Input Voltage120 V AC
Manufacturer Part NumberDMS-3130-30TS
Manufacturer Website Addresshttp://www.dlink.com
Marketing Information

The DMS-3130 Series is a range of Layer 3 Stackable Multi-Gigabit Managed Switches designed to connect end-users in a secure enterprise or metro Ethernet access network. These switches support both multicasting and enhanced security making them an ideal multi-Gigabit access layer solution. Each model boasts two 10GBASE-T ports and four 10G/25G SFP28 ports to provide versatility and speed.

Future-Proof Power over Ethernet Support

The DMS-3130-30PS provides sixteen 2.5G ports supporting 802.3af/at PoE and eight 5G ports supporting 60W 802.3bt PoE standards with a power budget of 740 watts expandable to 960 watts with dual power supplies. Multi-Gigabit PoE with up to 60W of power per port is ideal for Wi-Fi 6/6E access points smart lighting or industrial automation equipment. Perpetual PoE and Fast PoE support delivers faster and uninterrupted power to connected devices even when the switch is booting.
Power SourcePower Supply
Layer Supported3
Weight (Approximate)8 lb
Frequency50 Hz
Frequency60 Hz
Product NameDMS-3130-30TS Ethernet Switch
Product ModelDMS-3130-30TS
