• Digi XTend Radio Modem
    Digi XTend Radio Modem
1 1

Digi XTend Radio Modem

Digi XTend Radio Modem

SKU: 1055037187      MFR: Digi International

GTIN: 663072961480

Product Description

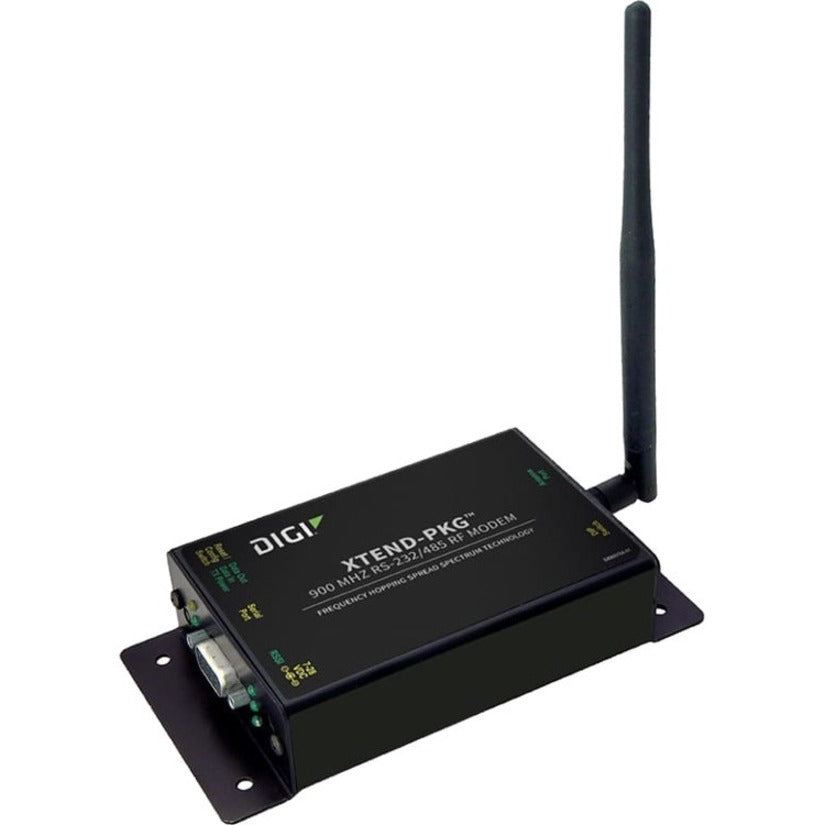

Digi XTend Radio Modem

Manufacturer : Digi International

Manufacturer Part No : XTP9B-PKI-RA-NA

Product Details

Product TypeRadio Modem
Height1.1"
Width5.5"
Brand NameDigi
Length2.8"
ManufacturerDigi International
Product NameXTend Radio Modem
Product LineXTend
Manufacturer Website Addresshttp://www.digi.com
Marketing Information900 MHz radio modems offer long-range performance advanced networking and simple out-of-the-box operation with multiple data interface options

Digi's XTend-PKG RF modems provide everything you need for out-of-the-box serial cable replacement enabling quick wireless connectivity of electronic devices across a broad range of applications. Simply feed data into one modem and the data is transported to the other end of a long range wireless link. Data security is provided by 256-bit AES encryption (128-bit AES is available outside of North America). If more advanced functionality is needed the modems support an extensive set of AT and binary commands.

Available in multiple interface options including RS-232/422/485 and USB XTend modems are ideally suited for remote monitoring building automation/security industrial automation/SCADA fleet management/asset tracking and sensor data capture in embedded systems.

BENEFITS
  • Outdoor line-of-sight range up to 40 miles* (with high gain antenna)
  • Outstanding receiver sensitivity (-110 dBm @ 9600 bps)
  • Adjustable power output from 100 mW to 1 W; up to 4 W EIRP (with 6 dB antenna)
  • Low power consumption for power-sensitive applications - Pin serial port and cyclic sleep modes available
  • Streaming acknowledged and multi-transmit modes supported
  • Easy out-of-the box operation
  • no configuration necessary
  • Durable industrial grade enclosure
Host InterfaceSerial
Additional Information

  • 128-bit AES North America

PERFORMANCE:
  • INDOOR/URBAN RANGE (W/ 2.1 DB DIPOLE ANTENNA): Up to 1000 feet (305 m)
  • OUTDOOR RF LINE-OF-SIGHT RANGE (W/ 2.1 DB DIPOLE ANTENNA): Up to 9 miles (14 km)
  • OUTDOOR RF LINE-OF-SIGHT RANGE (W/ HIGH-GAIN ANTENNA): Up to 40 miles (64 km)
  • TRANSMIT POWER OUTPUT (SOFTWARE SELECTABLE): 100 mW - 1 W (20 - 30 dBm)
  • INTERFACE DATA RATE: 10 - 230400 bps (including non-standard baud rates)
  • RF DATA RATE: 10 Kbps to 125 Kbps
  • RECEIVER SENSITIVITY: -110 dBm (@9600 bps throughput data rate) -100 dBm (@115200 bps)
POWER REQUIREMENTS:
  • SUPPLY VOLTAGE: 7 - 28V
  • RECEIVE CURRENT: 110 mA
  • TRANSMIT CURRENT: Up to 580 mA
  • PIN SLEEP POWER-DOWN: 18 mA
  • IDLE CURRENT (VARIOUS CYCLIC SLEEP INTERVALS): 19 - 39 mA
  • SERIAL PORT SLEEP POWER-DOWN: 45mA
GENERAL:
  • OPERATING TEMPERATURE: -40º C to 85º C (industrial)
  • ANTENNA OPTIONS: RPSMA (Reverse Polarity SMA)
  • IMPEDANCE: 50 ohms unbalanced
NETWORKING & SECURITY:
  • OPERATING FREQUENCY: ISM 902 - 928 MHz
  • SPREAD SPECTRUM: FHSS (Frequency Hopping Spread Spectrum)
  • MODULATION: FSK (Frequency Shift Keying)
  • SUPPORTED NETWORK TOPOLOGIES: Peer-to-Peer (no master/slave dependencies) Point-to-Point Point-to-Multipoint
  • CHANNEL CAPACITY: 10 hop sequences share 50 frequencies
AGENCY APPROVALS:
  • FCC PART 15.247: MCQ-XBPSX
  • INDUSTRY CANADA (IC): 1846A-XBPSX
  • AUSTRALIA: RCM
Weight (Approximate)7.10 oz
Product FamilyXTend
View full details
$521.99 USD
$521.99
Sale Sold out

Out Of Stock


Update


Shipping calculated at checkout.
