• PCI Express-enabled system with an available PCI Express slot
• Windows 10 / 8.x / 7
• Server 2016 (32-/64-bit) / 2012 R2 / 2012 (32-/64-bit) / 2008 R2 / 2008

Adds four RS-232 serial ports to PCI Express enabled computer systems. Replaces part # JJ-E40011-S4

Note: Replaces part # JJ-E40011-S4

• Easily adds four RS232 DB9 serial ports through an available PCI Express slot
• PCI Express 1-lane (x1) adapter works with any width PCI Express slot
• Four high-speed 16550 UART RS-232 serial ports support asynchronous baud rates up to 921Kbps
• Built-in 256-byte FIFO buffers dramatically increase data transmit/receive speed especially under Windows multitasking environment

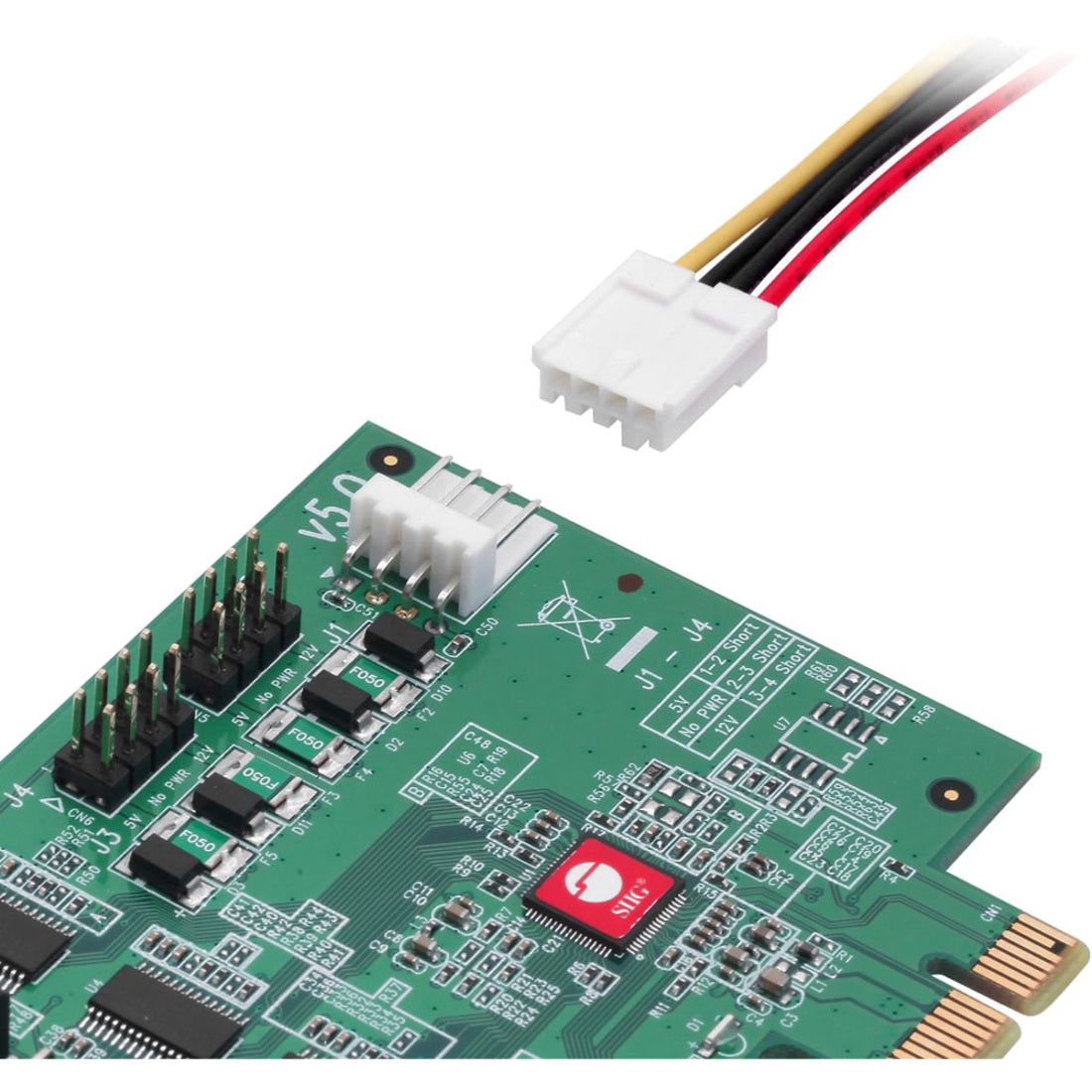

• Works as standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners table scanners POS displays etc.) Power is configurable via jumpers with silk-screened settings on PCB for easy identification and setup
• Supports hardware and software flow control 5 6 7 8 and 9-bit serial format
• Onboard power connector provides reliable power source for devices that require power

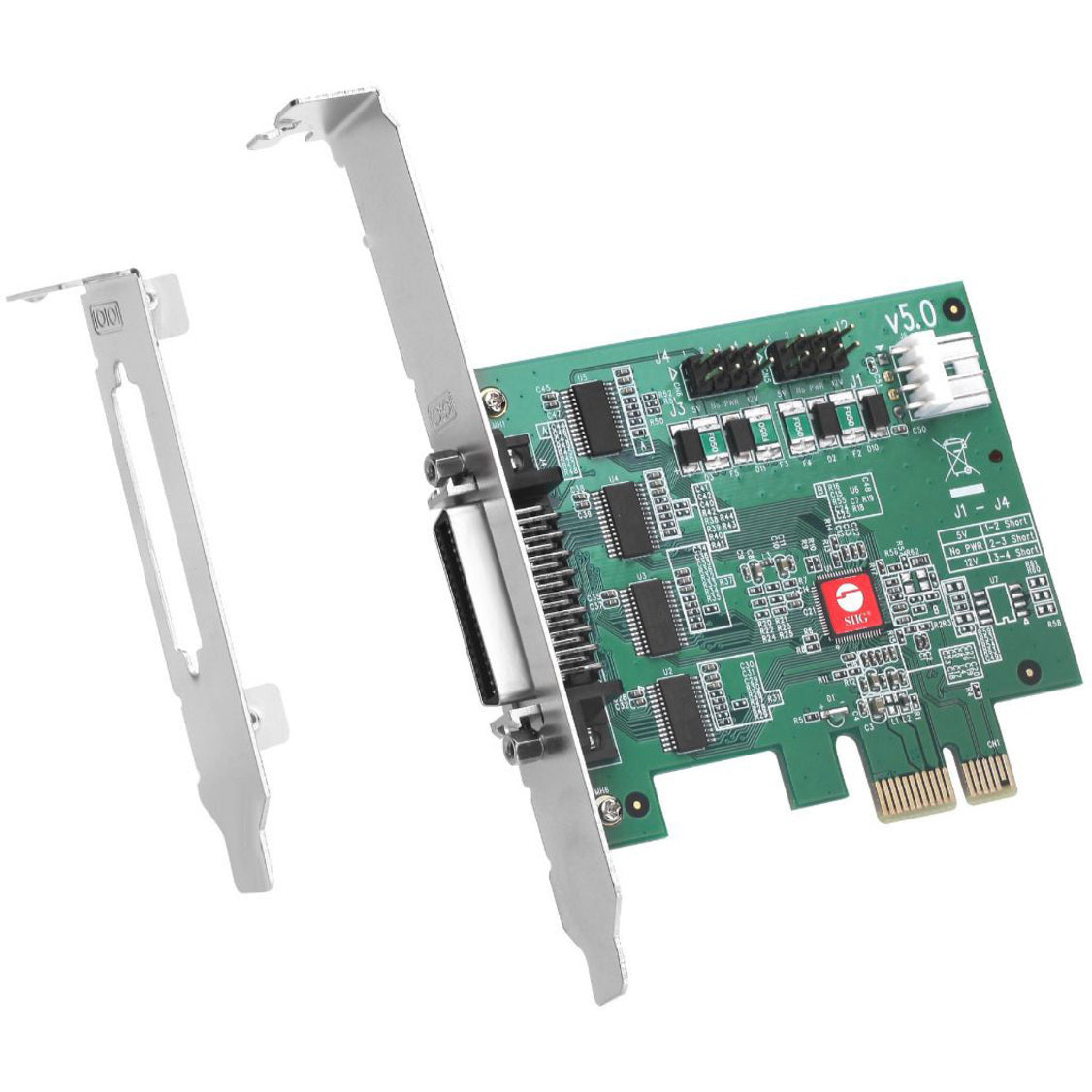

• Dual-profile PCB design fits full size and low-profile system form factor with included full and low profile brackets

More from the Manufacturer

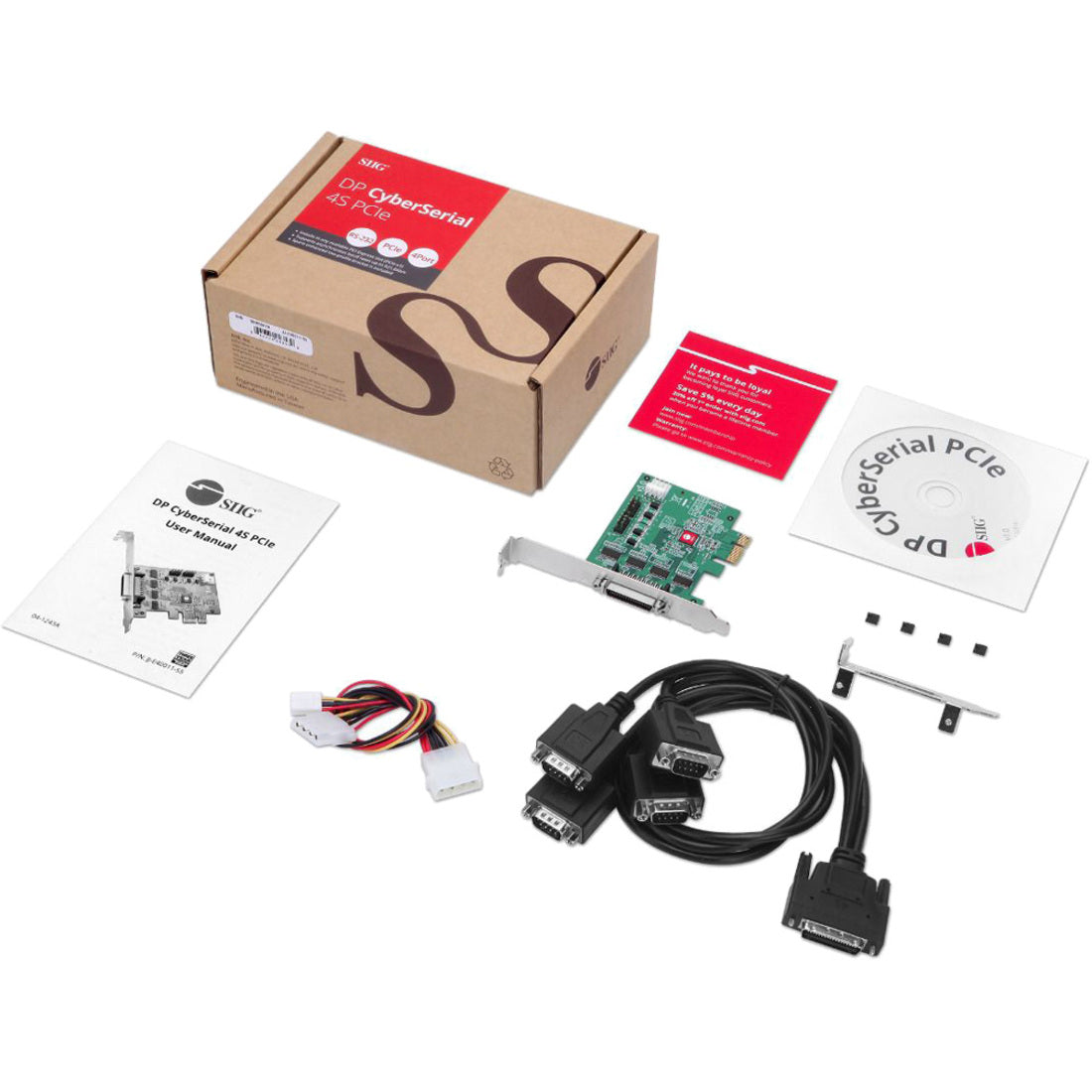

• DP CyberSerial 4S PCIe Board
• Low Profile Bracket
• 4-Port fan-out Cable (DFP-36pin)
• Y-Split Power Cable
• 4 x Voltage Jumper
• Driver CD
• User Manual
