Draper Access E 165" 16:10 Matt White XT1000E 110 V

Draper Access E 165" 16:10 Matt White XT1000E 110 V

SKU: 1030080693      MFR: Draper Inc

Product Description

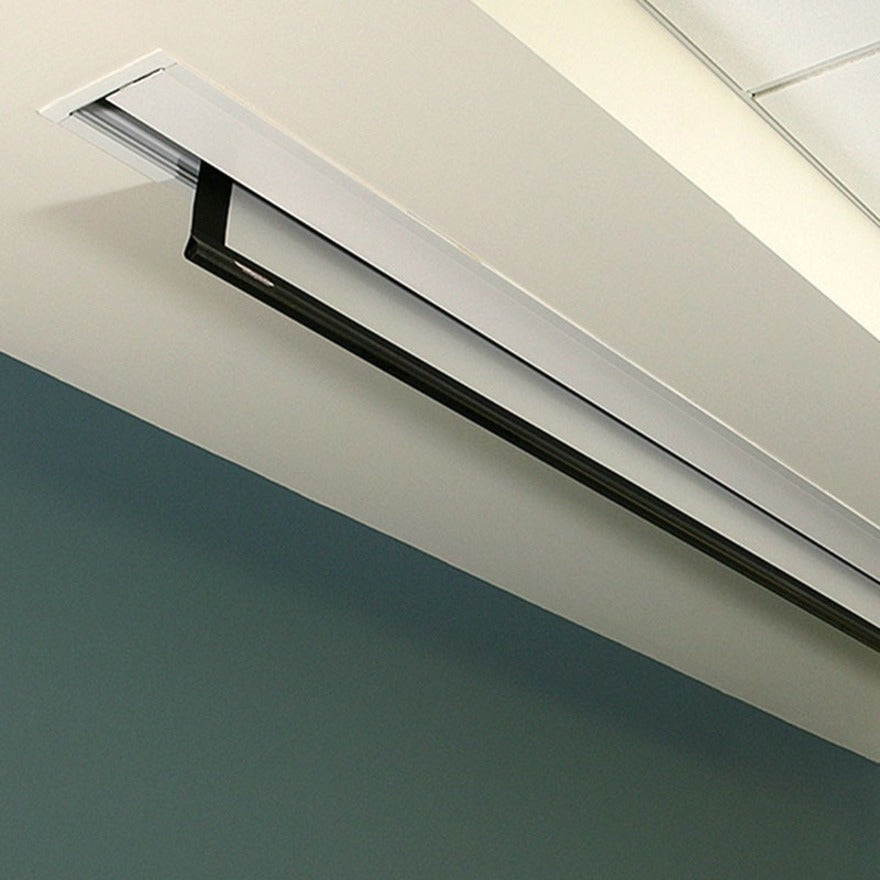

Draper Access E 165" 16:10 Matt White XT1000E 110 V - 16:10 - Matt White XT1000E - 91.5" x 144" - Recessed/In-Ceiling Mount

Manufacturer : Draper Inc

Manufacturer Part No : 139042

Features

  • Case dimensions are 7-3/8" high x 8-1/16" deep (19 cm x 20 cm) includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions see Submittal in the Technical Documents tab for details.
  • Maximum image width up to 16' (488 cm) wide depending on surface selection.
  • The standard Access is a good alternative whenever the above-ceiling space permits. Access Fit is recommended when space is at a premium.
  • Adjustable or removable hoisting brackets included for easy lifting during installation.
  • Black drop standard depending on screen size. Extra drop above image area available upon request. Extra drop may increase case size.
  • Sliding brackets on top of the case allow for adjustments when mounting.
  • Sliding brackets inside case accommodate different size screens.
  • Bottom closure panel detachable or hangs in place with "T" bracket to provide accessibility for service or maintenance.
  • Quick-connect wiring allows for early installation of the case with the addition of the screen later.
  • Includes a 110V 3-position switch (standard). Quiet low voltage motors and 220V options are available.
  • Low voltage video interface or other controls can be built into housing for access from below ceiling.

Product Details

Product TypeProjection Screen
Screen Folding MechanismElectric
Screen Height91.5"
Screen Width144"
Brand NameDraper
Screen FabricMatt White XT1000E
ManufacturerDraper Inc
Product NameAccess E 165" 16:10 Matt White XT1000E 110 V
Mount TypeRecessed/In-Ceiling Mount
Diagonal Image Size165"
Product LineAccess E
Aspect Ratio16:10
Manufacturer Part Number139042
Manufacturer Website Addresshttp://www.draperinc.com
Marketing InformationThe ceiling-recessed Access E projection screen works well in universities board rooms training rooms or home theaters. Ceiling-recessed screens are hidden from view when not in use providing complete concealment. Free-hanging screens maintain flatness due to the weight of the viewing surface and bottom dowel. The case can be installed during the initial construction phase allowing the screen to be installed later to eliminate job site damage. Case includes a bottom access panel for easy service and maintenance.
Package Contents
  • Access E 165" 16:10 Matt White XT1000E 110 V
  • Case
  • Hoisting Brackets
  • 1 x 110V 3-Position Switch
    •
    Limited Warranty5 Year
    Weight (Approximate)104 lb
    Product FamilyAccess E
    View full details
    $4,170.99 USD
    $4,170.99
    Sale Sold out

    Out Of Stock


    Update


    Shipping calculated at checkout.
