Draper Access V 113" Electric Projection Screen

Draper Access V 113" Electric Projection Screen

SKU: 1064682290      MFR: Draper Inc

Product Description

Draper Access V 113" Electric Projection Screen - 16:10 - Matt White XT1000VB - 60" x 96" - Recessed/In-Ceiling Mount

Manufacturer : Draper Inc

Manufacturer Part No : 140113U

Features

  • Case dimensions are 7-3/8" high x 8-1/16" deep (19 cm x 20 cm) includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions see Submittal in the Technical Documents tab for details.
  • Maximum image width up to 16' (488 cm) wide depending on surface selection.
  • The standard Access is a good alternative whenever the above-ceiling space permits. Access Fit is recommended when space is at a premium.
  • Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.
  • Adjustable or removable hoisting brackets included for easy lifting during installation.
  • Sliding brackets on top of the case allow for adjustments for mounting.
  • Sliding brackets inside case accommodate different size screens.
  • Bottom closure panel detachable or hangs in place with "T" bracket to provide accessibility for service or maintenance.
  • Quick-connect wiring allows for early installation of the case with the addition of the screen later.
  • Low voltage video interface or other controls can be built into housing for below ceiling access.

Product Details

Screen Folding MechanismElectric
Screen Height60"
Screen Width96"
Product ColorWhite
Brand NameDraper
Screen FabricMatt White XT1000VB
ManufacturerDraper Inc
Product NameAccess V Electric Projection Screen
Mount TypeRecessed/In-Ceiling Mount
Diagonal Image Size113"
Product LineAccess V
Aspect Ratio16:10
Manufacturer Part Number140113U
Manufacturer Website Addresshttp://www.draperinc.com
Marketing Information

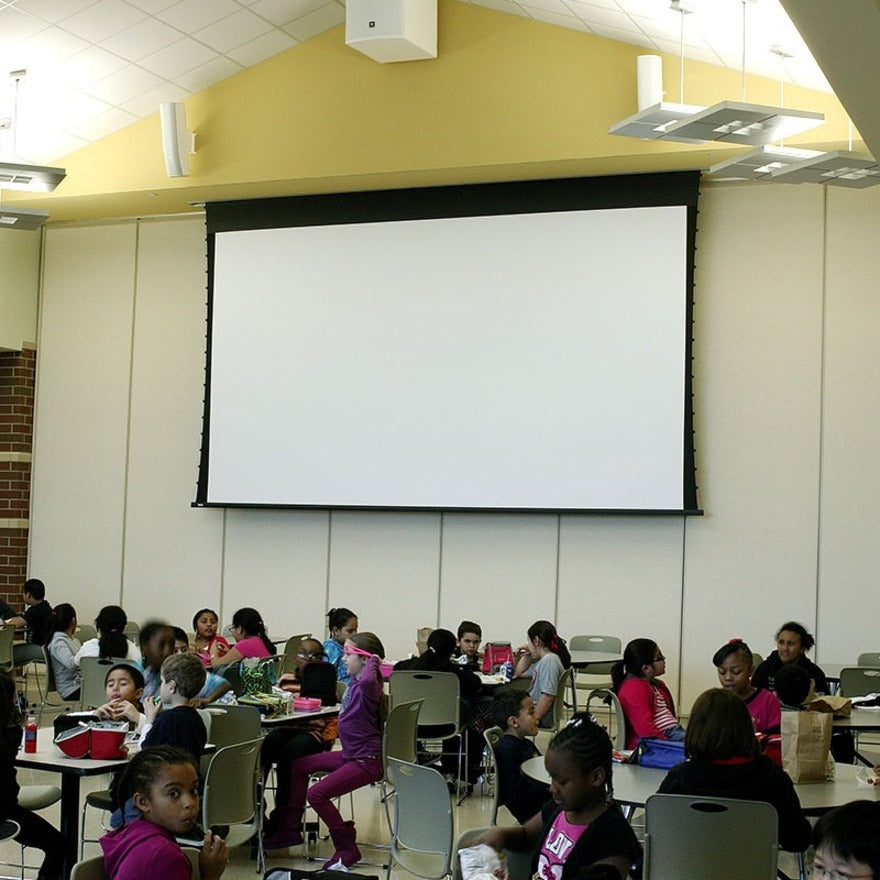

The ceiling-recessed Access V projection screen works well in universities board rooms training rooms or home theaters. Ceiling-recessed screens are hidden from view when not in use providing complete concealment. Tab-tensioned screens offer a perfectly flat viewing surface and RF welded tabs for a more durable seal. The case can be installed during the initial construction phase allowing the screen to be installed later to eliminate job site damage. Case includes a bottom access panel for easy service and maintenance.
Limited Warranty5 Year
Weight (Approximate)84 lb
Product TypeProjection Screen
Product FamilyAccess V
Environmentally FriendlyYes
Environmental CertificationGREENGUARD Gold
