Draper Access V 137" 16:10 Matt White XT1000V 110 V
Draper Access V 137" 16:10 Matt White XT1000V 110 V
SKU: 1030092800 MFR: Draper Inc
Product Description

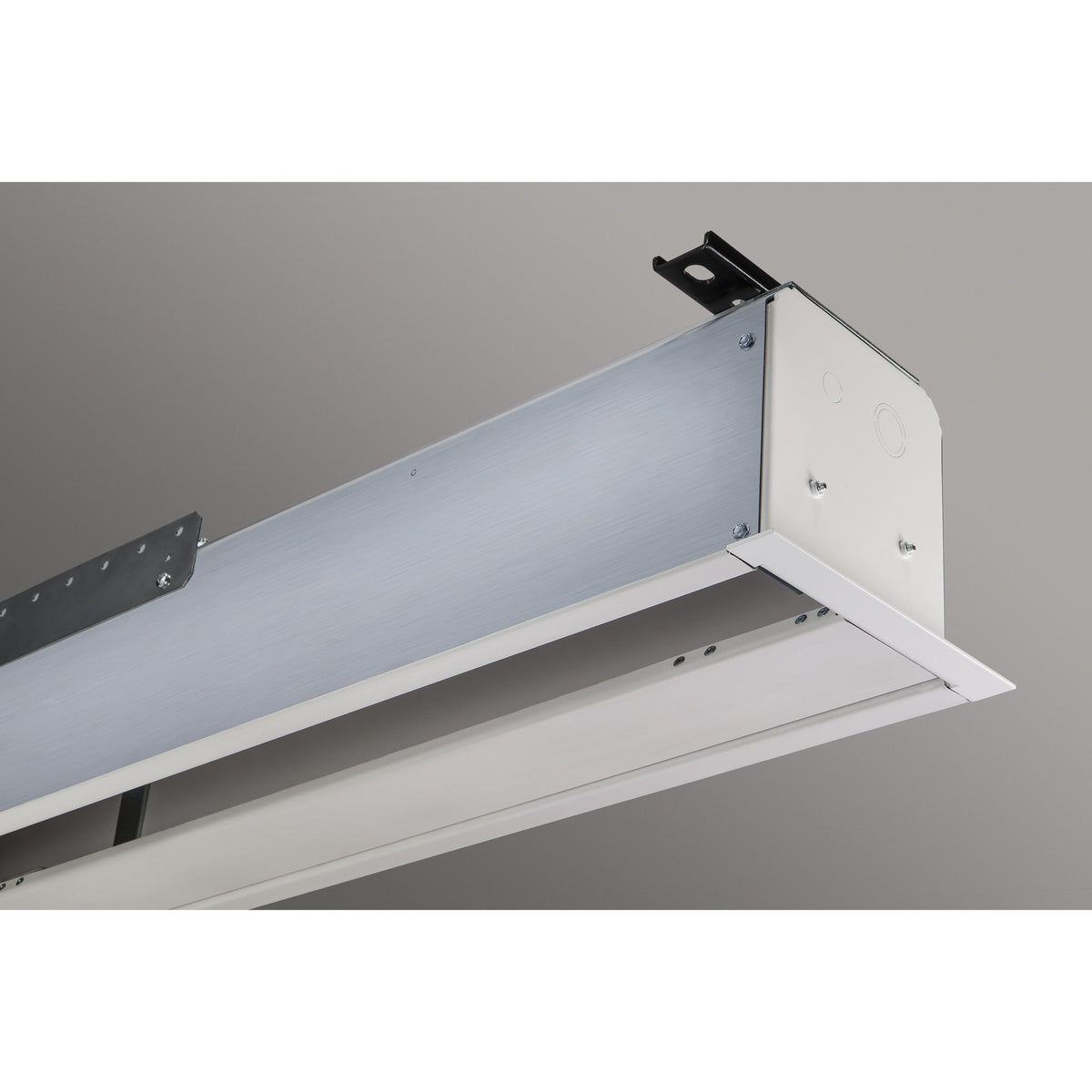

Draper Access V 137" 16:10 Matt White XT1000V 110 V - 16:10 - Matt White XT1000VB - Recessed/In-Ceiling Mount
Manufacturer : Draper Inc
Manufacturer Part No : 140039
Features
- Case dimensions are 7-3/8" high x 8-1/16" deep (19 cm x 20 cm) includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions see Submittal in the Technical Documents tab for details.
- Maximum image width up to 16' (488 cm) wide depending on surface selection.
- The standard Access is a good alternative whenever the above-ceiling space permits. Access Fit is recommended when space is at a premium.
- Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.
- Adjustable or removable hoisting brackets included for easy lifting during installation.
- Sliding brackets on top of the case allow for adjustments for mounting.
- Sliding brackets inside case accommodate different size screens.
- Bottom closure panel detachable or hangs in place with "T" bracket to provide accessibility for service or maintenance.
- Quick-connect wiring allows for early installation of the case with the addition of the screen later.
- Low voltage video interface or other controls can be built into housing for below ceiling access.
- Includes a 110V 3-position switch (standard). Quiet low voltage motors and 220V options are available.
- White case standard black available upon request.
Product Details
Out Of Stock
Update
Couldn't load pickup availability
![Draper Access V 137" 16:10 Matt White XT1000V 110 V](http://tekmentum.com/cdn/shop/files/1030092800_89c8d8c3-ff96-4587-bf34-305b47ad25db.jpg?v=1698379538&width=1445)
![Draper Access V 137" 16:10 Matt White XT1000V 110 V](http://tekmentum.com/cdn/shop/files/1030092800_41de3893-6b48-4941-9eb0-d2b5fae13971.jpg?v=1698379538&width=1445)
![Draper Access V 137" 16:10 Matt White XT1000V 110 V](http://tekmentum.com/cdn/shop/files/1030092800_fc0eb09a-0d5a-425d-9a12-5d6dfa5411b2.jpg?v=1698379538&width=1445)
![Draper Access V 137" 16:10 Matt White XT1000V 110 V](http://tekmentum.com/cdn/shop/files/1030092800_82181a1f-18c8-40d3-a971-e9ba90130f0f.jpg?v=1698379538&width=1445)
![Draper Access V 137" 16:10 Matt White XT1000V 110 V](http://tekmentum.com/cdn/shop/files/1030092800_ffc47159-4a57-45ba-9614-a83adbf99c37.jpg?v=1698379538&width=1445)
![Draper Access V 137" 16:10 Matt White XT1000V 110 V](http://tekmentum.com/cdn/shop/files/1030092800_1c202ccb-4fbc-45c9-881c-6048ccb37ee0.jpg?v=1698379538&width=1445)
![Draper Access V 137" 16:10 Matt White XT1000V 110 V](http://tekmentum.com/cdn/shop/files/1030092800_37ceab1f-b185-4337-846c-e46d968f04d1.jpg?v=1698379538&width=1445)
![Draper Access V 137" 16:10 Matt White XT1000V 110 V](http://tekmentum.com/cdn/shop/files/1030092800_9282d998-440f-4257-8db0-0bd63d377b84.jpg?v=1698379538&width=1445)
![Draper Access V 137" 16:10 Matt White XT1000V 110 V](http://tekmentum.com/cdn/shop/files/1030092800_4297e59f-6383-41b3-98f6-f52ec2da6f38.jpg?v=1698379538&width=1445)
![Draper Access V 137" 16:10 Matt White XT1000V 110 V](http://tekmentum.com/cdn/shop/files/1030092800_99f6873e-3919-4e67-b5f5-187f4aeb175c.jpg?v=1698379538&width=1445)
Draper Access V 137" 16:10 Matt White XT1000V 110 V - 16:10 - Matt White XT1000VB - Recessed/In-Ceiling Mount
Manufacturer : Draper Inc
Manufacturer Part No : 140039
Features
- Case dimensions are 7-3/8" high x 8-1/16" deep (19 cm x 20 cm) includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions see Submittal in the Technical Documents tab for details.
- Maximum image width up to 16' (488 cm) wide depending on surface selection.
- The standard Access is a good alternative whenever the above-ceiling space permits. Access Fit is recommended when space is at a premium.
- Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.
- Adjustable or removable hoisting brackets included for easy lifting during installation.
- Sliding brackets on top of the case allow for adjustments for mounting.
- Sliding brackets inside case accommodate different size screens.
- Bottom closure panel detachable or hangs in place with "T" bracket to provide accessibility for service or maintenance.
- Quick-connect wiring allows for early installation of the case with the addition of the screen later.
- Low voltage video interface or other controls can be built into housing for below ceiling access.
- Includes a 110V 3-position switch (standard). Quiet low voltage motors and 220V options are available.
- White case standard black available upon request.
Product Details
