• Eaton 480W 24V DC DIN Rail Industrial UPS - Hardwire Input/Output

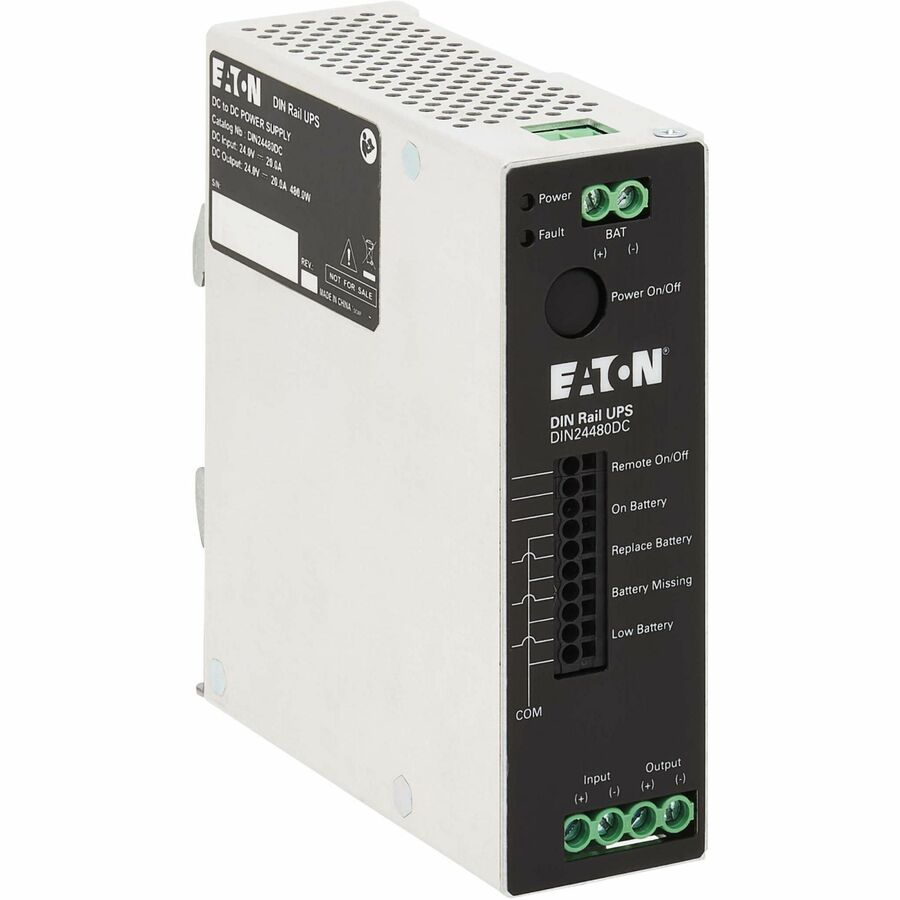

    Eaton 480W 24V DC DIN Rail Industrial UPS - Hardwire Input/Output
1 1

Eaton 480W 24V DC DIN Rail Industrial UPS - Hardwire Input/Output

Eaton 480W 24V DC DIN Rail Industrial UPS - Hardwire Input/Output

SKU: 1077074116      MFR: Eaton Corporation

GTIN: 37332279330

Product Description

Eaton 480W 24V DC DIN Rail Industrial UPS - Hardwire Input/Output - Basic - NEMA 5-20P NEMA L5-20P - 24 x NEMA 5-20R - 120 V AC - 1920 W - Vertical - Rack-mountable

Manufacturer : Eaton Corporation

Manufacturer Part No : DIN24480DC

Features

  • Recommended for industrial locations where temperatures range within 0°C and 50°C
  • Protects equipment against blackouts brownouts overvoltages surges and line noise
  • Keeps power running during brief outages to allow time for safe system shutdown
  • Built-in clamp mounts easily to a "top hat" 35mm DIN rail with no mounting screws or brackets required
  • Requires Eaton BPDIN24XL extended battery module for operation (sold separately)
  • Add up to 4 external battery modules (BPDIN24XL) to extend backup runtime
  • 2-year limited warranty

Product Details

Product TypeStandby UPS
PhaseSingle Phase
Receptacle TypeHardwired
Environmentally FriendlyYes
Environmental CertificationREACH
Maximum Operating Temperature122°F (50°C)
Backup/Run Time (Half Load)10 Minute
Backup/Run Time (Full Load)3 Minute
Battery CharacteristicsValve-regulated
DC System Voltage24 V DC
EPO PortYes
Maximum Operating Elevation6561 ft
Storage Temperature5°F (-15°C) - 104°F (40°C)
Output Power Factor1
Receptacle Detail1 x Hardwired
Sound Emission (A-Weighted)40 dB(A)
Height5"
Width1.5"
Depth4.8"
Brand NameEaton
Plug/Connector TypeHardwired
Form FactorDIN Rail
Status Indicators

LED Indicators:

  • POWER (GREEN)
  • LINE MODE ON (SOLID)
  • BATTERY MODE (FLASHING)
  • FAULT (RED) - FLASHING
Load Capacity480 VA/480 W
ManufacturerEaton Corporation
Product ModelDIN24480DC
Product NameDIN24480DC 480VA DIN Rail UPS
DisplayLED
Application/UsageEdge Computing
Input Voltage24 V DC
Manufacturer Part NumberDIN24480DC
Manufacturer Website Addresshttp://www.eaton.com
Marketing Information

Flexible Power Protection for Smart Industrial Applications

The DIN24480DC standby UPS system with hardwire DC input/output delivers reliable power and battery backup for computing networking control and storage equipment in factories warehouses edge computing locations and automated manufacturing and fabrication facilities. The rugged compact housing withstands demanding conditions and integrates seamlessly and securely into electrical enclosures in any non-traditional IT environment.

Ideal for Factory Floors and Extreme Temperatures

Get full use of the DIN24480DC's power capacity because there is no derating based on its operating temperature range of 0°C (32°F) to 50°C (122°F) which expands the number of locations in which it can be used. Built to fit into small spaces the DIN24480DC is a UL 508 recognized component for use in industrial panels. Its pre-installed clamp enables quick mounting to a 35 mm DIN rail. Its fanless design reduces noise and increases reliability.

Reliable Battery Backup Keeps You Operational Through Power Outages

Power outages not only drain productivity from the factory floor but they also damage expensive equipment. The DIN24480DC protects productivity by providing enough runtime to maintain operation during a brief power outage and protects equipment by allowing it to complete an operation during an extended outage. It also prevents brownouts overvoltages surges and line noise from damaging equipment that could destroy data and contribute to costly downtime.

Stay in Control of Your Operation

LEDs on the front panel confirm normal operation and indicate alarm or fault status. Remote on/off can help you avoid maintenance surprises. The DIN24480DC has dry contacts for battery status and UPS communication.

Easy Preventative Maintenance and Initial Troubleshooting

The DIN24480DC requires connection of the BPDIN24XL external battery module (sold separately). Up to four battery modules can be connected to extend backup runtime. The self-test capability can extend the life of the UPS and minimize disruption to operations.
Battery ChemistryLead Acid
Package Contents
  • DIN24480DC 480VA DIN Rail UPS
  • Safety Card
  • Owner's Manual
Limited Warranty2 Year
Output Voltage24 V DC
Weight (Approximate)14.40 oz
Load Capacity (VA)480 VA
Load Capacity (W)480 W
