Flexible Power Protection for Smart Industrial Applications

The DIN850AC standby UPS system with hardwire AC input/output delivers reliable power and battery backup for computing networking control and storage equipment in factories warehouses edge computing locations and automated manufacturing and fabrication facilities. The rugged compact housing withstands demanding conditions and integrates seamlessly and securely into electrical enclosures in any non-traditional IT environment.

Ideal for Factory Floors and Extreme Temperatures

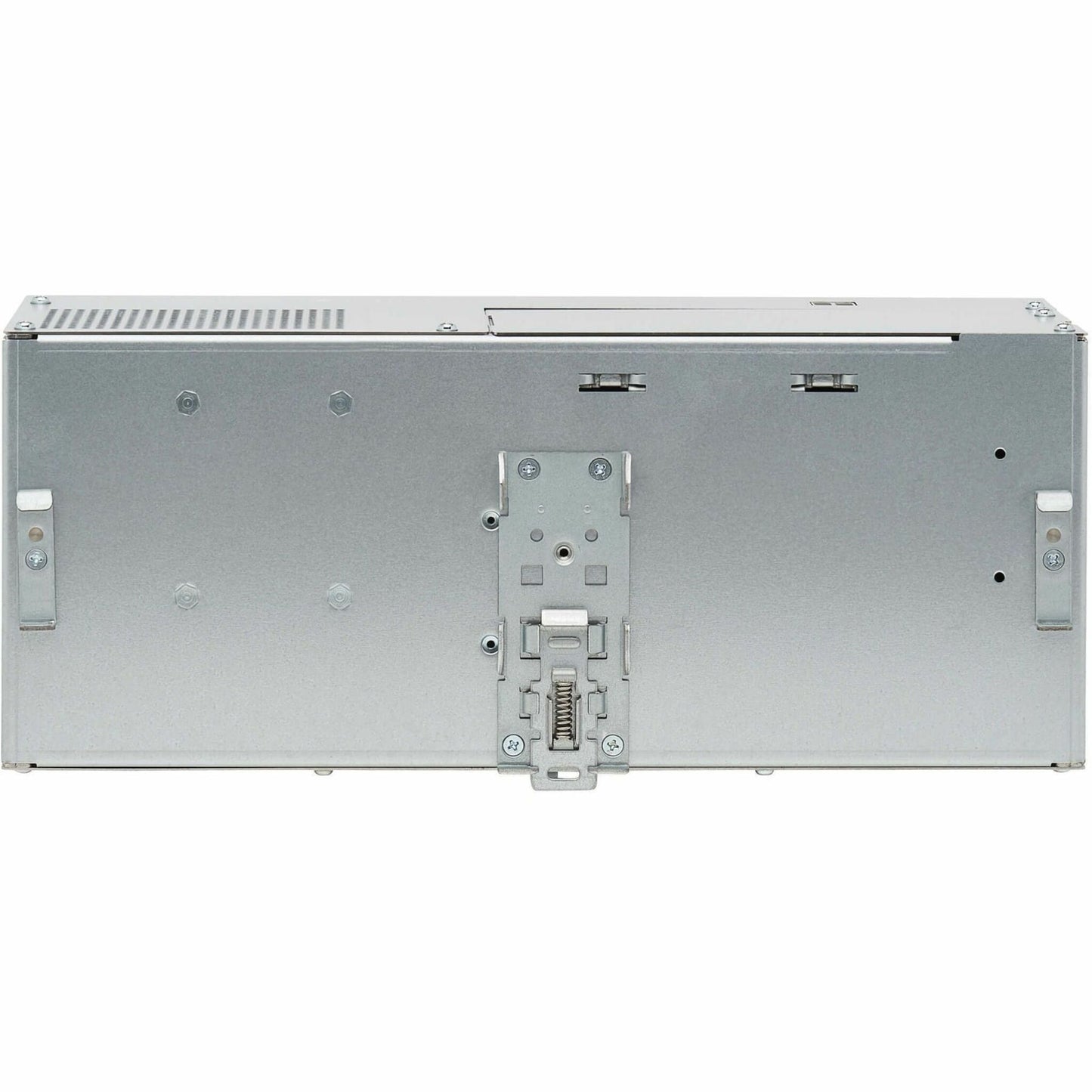

Get full use of the DIN850AC's power capacity because there is no derating based on its operating temperature range of 0°C (32°F) to 50°C (122°F) which expands the number of locations in which it can be used. Built to fit into small spaces the DIN850AC is a UL 508 recognized component for use in industrial panels. Its pre-installed clamp enables quick mounting to a 35 mm DIN rail. Its fanless design reduces noise and increases reliability.

Reliable Battery Backup Keeps You Operational Through Power Outages

Power outages not only drain productivity from the factory floor but they also damage expensive equipment. The DIN850AC protects productivity by providing enough runtime to maintain operation during a brief power outage and protects equipment by allowing it to complete an operation during an extended outage. It also prevents brownouts overvoltages surges and line noise from damaging equipment that could destroy data and contribute to costly downtime.

Convenient Automatic Restart

The DIN850AC automatically restarts when AC power is restored after an outage eliminating the need for a costly site visit.

Stay in Control of Your Operation

LEDs on the front panel confirm normal operation and indicate alarm or fault status. Remote on/off and a battery indicator mode can help you avoid maintenance surprises. The DIN850AC is compatible with PowerAlert® Office software for UPS monitoring and control via USB connection.

Easy Preventative Maintenance and Initial Troubleshooting

The DIN850AC's self-test capability and user-replaceable internal battery can extend the life of the UPS and minimize disruption to operations. A resettable circuit breaker helps prevent dangerous system overloads.

• DIN850AC 850VA DIN Rail UPS
• USB Communication Cable
• Safety Card
• Owner's Manual

LED Indicators:

• ALARM - RED - Flashes when the battery needs to be recharged and tested.
• SOLID RED when the unit is subjected to an overload condition.
• YELLOW - ON SOLID when the UPS is supplying battery power to the loads.
• GREEN - ON SOLID GREEN when the line input voltage is normal.
