Metered PDU accommodates both single- and 3-phase power in 120V and 230V environments when paired with a detachable input cord (sold separately).

Features | 12 Detachable Power Cords with 12 Different Plugs Support Universal Input

This G3 universal-input PDU (UPDU) is designed to meet your most diverse rack-power needs. Fully managed with 42 outlets and sophisticated management capabilities the EVMAGU23X-3 accommodates power needs ranging from 5kVA single-phase to 23kVA 3-phase. Just pair the UPDU with one of 12 detachable 10-foot power cords with 12 different plug options (all sold separately). In delivering a broad range this UPDU alleviates the cost and complexity of mixing and matching different PDUs for different installations. It also ensures you won't outgrow your PDU as your power needs evolve.

42 Outlets Give You Plenty of Power Options

The EVMAGU23X-3 features 24 C13 outlets which accept C14 connectors and 18 high-retention P-lock cable-compatible C39 combo outlets which accept both C14 and C20 plugs. This flexibility reduces the number of PDUs your rack requires saving you money effort time and valuable rack space.

Outlet-Level Control Boosts Performance and Efficiency

All 42 outlets provide metering monitoring and switching for granular power data and precision control of power delivery. The outlets are evenly separated along the 72-inch chassis into six color-coded load banks each with its own 20A circuit breaker. You can get more uptime by disabling an outlet or load bank before its connected equipment overloads the system rather than disabling the entire PDU and shutting down all equipment. LEDs show you at a glance which outlets are turned on.

Remote Management Saves Time and Money

Manage the EVMAGU23X-3 via web browser or SNMP integration into DCIM. You can also use monitoring software including Eaton's Intelligent Power Manager (IPM) Visual Power Manager (VPM) or Visual Capacity Optimization Manager (VCOM). Receiving automated alerts about power issues and remotely rebooting the PDU or individual outlets saves you costly on-site visits improves response time and frees up resources for other critical tasks.

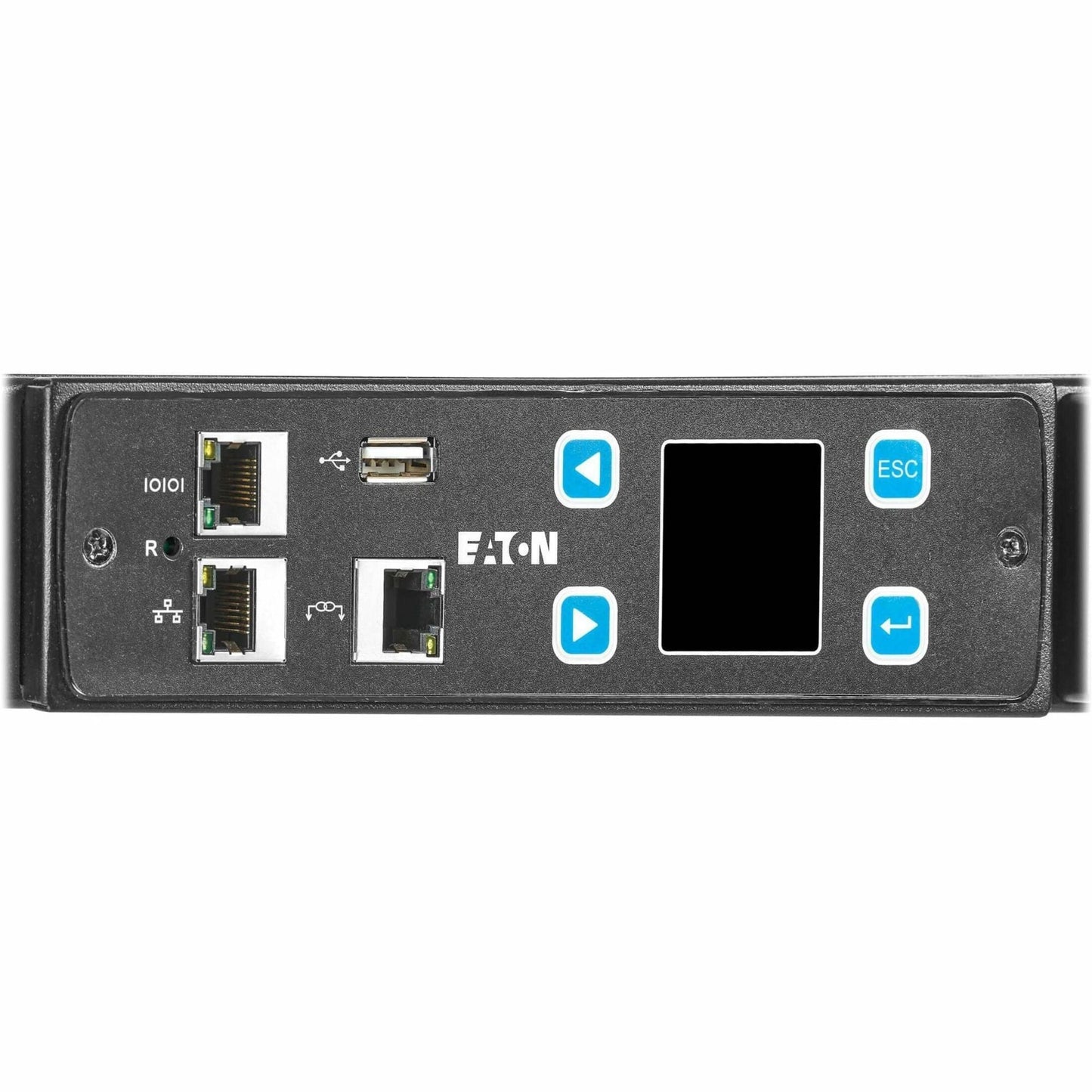

ePDU Network Management and Control Module for Remote Access

The eNMC includes an upgradable network card push-button controls an LCD with outlet-level readings serial/Ethernet ports for environmental monitoring and a USB port for upgrading the firmware. It's hot-swappable so you can remove the module without interrupting power.

• G3 EVMAGU23X-3 42-Outlets PDU
• Cat5e Ethernet Cable 150 mm
• Shielded Ethernet Cable 600 mm
• DB9-to-RJ45 Serial Cable
• 8P8C Y Splitter Cable For Daisy- Chaining
• 2 x M4 x 10 mm Flat-Head Screws
• 2 x Mounting Buttonsl
• Source Label Red
• Source Label Blue
• Wrapping Label Red
• Wrapping Label Blue
• Safety Guide
• Quick Start Guide
