• Eaton Managed rack PDU 0U 5-15P input 1.44 kW max 120V 12A 10 ft cord Single-phase No Circuit Breaker Outlets: (8) 5-15R
    Eaton Managed rack PDU 0U 5-15P input 1.44 kW max 120V 12A 10 ft cord Single-phase No Circuit Breaker Outlets: (8) 5-15R
1 1

Eaton Managed rack PDU 0U 5-15P input 1.44 kW max 120V 12A 10 ft cord Single-phase No Circuit Breaker Outlets: (8) 5-15R

Eaton Managed rack PDU 0U 5-15P input 1.44 kW max 120V 12A 10 ft cord Single-phase No Circuit Breaker Outlets: (8) 5-15R

SKU: 1030073828      MFR: Eaton Corporation

GTIN: 743172079169

Product Description

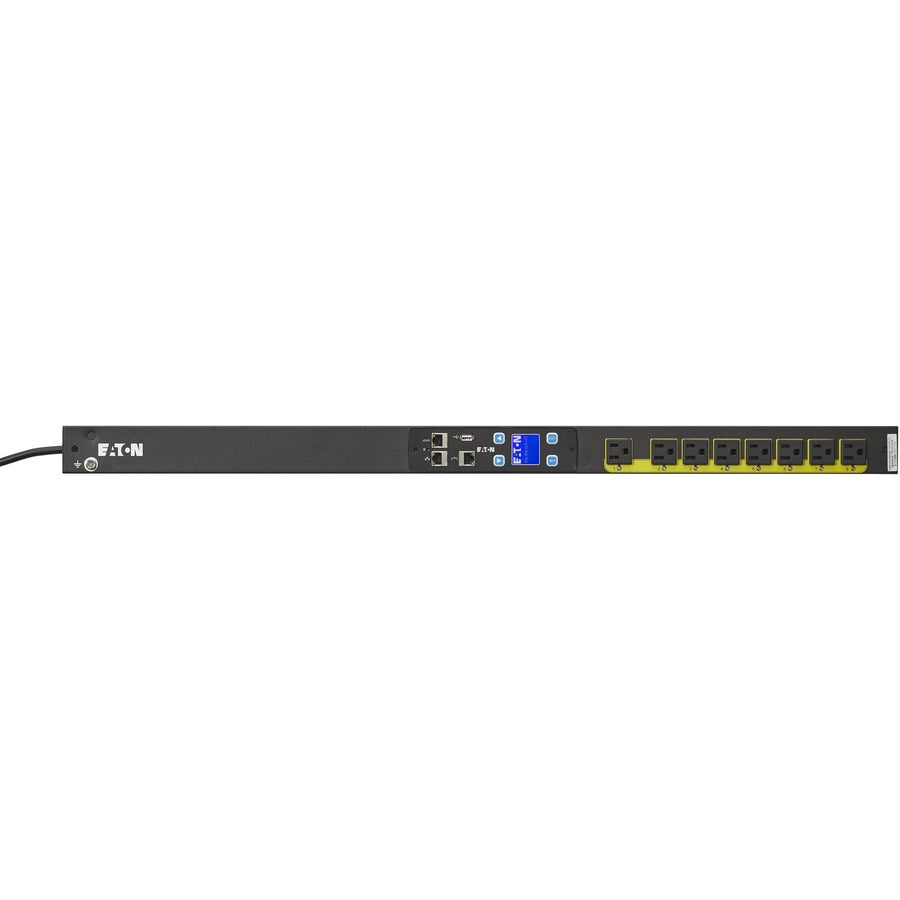

Eaton Managed rack PDU 0U 5-15P input 1.44 kW max 120V 12A 10 ft cord Single-phase No Circuit Breaker Outlets: (8) 5-15R - Switched - NEMA 5-15P - 8 x NEMA 5-15R - 120 V AC - 1440 W - Network (RJ-45) - 21U - Vertical - Rack-mountable

Manufacturer : Eaton Corporation

Manufacturer Part No : EMA111-10

Features

  • Enables on/off/reboot capabilities for a single piece of equipment with outlet-level control
  • Measures outlet-level power consumption and delivers Level 3 PUE to increase accuracy and precision of energy analysis
  • Single-phase and three-phase configurations provide solutions for SMB and networking closets blade server applications and colocation and large data centers
  • Manages entire environment remotely over the network from a single interface
  • ePDU G3 Managed provides ±1% billing grade accuracy an advanced LCD pixel display a hot-swap meter IEC grip outlets color-coded circuits and the ability to daisy chain four ePDUs to share the same network connection and IP address
  • Cisco EnergyWise Certified- Eaton's new ePDUs are Cisco EnergyWise Certified

Product Details

Product TypePDU
Receptacle TypeNEMA 5-15R
Network (RJ-45)Yes
PDU TypeSwitched
Mounting OrientationVertical
Power Rating (Watt)1440 W
Receptacle Detail8 x NEMA 5-15R
Plug/Connector Detail1 x NEMA 5-15P
Country of OriginMorocco
Height35.5"
Width2.1"
Depth2.6"
Product SeriesManaged
Rack Height21U
Brand NameEaton
Plug/Connector TypeNEMA 5-15P
Input Current12 A
ManufacturerEaton Corporation
Product ModelEMA111-10
Product NameePDU Managed EMA111-10 8-Outlets PDU
Mount TypeRack-mountable
Product LineePDU
Input Voltage120 V AC
Manufacturer Part NumberEMA111-10
Manufacturer Website Addresshttp://www.eaton.com
Marketing InformationEaton ePDU G3 Managed technology provides a best-in-class design featuring billing grade accuracy monitoring at the outlet level on a local LCD pixel display or over a network connection. The high accuracy meter will measure current voltage power and energy for load balancing capacity planning efficiency monitoring and energy usage reporting. Outlet switching allows for on off or reboot of individual outlets which reduces the cost of managing remote or local IT data center environments. The robust design is UL rated to operate at 140 degrees F (60 degrees C) ambient operating temperature for containment and high temperature environments.
  • Outlet switching for on off and reboot control to reduce management costs
  • Outlet level metering to +/- 1% billing grade accuracy for customer billing or level 3 PUE calculations
  • LCD pixel display with hot-swap capability enables load balancing and local setup of key parameters such as IP address and display orientation
  • High operating temperature (140 degrees F / 60 degrees C) for containment or hot network closet environments
  • Daisy chain of IP addresses allows four devices to share one network connection to reduce network install costs by up to 75%
  • 120 volt power distribution to 5-20R outlets which accept standard 5-15P wall plug
Package Contents
  • ePDU Managed EMA111-10 8-Outlets PDU
  • ePDU G3 Installation Spare Pack
  • ePDU G3 Network Spare Part Pack
Limited Warranty3 Year
Output Voltage120 V AC
Product FamilyePDU Managed
