• Eaton Managed rack PDU 0U L5-30P input 2.88 kW max 120V 24A 10 foot cord Single-phase
  • Eaton Managed rack PDU 0U L5-30P input 2.88 kW max 120V 24A 10 foot cord Single-phase
1 2

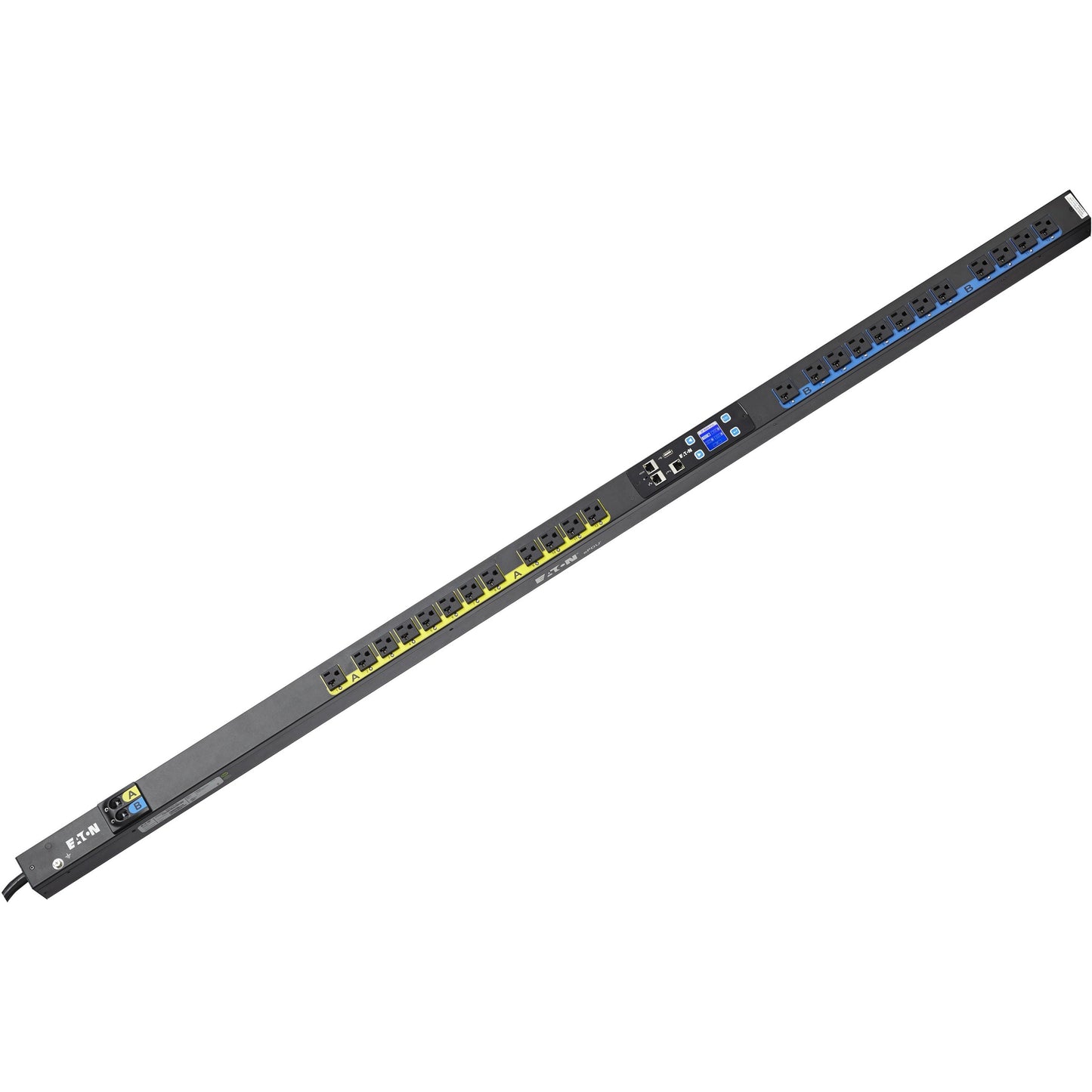

Eaton Managed rack PDU 0U L5-30P input 2.88 kW max 120V 24A 10 foot cord Single-phase

Eaton Managed rack PDU 0U L5-30P input 2.88 kW max 120V 24A 10 foot cord Single-phase

SKU: 1028957675      MFR: Eaton Corporation

GTIN: 743172069177

Product Description

Eaton Managed rack PDU 0U L5-30P input 2.88 kW max 120V 24A 10 foot cord Single-phase - Switched - NEMA L5-30P - 24 x NEMA 5-20R - 120 V AC - 2880 W - Network (RJ-45) - 38U - Vertical

Manufacturer : Eaton Corporation

Manufacturer Part No : EMA108-10

Features

  • Enables on/off/reboot capabilities for a single piece of equipment with outlet-level control
  • Measures outlet-level power consumption and delivers Level 3 PUE to increase accuracy and precision of energy analysis
  • Single-phase and three-phase configurations provide solutions for SMB and networking closets blade server applications and colocation and large data centers
  • Manages entire environment remotely over the network from a single interface
  • ePDU G3 Managed provides ±1% billing grade accuracy an advanced LCD pixel display a hot-swap meter IEC grip outlets color-coded circuits and the ability to daisy chain four ePDUs to share the same network connection and IP address
  • Cisco EnergyWise Certified- Eaton's new ePDUs are Cisco EnergyWise Certified

Product Details

Product TypePDU
Circuit BreakerYes
Input Voltage120 V AC
Output Voltage120 V AC
Manufacturer Part NumberEMA108-10
Manufacturer Website Addresshttp://www.eaton.com
Limited Warranty3 Year
Marketing InformationEaton ePDU G3 Managed technology provides a best-in-class design featuring billing grade accuracy monitoring at the outlet level on a local LCD pixel display or over a network connection. The high accuracy meter will measure current voltage power and energy for load balancing capacity planning efficiency monitoring and energy usage reporting. Outlet switching allows for on off or reboot of individual outlets which reduces the cost of managing remote or local IT data center environments. The robust design is UL rated to operate at 140 degrees F (60 degrees C) ambient operating temperature for containment and high temperature environments.
  • Outlet switching for on off and reboot control to reduce management costs
  • Outlet level metering to +/- 1% billing grade accuracy for customer billing or level 3 PUE calculations
  • LCD pixel display with hot-swap capability enables load balancing and local setup of key parameters such as IP address and display orientation
  • High operating temperature (140 degrees F / 60 degrees C) for containment or hot network closet environments
  • Daisy chain of IP addresses allows four devices to share one network connection to reduce network install costs by up to 75%
  • 120 volt power distribution to 5-20R outlets which accept standard 5-15P wall plug
Input Current24 A
ManufacturerEaton Corporation
Product ModelEMA108-10
Product NameePDU Managed EMA108-10 24-Outlets PDU
Product LineePDU
Certifications & StandardscUL
Product SeriesManaged
Plug/Connector Detail1 x NEMA L5-30P
Product ColorBlack
Receptacle Detail24 x NEMA 5-20R
PDU TypeSwitched
Mounting OrientationVertical
Power Rating (Watt)2880 W
Plug/Connector TypeNEMA L5-30P
Brand NameEaton
Rack Height38U
Cord Length10 ft
Height66.5"
Country of OriginChina
Width2.1"
Depth2.6"
Product FamilyePDU Managed
Receptacle TypeNEMA 5-20R
Network (RJ-45)Yes
Serial PortYes
View full details
$2,134.99 USD
$2,134.99
Sale Sold out

Dropship


Update


Shipping calculated at checkout.

Eaton Managed rack PDU 0U L5-30P input 2.88 kW max 120V 24A 10 foot cord Single-phase - Switched - NEMA L5-30P - 24 x NEMA 5-20R - 120 V AC - 2880 W - Network (RJ-45) - 38U - Vertical

Manufacturer : Eaton Corporation

Manufacturer Part No : EMA108-10

Features

  • Enables on/off/reboot capabilities for a single piece of equipment with outlet-level control
  • Measures outlet-level power consumption and delivers Level 3 PUE to increase accuracy and precision of energy analysis
  • Single-phase and three-phase configurations provide solutions for SMB and networking closets blade server applications and colocation and large data centers
  • Manages entire environment remotely over the network from a single interface
  • ePDU G3 Managed provides ±1% billing grade accuracy an advanced LCD pixel display a hot-swap meter IEC grip outlets color-coded circuits and the ability to daisy chain four ePDUs to share the same network connection and IP address
  • Cisco EnergyWise Certified- Eaton's new ePDUs are Cisco EnergyWise Certified

Product Details

Product TypePDU
Circuit BreakerYes
Input Voltage120 V AC
Output Voltage120 V AC
Manufacturer Part NumberEMA108-10
Manufacturer Website Addresshttp://www.eaton.com
Limited Warranty3 Year
Marketing InformationEaton ePDU G3 Managed technology provides a best-in-class design featuring billing grade accuracy monitoring at the outlet level on a local LCD pixel display or over a network connection. The high accuracy meter will measure current voltage power and energy for load balancing capacity planning efficiency monitoring and energy usage reporting. Outlet switching allows for on off or reboot of individual outlets which reduces the cost of managing remote or local IT data center environments. The robust design is UL rated to operate at 140 degrees F (60 degrees C) ambient operating temperature for containment and high temperature environments.
  • Outlet switching for on off and reboot control to reduce management costs
  • Outlet level metering to +/- 1% billing grade accuracy for customer billing or level 3 PUE calculations
  • LCD pixel display with hot-swap capability enables load balancing and local setup of key parameters such as IP address and display orientation
  • High operating temperature (140 degrees F / 60 degrees C) for containment or hot network closet environments
  • Daisy chain of IP addresses allows four devices to share one network connection to reduce network install costs by up to 75%
  • 120 volt power distribution to 5-20R outlets which accept standard 5-15P wall plug
Input Current24 A
ManufacturerEaton Corporation
Product ModelEMA108-10
Product NameePDU Managed EMA108-10 24-Outlets PDU
Product LineePDU
Certifications & StandardscUL
Product SeriesManaged
Plug/Connector Detail1 x NEMA L5-30P
Product ColorBlack
Receptacle Detail24 x NEMA 5-20R
PDU TypeSwitched
Mounting OrientationVertical
Power Rating (Watt)2880 W
Plug/Connector TypeNEMA L5-30P
Brand NameEaton
Rack Height38U
Cord Length10 ft
Height66.5"
Country of OriginChina
Width2.1"
Depth2.6"
Product FamilyePDU Managed
Receptacle TypeNEMA 5-20R
Network (RJ-45)Yes
Serial PortYes
