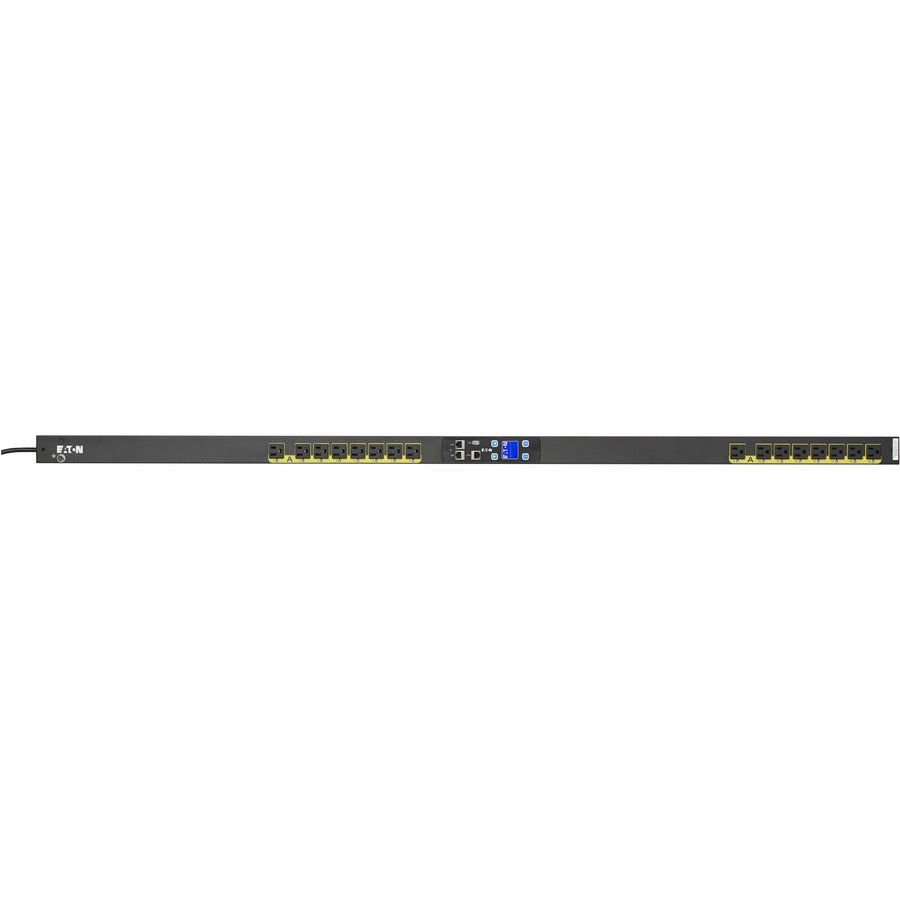

Eaton Managed Rack PDU 1.44 kW max 120V 12A 0U 16 Outlet Single-Phase PDU

Eaton Managed Rack PDU 1.44 kW max 120V 12A 0U 16 Outlet Single-Phase PDU

SKU: 1029668892      MFR: Eaton Corporation

GTIN: 743172078896

Product Description

Eaton Managed Rack PDU 1.44 kW max 120V 12A 0U 16 Outlet Single-Phase PDU - NEMA 5-15P - 16 x NEMA 5-20R - 120 V AC - 1440 W - Network (RJ-45) - 36U - Vertical - Rack-mountable

Manufacturer : Eaton Corporation

Manufacturer Part No : EMA112-10

Features

  • Enables on/off/reboot capabilities for a single piece of equipment with outlet-level control
  • Measures outlet-level power consumption and delivers Level 3 PUE to increase accuracy and precision of energy analysis
  • Single-phase and three-phase configurations provide solutions for SMB and networking closets blade server applications and colocation and large data centers
  • Manages entire environment remotely over the network from a single interface
  • ePDU G3 Managed provides ±1% billing grade accuracy an advanced LCD pixel display a hot-swap meter IEC grip outlets color-coded circuits and the ability to daisy chain four ePDUs to share the same network connection and IP address
  • Cisco EnergyWise Certified- Eaton's new ePDUs are Cisco EnergyWise Certified

Product Details

Product TypePDU
Receptacle TypeNEMA 5-20R
Network (RJ-45)Yes
Mounting OrientationVertical
Power Rating (Watt)1440 W
Receptacle Detail16 x NEMA 5-20R
Plug/Connector Detail1 x NEMA 5-15P
Country of OriginChina
Height66.5"
Width2.1"
Depth2.6"
Rack Height36U
Brand NameEaton
Plug/Connector TypeNEMA 5-15P
Input Current12 A
ManufacturerEaton Corporation
Product NameePDU 16-Outlets PDU
Mount TypeRack-mountable
Product LineePDU
Input Voltage120 V AC
Manufacturer Part NumberEMA112-10
Manufacturer Website Addresshttp://www.eaton.com
Marketing InformationEaton ePDU G3 Managed technology provides a best-in-class design featuring billing grade accuracy monitoring at the outlet level on a local LCD pixel display or over a network connection. The high accuracy meter will measure current voltage power and energy for load balancing capacity planning efficiency monitoring and energy usage reporting. Outlet switching allows for on off or reboot of individual outlets which reduces the cost of managing remote or local IT data center environments. The robust design is UL rated to operate at 140 degrees F (60 degrees C) ambient operating temperature for containment and high temperature environments.
  • Outlet switching for on off and reboot control to reduce management costs
  • Outlet level metering to +/- 1% billing grade accuracy for customer billing or level 3 PUE calculations
  • LCD pixel display with hot-swap capability enables load balancing and local setup of key parameters such as IP address and display orientation
  • High operating temperature (140 degrees F / 60 degrees C) for containment or hot network closet environments
  • Daisy chain of IP addresses allows four devices to share one network connection to reduce network install costs by up to 75%
  • 120 volt power distribution to 5-20R outlets which accept standard 5-15P wall plug
Limited Warranty3 Year
Output Voltage120 V AC
Product FamilyePDU
View full details
$1,355.99 USD
$1,355.99
Sale Sold out

Dropship


Update


Shipping calculated at checkout.

Eaton Managed Rack PDU 1.44 kW max 120V 12A 0U 16 Outlet Single-Phase PDU - NEMA 5-15P - 16 x NEMA 5-20R - 120 V AC - 1440 W - Network (RJ-45) - 36U - Vertical - Rack-mountable

Manufacturer : Eaton Corporation

Manufacturer Part No : EMA112-10

Features

  • Enables on/off/reboot capabilities for a single piece of equipment with outlet-level control
  • Measures outlet-level power consumption and delivers Level 3 PUE to increase accuracy and precision of energy analysis
  • Single-phase and three-phase configurations provide solutions for SMB and networking closets blade server applications and colocation and large data centers
  • Manages entire environment remotely over the network from a single interface
  • ePDU G3 Managed provides ±1% billing grade accuracy an advanced LCD pixel display a hot-swap meter IEC grip outlets color-coded circuits and the ability to daisy chain four ePDUs to share the same network connection and IP address
  • Cisco EnergyWise Certified- Eaton's new ePDUs are Cisco EnergyWise Certified

Product Details

Product TypePDU
Receptacle TypeNEMA 5-20R
Network (RJ-45)Yes
Mounting OrientationVertical
Power Rating (Watt)1440 W
Receptacle Detail16 x NEMA 5-20R
Plug/Connector Detail1 x NEMA 5-15P
Country of OriginChina
Height66.5"
Width2.1"
Depth2.6"
Rack Height36U
Brand NameEaton
Plug/Connector TypeNEMA 5-15P
Input Current12 A
ManufacturerEaton Corporation
Product NameePDU 16-Outlets PDU
Mount TypeRack-mountable
Product LineePDU
Input Voltage120 V AC
Manufacturer Part NumberEMA112-10
Manufacturer Website Addresshttp://www.eaton.com
Marketing InformationEaton ePDU G3 Managed technology provides a best-in-class design featuring billing grade accuracy monitoring at the outlet level on a local LCD pixel display or over a network connection. The high accuracy meter will measure current voltage power and energy for load balancing capacity planning efficiency monitoring and energy usage reporting. Outlet switching allows for on off or reboot of individual outlets which reduces the cost of managing remote or local IT data center environments. The robust design is UL rated to operate at 140 degrees F (60 degrees C) ambient operating temperature for containment and high temperature environments.
  • Outlet switching for on off and reboot control to reduce management costs
  • Outlet level metering to +/- 1% billing grade accuracy for customer billing or level 3 PUE calculations
  • LCD pixel display with hot-swap capability enables load balancing and local setup of key parameters such as IP address and display orientation
  • High operating temperature (140 degrees F / 60 degrees C) for containment or hot network closet environments
  • Daisy chain of IP addresses allows four devices to share one network connection to reduce network install costs by up to 75%
  • 120 volt power distribution to 5-20R outlets which accept standard 5-15P wall plug
Limited Warranty3 Year
Output Voltage120 V AC
Product FamilyePDU
