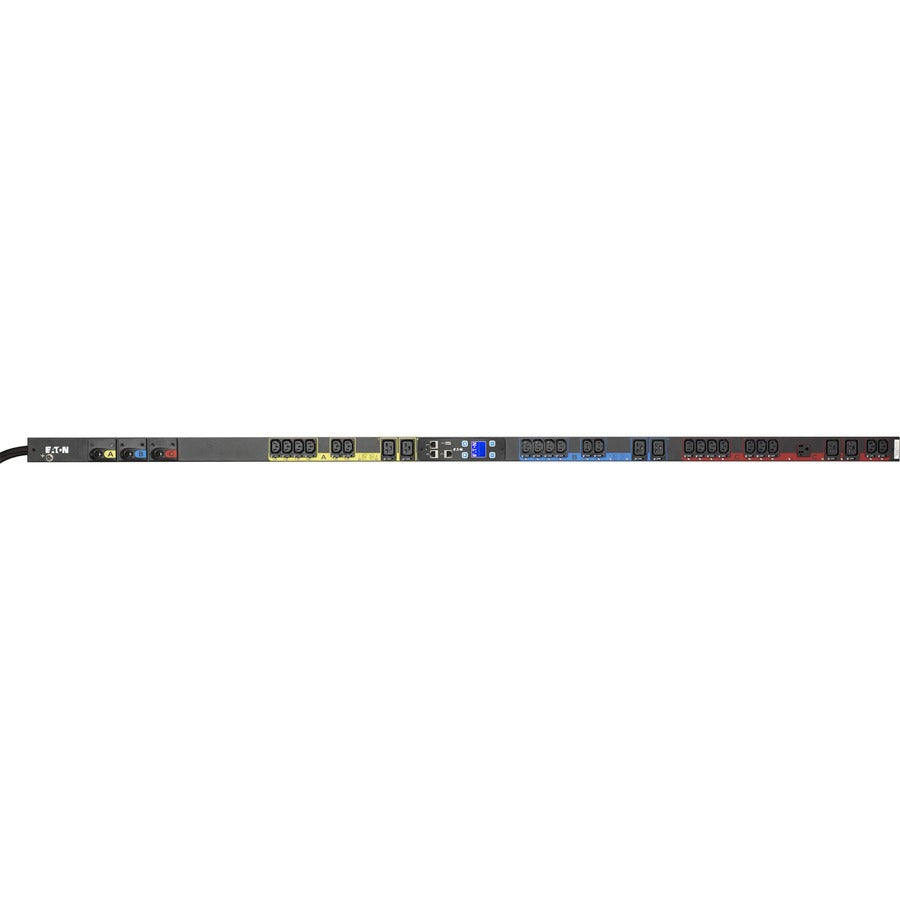

• Eaton Managed Rack PDU 8.64 kW max 120/208V 24A 50-60Hz 0U Three-Phase PDU
1 1

Eaton Managed Rack PDU 8.64 kW max 120/208V 24A 50-60Hz 0U Three-Phase PDU

Eaton Managed Rack PDU 8.64 kW max 120/208V 24A 50-60Hz 0U Three-Phase PDU

SKU: 1029846579      MFR: Eaton Corporation

GTIN: 743172078902

Product Description

Eaton Managed Rack PDU 8.64 kW max 120/208V 24A 50-60Hz 0U Three-Phase PDU - Switched - NEMA L21-30P - 1 x NEMA 5-20R 6 x IEC 60320 C19 21 x IEC 60320 C13 - 120 V AC 230 V AC - 8640 W - Network (RJ-45) - 42U - Rack-mountable

Manufacturer : Eaton Corporation

Manufacturer Part No : EMA333-10

Features

  • Enables on/off/reboot capabilities for a single piece of equipment with outlet-level control
  • Measures outlet-level power consumption and delivers Level 3 PUE to increase accuracy and precision of energy analysis
  • Single-phase and three-phase configurations provide solutions for SMB and networking closets blade server applications and colocation and large data centers
  • Manages entire environment remotely over the network from a single interface
  • ePDU G3 Managed provides ±1% billing grade accuracy an advanced LCD pixel display a hot-swap meter IEC grip outlets color-coded circuits and the ability to daisy chain four ePDUs to share the same network connection and IP address
  • Cisco EnergyWise Certified- Eaton's new ePDUs are Cisco EnergyWise Certified

Product Details

Network (RJ-45)Yes
Height66.5"
Width2.1"
Receptacle TypeNEMA 5-20R
Depth2.6"
PDU TypeSwitched
Power Rating (Watt)8640 W
Plug/Connector TypeNEMA L21-30P
Input Voltage Range120 V AC - 230 V AC
Product SeriesManaged
Rack Height42U
Brand NameEaton
Country of OriginChina
Product LineePDU
Mount TypeRack-mountable
Product NameePDU Managed 28-Outlets PDU
Product FamilyePDU Managed
Receptacle Detail1 x NEMA 5-20R
ManufacturerEaton Corporation
Input Current24 A
Limited Warranty3 Year
Manufacturer Website Addresshttp://www.eaton.com
Marketing InformationEaton ePDU G3 Managed technology provides a best-in-class design featuring billing grade accuracy monitoring at the outlet level on a local LCD pixel display or over a network connection. The high accuracy meter will measure current voltage power and energy for load balancing capacity planning efficiency monitoring and energy usage reporting. Outlet switching allows for on off or reboot of individual outlets which reduces the cost of managing remote or local IT data center environments. The robust design is UL rated to operate at 140 degrees F (60 degrees C) ambient operating temperature for containment and high temperature environments.
  • Outlet switching for on off and reboot control to reduce management costs
  • Outlet level metering to +/- 1% billing grade accuracy for customer billing or level 3 PUE calculations
  • LCD pixel display with hot-swap capability enables load balancing and local setup of key parameters such as IP address and display orientation
  • High operating temperature (140 degrees F / 60 degrees C) for containment or hot network closet environments
  • Daisy chain of IP addresses allows four devices to share one network connection to reduce network install costs by up to 75%
  • IEC outlet grip plug retention secures plugs in place using standard cables
Manufacturer Part NumberEMA333-10
Input Voltage230 V AC
Product TypePDU
Input Voltage120 V AC
View full details
$2,315.99 USD
$2,315.99
Sale Sold out

Out Of Stock


Update


Shipping calculated at checkout.

Eaton Managed Rack PDU 8.64 kW max 120/208V 24A 50-60Hz 0U Three-Phase PDU - Switched - NEMA L21-30P - 1 x NEMA 5-20R 6 x IEC 60320 C19 21 x IEC 60320 C13 - 120 V AC 230 V AC - 8640 W - Network (RJ-45) - 42U - Rack-mountable

Manufacturer : Eaton Corporation

Manufacturer Part No : EMA333-10

Features

  • Enables on/off/reboot capabilities for a single piece of equipment with outlet-level control
  • Measures outlet-level power consumption and delivers Level 3 PUE to increase accuracy and precision of energy analysis
  • Single-phase and three-phase configurations provide solutions for SMB and networking closets blade server applications and colocation and large data centers
  • Manages entire environment remotely over the network from a single interface
  • ePDU G3 Managed provides ±1% billing grade accuracy an advanced LCD pixel display a hot-swap meter IEC grip outlets color-coded circuits and the ability to daisy chain four ePDUs to share the same network connection and IP address
  • Cisco EnergyWise Certified- Eaton's new ePDUs are Cisco EnergyWise Certified

Product Details

Network (RJ-45)Yes
Height66.5"
Width2.1"
Receptacle TypeNEMA 5-20R
Depth2.6"
PDU TypeSwitched
Power Rating (Watt)8640 W
Plug/Connector TypeNEMA L21-30P
Input Voltage Range120 V AC - 230 V AC
Product SeriesManaged
Rack Height42U
Brand NameEaton
Country of OriginChina
Product LineePDU
Mount TypeRack-mountable
Product NameePDU Managed 28-Outlets PDU
Product FamilyePDU Managed
Receptacle Detail1 x NEMA 5-20R
ManufacturerEaton Corporation
Input Current24 A
Limited Warranty3 Year
Manufacturer Website Addresshttp://www.eaton.com
Marketing InformationEaton ePDU G3 Managed technology provides a best-in-class design featuring billing grade accuracy monitoring at the outlet level on a local LCD pixel display or over a network connection. The high accuracy meter will measure current voltage power and energy for load balancing capacity planning efficiency monitoring and energy usage reporting. Outlet switching allows for on off or reboot of individual outlets which reduces the cost of managing remote or local IT data center environments. The robust design is UL rated to operate at 140 degrees F (60 degrees C) ambient operating temperature for containment and high temperature environments.
  • Outlet switching for on off and reboot control to reduce management costs
  • Outlet level metering to +/- 1% billing grade accuracy for customer billing or level 3 PUE calculations
  • LCD pixel display with hot-swap capability enables load balancing and local setup of key parameters such as IP address and display orientation
  • High operating temperature (140 degrees F / 60 degrees C) for containment or hot network closet environments
  • Daisy chain of IP addresses allows four devices to share one network connection to reduce network install costs by up to 75%
  • IEC outlet grip plug retention secures plugs in place using standard cables
Manufacturer Part NumberEMA333-10
Input Voltage230 V AC
Product TypePDU
Input Voltage120 V AC
