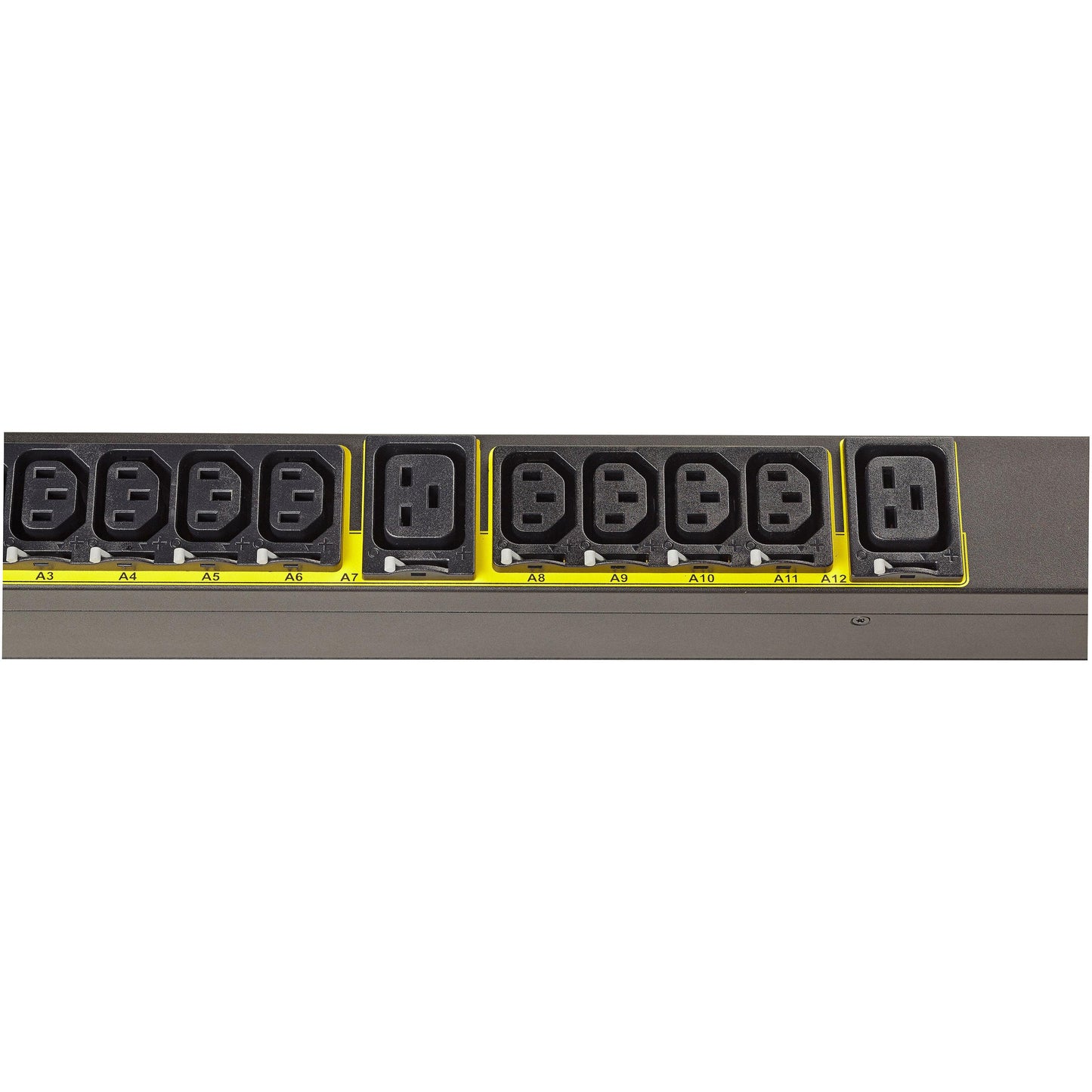

Eaton Managed Rack PDU 8.64 kW max 200-240V 24A 50-60Hz 0U Three-Phase PDU

Eaton Managed Rack PDU 8.64 kW max 200-240V 24A 50-60Hz 0U Three-Phase PDU

SKU: 1028957678      MFR: Eaton Corporation

GTIN: 786685932026

Product Description

Eaton Managed Rack PDU 8.64 kW max 200-240V 24A 50-60Hz 0U Three-Phase PDU - NEMA L15-30P - 6 x IEC 60320 C19 18 x IEC 60320 C13 - 8640 W - Network (RJ-45) - 38U - Vertical

Manufacturer : Eaton Corporation

Manufacturer Part No : EMA326-10

Features

  • Enables on/off/reboot capabilities for a single piece of equipment with outlet-level control
  • Measures outlet-level power consumption and delivers Level 3 PUE to increase accuracy and precision of energy analysis
  • Single-phase and three-phase configurations provide solutions for SMB and networking closets blade server applications and colocation and large data centers
  • Manages entire environment remotely over the network from a single interface
  • ePDU G3 Managed provides ±1% billing grade accuracy an advanced LCD pixel display a hot-swap meter IEC grip outlets color-coded circuits and the ability to daisy chain four ePDUs to share the same network connection and IP address
  • Cisco EnergyWise Certified- Eaton's new ePDUs are Cisco EnergyWise Certified

Product Details

Product TypePDU
Manufacturer Part NumberEMA326-10
Manufacturer Website Addresshttp://www.eaton.com
Marketing InformationEaton ePDU G3 Managed technology provides a best-in-class design featuring billing grade accuracy monitoring at the outlet level on a local LCD pixel display or over a network connection. The high accuracy meter will measure current voltage power and energy for load balancing capacity planning efficiency monitoring and energy usage reporting. Outlet switching allows for on off or reboot of individual outlets which reduces the cost of managing remote or local IT data center environments. The robust design is UL rated to operate at 140 degrees F (60 degrees C) ambient operating temperature for containment and high temperature environments.
  • Outlet switching for on off and reboot control to reduce management costs
  • Outlet level metering to +/- 1% billing grade accuracy for customer billing or level 3 PUE calculations
  • LCD pixel display with hot-swap capability enables load balancing and local setup of key parameters such as IP address and display orientation
  • High operating temperature (140 degrees F / 60 degrees C) for containment or hot network closet environments
  • Daisy chain of IP addresses allows four devices to share one network connection to reduce network install costs by up to 75%
  • IEC outlet grip plug retention secures plugs in place using standard cables
Output Voltage230 V AC
Product NameePDU 24-Outlet PDU
Product LineePDU
ManufacturerEaton Corporation
Input Current24 A
Brand NameEaton
Rack Height38U
Plug/Connector TypeNEMA L15-30P
Input Voltage Range208 V AC - 400 V AC
Country of OriginUnited States
Depth2.6"
Width2.1"
Height66.5"
Network (RJ-45)Yes
Receptacle Detail6 x IEC 60320 C19
Plug/Connector Detail1 x NEMA L15-30P
Mounting OrientationVertical
Power Rating (Watt)8640 W
Receptacle TypeIEC 60320 C19
Product FamilyePDU
