• Eaton Metered Input rack PDU 0U 309-532P6W input 17.3 kW max 240/415V 24A 10 ft cord Three-phase Outlets: (24) C13 (6) C19
1 1

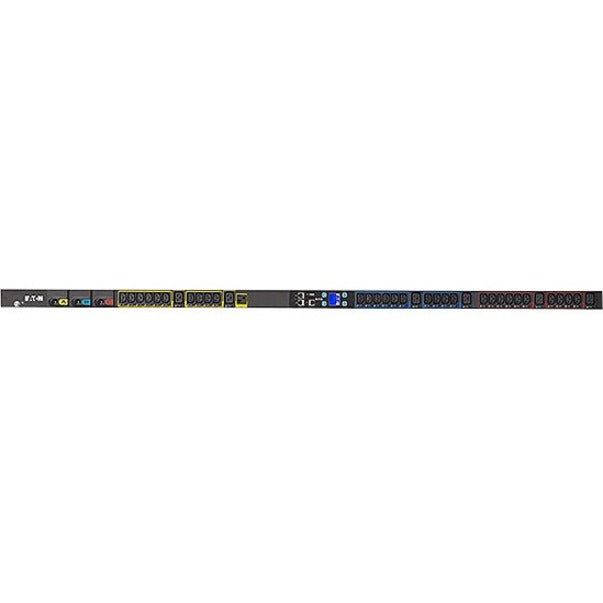

Eaton Metered Input rack PDU 0U 309-532P6W input 17.3 kW max 240/415V 24A 10 ft cord Three-phase Outlets: (24) C13 (6) C19

Eaton Metered Input rack PDU 0U 309-532P6W input 17.3 kW max 240/415V 24A 10 ft cord Three-phase Outlets: (24) C13 (6) C19

SKU: 1027784639      MFR: Eaton Corporation

GTIN: 786685907208

Product Description

Eaton Metered Input rack PDU 0U 309-532P6W input 17.3 kW max 240/415V 24A 10 ft cord Three-phase Outlets: (24) C13 (6) C19 - IEC 60309 532P6 - 24 x IEC 60320 C13 6 x IEC 60320 C19 - 11.50 kW - Network (RJ-45) - 38U - Vertical - Rack-mountable

Manufacturer : Eaton Corporation

Manufacturer Part No : EMI319-10

Features

  • New ePDU G3 models feature ±1% billing grade accuracy an advanced LCD pixel display a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address
  • High density units support up to 25 1U/2U servers or three blade server chassis
  • Easy read digital ammeter reduces local monitoring time
  • Clearly labeled circuits simplify load balancing
  • Reading available via Ethernet connection over a network
  • UL Listed (UL489) branch circuit breakers meet UL60950-1 Edition requirements

Product Details

Rack Height38U
Mount TypeRack-mountable
Input Current24 A
Output Voltage230 V AC
Marketing InformationEaton Metered Input ePDUs

Eaton Metered Input ePDUs provide remote monitoring of the current draw of individual sections via network communication. This capability combined with state-of-the-art software allows you to aggregate the information from many ePDUs in one location. A local display is also available for phase balancing and for easy start-up and provisioning of servers. New ePDU G3 Metered Input models feature best-in-class technologies including ±1% billing grade accuracy an advanced LCD pixel display a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address.
Manufacturer Website Addresshttp://www.eaton.com
Limited Warranty3 Year
Manufacturer Part NumberEMI319-10
Product TypePDU
Circuit BreakerYes
Network (RJ-45)Yes
Receptacle Detail24 x IEC 60320 C13
Plug/Connector Detail1 x IEC 60309 532P6
Mounting OrientationVertical
Power Rating (Watt)11.50 kW
Receptacle TypeIEC 60320 C13
Product FamilyePDU Metered
Product ColorBlack
Width2.1"
Plug/Connector TypeIEC 60309 532P6
Input Voltage Range230 V AC - 415 V AC
Brand NameEaton
Product SeriesMetered
Product ModelEMI319-10
Product NameePDU Metered EMI319-10 30-Outlet PDU
Product LineePDU
ManufacturerEaton Corporation
Country of OriginUnited States
Cord Length10 ft
Height66.5"
Depth2.1"
Serial PortYes
View full details
$2,903.99 USD
$2,903.99
Sale Sold out

Back Order

Get it by Fri, Feb 06 - Wed, Feb 11


Update


Shipping calculated at checkout.

Eaton Metered Input rack PDU 0U 309-532P6W input 17.3 kW max 240/415V 24A 10 ft cord Three-phase Outlets: (24) C13 (6) C19 - IEC 60309 532P6 - 24 x IEC 60320 C13 6 x IEC 60320 C19 - 11.50 kW - Network (RJ-45) - 38U - Vertical - Rack-mountable

Manufacturer : Eaton Corporation

Manufacturer Part No : EMI319-10

Features

  • New ePDU G3 models feature ±1% billing grade accuracy an advanced LCD pixel display a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address
  • High density units support up to 25 1U/2U servers or three blade server chassis
  • Easy read digital ammeter reduces local monitoring time
  • Clearly labeled circuits simplify load balancing
  • Reading available via Ethernet connection over a network
  • UL Listed (UL489) branch circuit breakers meet UL60950-1 Edition requirements

Product Details

Rack Height38U
Mount TypeRack-mountable
Input Current24 A
Output Voltage230 V AC
Marketing InformationEaton Metered Input ePDUs

Eaton Metered Input ePDUs provide remote monitoring of the current draw of individual sections via network communication. This capability combined with state-of-the-art software allows you to aggregate the information from many ePDUs in one location. A local display is also available for phase balancing and for easy start-up and provisioning of servers. New ePDU G3 Metered Input models feature best-in-class technologies including ±1% billing grade accuracy an advanced LCD pixel display a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address.
Manufacturer Website Addresshttp://www.eaton.com
Limited Warranty3 Year
Manufacturer Part NumberEMI319-10
Product TypePDU
Circuit BreakerYes
Network (RJ-45)Yes
Receptacle Detail24 x IEC 60320 C13
Plug/Connector Detail1 x IEC 60309 532P6
Mounting OrientationVertical
Power Rating (Watt)11.50 kW
Receptacle TypeIEC 60320 C13
Product FamilyePDU Metered
Product ColorBlack
Width2.1"
Plug/Connector TypeIEC 60309 532P6
Input Voltage Range230 V AC - 415 V AC
Brand NameEaton
Product SeriesMetered
Product ModelEMI319-10
Product NameePDU Metered EMI319-10 30-Outlet PDU
Product LineePDU
ManufacturerEaton Corporation
Country of OriginUnited States
Cord Length10 ft
Height66.5"
Depth2.1"
Serial PortYes
