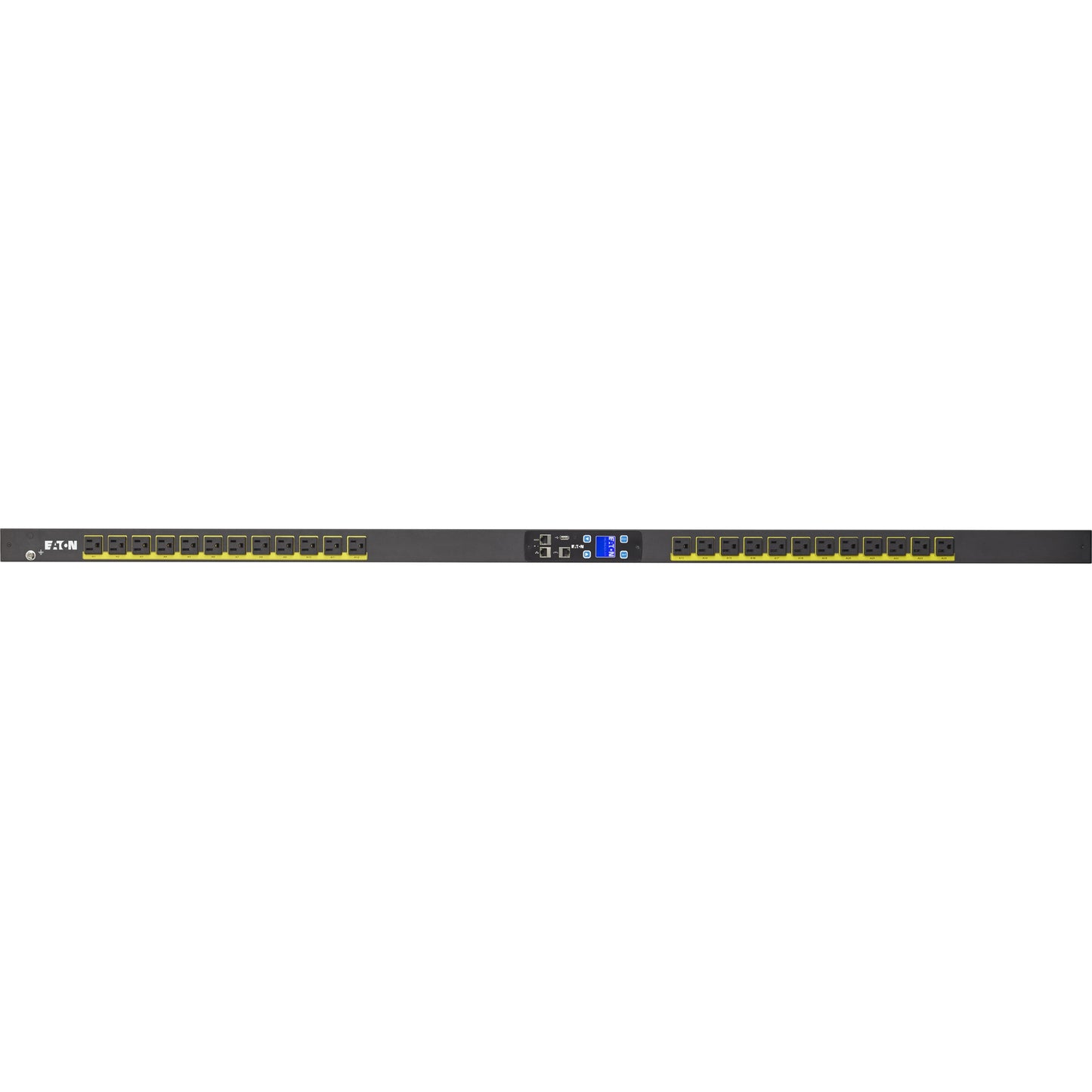

Eaton Metered Input rack PDU 0U 5-15P input 1.44 kW max 120V 12A 10 ft cord Single-phase Outlets: (24) 5-15R

Eaton Metered Input rack PDU 0U 5-15P input 1.44 kW max 120V 12A 10 ft cord Single-phase Outlets: (24) 5-15R

SKU: 1026882703      MFR: Eaton Corporation

GTIN: 743172050366

Product Description

Eaton Metered Input rack PDU 0U 5-15P input 1.44 kW max 120V 12A 10 ft cord Single-phase Outlets: (24) 5-15R - NEMA 5-15P - 24 x NEMA 5-15R - 120 V AC - 1440 W - Network (RJ-45) - 38U - Rack-mountable

Manufacturer : Eaton Corporation

Manufacturer Part No : EMI100-10

Features

  • New ePDU G3 models feature ±1% billing grade accuracy an advanced LCD pixel display a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address
  • High density units support up to 25 1U/2U servers or three blade server chassis
  • Easy read digital ammeter reduces local monitoring time
  • Clearly labeled circuits simplify load balancing
  • Reading available via Ethernet connection over a network
  • UL Listed (UL489) branch circuit breakers meet UL60950-1 Edition requirements

Product Details

USBYes
Receptacle TypeNEMA 5-15R
Width2.1"
Depth2.1"
Country of OriginChina
Cord Length10 ft
Height66.5"
Plug/Connector TypeNEMA 5-15P
Rack Height38U
Brand NameEaton
Network (RJ-45)Yes
Power Rating (Watt)1440 W
Receptacle Detail24 x NEMA 5-15R
Serial PortYes
Product TypePDU
Input Voltage120 V AC
Marketing InformationEaton G3 Metered Input ePDUs provide a best-in-class design featureing billing grade accuracy monitoring of input and branch circuits on a local LCD pixel display or over a network connection. The high accuracy meter will measure current voltage power and energy for load balancing capacity planning efficiency monitoring and energy usage reporting. Designed for IT and data center applications means high reliability and a robust design made for high operating temperatures found in containment or networking closets.
  • Advanced LCD pixel display for local display of current voltage power energy and menu setup of parameters such as IP address or display rotation
  • High operating temperature (140F / 60C) for containment or hot network closet environments
  • Hot-swap meter for servicability of without removing power to the rack
  • +/- 1% billing grade accuracy for high accuracy reporting of energy usage
  • Daisy chain of IP addresses allows four devices to share one network connection
  • Color coded outlet sections simplify load balancing
Weight (Approximate)12.50 lb
Limited Warranty3 Year
Manufacturer Website Addresshttp://www.eaton.com
Circuit BreakerYes
Manufacturer Part NumberEMI100-10
Product FamilyePDU
Product LineePDU
ManufacturerEaton Corporation
Mount TypeRack-mountable
Product NameePDU 24-Outlets PDU
Input Current12 A
Certifications & Standards
  • UL ITE 60950-1
  • FCC
View full details
