• Eaton Metered Input rack PDU 0U L15-30P input 8.64 kW max 200-240V 24A 10 ft cord Three-phase Outlets: (30) C13 Outlet grip (6) C19 Outlet grip
  • Eaton Metered Input rack PDU 0U L15-30P input 8.64 kW max 200-240V 24A 10 ft cord Three-phase Outlets: (30) C13 Outlet grip (6) C19 Outlet grip
  • Eaton Metered Input rack PDU 0U L15-30P input 8.64 kW max 200-240V 24A 10 ft cord Three-phase Outlets: (30) C13 Outlet grip (6) C19 Outlet grip
1 3

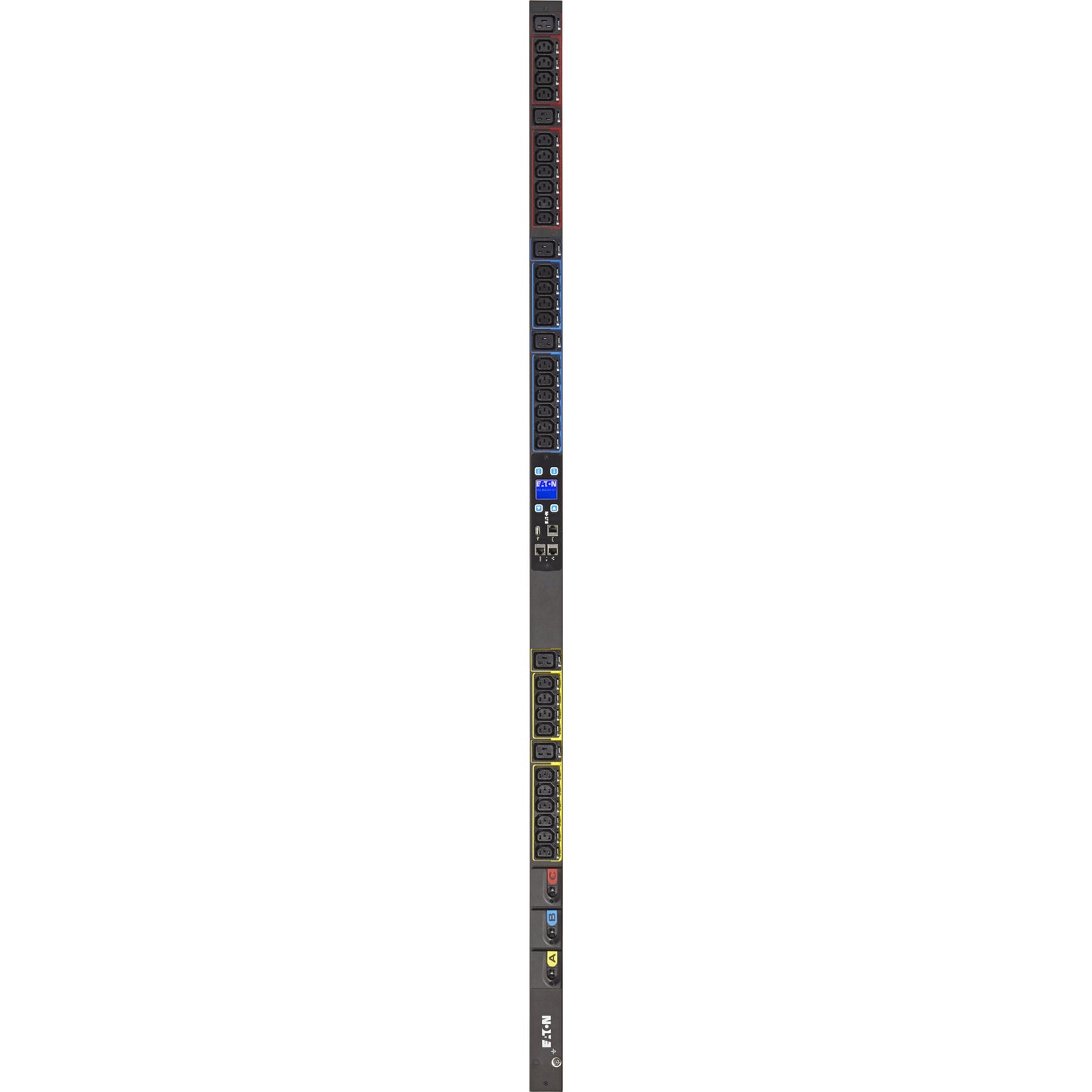

Eaton Metered Input rack PDU 0U L15-30P input 8.64 kW max 200-240V 24A 10 ft cord Three-phase Outlets: (30) C13 Outlet grip (6) C19 Outlet grip

Eaton Metered Input rack PDU 0U L15-30P input 8.64 kW max 200-240V 24A 10 ft cord Three-phase Outlets: (30) C13 Outlet grip (6) C19 Outlet grip

SKU: 1026882711      MFR: Eaton Corporation

GTIN: 786685885049

Product Description

Eaton Metered Input rack PDU 0U L15-30P input 8.64 kW max 200-240V 24A 10 ft cord Three-phase Outlets: (30) C13 Outlet grip (6) C19 Outlet grip - NEMA L15-30P - 24 x NEMA 5-20R - 230 V AC - 8640 W - Network (RJ-45) - 38U - Rack-mountable

Manufacturer : Eaton Corporation

Manufacturer Part No : EMI303-10

Features

  • New ePDU G3 models feature ±1% billing grade accuracy an advanced LCD pixel display a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address
  • High density units support up to 25 1U/2U servers or three blade server chassis
  • Easy read digital ammeter reduces local monitoring time
  • Clearly labeled circuits simplify load balancing
  • Reading available via Ethernet connection over a network
  • UL Listed (UL489) branch circuit breakers meet UL60950-1 Edition requirements

Product Details

Receptacle TypeNEMA 5-20R
Receptacle Detail24 x NEMA 5-20R
Product FamilyePDU
Serial PortYes
Network (RJ-45)Yes
USBYes
Width2.1"
Power Rating (Watt)8640 W
Country of OriginUnited States
Cord Length10 ft
Depth2.1"
Height66.5"
Plug/Connector TypeNEMA L15-30P
Rack Height38U
Brand NameEaton
Manufacturer Part NumberEMI303-10
Input Voltage230 V AC
Marketing InformationEaton G3 Metered Input ePDUs provide a best-in-class design featureing billing grade accuracy monitoring of input and branch circuits on a local LCD pixel display or over a network connection. The high accuracy meter will measure current voltage power and energy for load balancing capacity planning efficiency monitoring and energy usage reporting. Designed for IT and data center applications means high reliability and a robust design made for high operating temperatures found in containment or networking closets.
  • IEC outlet grip plug retention secures plugs in place using standard cables
  • Advanced LCD pixel display for local display of current voltage power energy and menu setup of parameters such as IP address or display rotation
  • High operating temperature (140F / 60C) for containment or hot network closet environments
  • Hot-swap meter for servicability of without removing power to the rack
  • +/- 1% billing grade accuracy for high accuracy reporting of energy usage
  • Daisy chain of IP addresses allows four devices to share one network connection
Manufacturer Website Addresshttp://www.eaton.com
Limited Warranty3 Year
Input Current24 A
Certifications & Standards
  • UL ITE 60950-1
  • FCC
Weight (Approximate)16.50 lb
ManufacturerEaton Corporation
Product NameePDU 36-Outlets PDU
Mount TypeRack-mountable
Product LineePDU
Product TypePDU
Circuit BreakerYes
View full details
$2,071.99 USD
$2,071.99
Sale Sold out

Dropship


Update


Shipping calculated at checkout.

Eaton Metered Input rack PDU 0U L15-30P input 8.64 kW max 200-240V 24A 10 ft cord Three-phase Outlets: (30) C13 Outlet grip (6) C19 Outlet grip - NEMA L15-30P - 24 x NEMA 5-20R - 230 V AC - 8640 W - Network (RJ-45) - 38U - Rack-mountable

Manufacturer : Eaton Corporation

Manufacturer Part No : EMI303-10

Features

  • New ePDU G3 models feature ±1% billing grade accuracy an advanced LCD pixel display a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address
  • High density units support up to 25 1U/2U servers or three blade server chassis
  • Easy read digital ammeter reduces local monitoring time
  • Clearly labeled circuits simplify load balancing
  • Reading available via Ethernet connection over a network
  • UL Listed (UL489) branch circuit breakers meet UL60950-1 Edition requirements

Product Details

Receptacle TypeNEMA 5-20R
Receptacle Detail24 x NEMA 5-20R
Product FamilyePDU
Serial PortYes
Network (RJ-45)Yes
USBYes
Width2.1"
Power Rating (Watt)8640 W
Country of OriginUnited States
Cord Length10 ft
Depth2.1"
Height66.5"
Plug/Connector TypeNEMA L15-30P
Rack Height38U
Brand NameEaton
Manufacturer Part NumberEMI303-10
Input Voltage230 V AC
Marketing InformationEaton G3 Metered Input ePDUs provide a best-in-class design featureing billing grade accuracy monitoring of input and branch circuits on a local LCD pixel display or over a network connection. The high accuracy meter will measure current voltage power and energy for load balancing capacity planning efficiency monitoring and energy usage reporting. Designed for IT and data center applications means high reliability and a robust design made for high operating temperatures found in containment or networking closets.
  • IEC outlet grip plug retention secures plugs in place using standard cables
  • Advanced LCD pixel display for local display of current voltage power energy and menu setup of parameters such as IP address or display rotation
  • High operating temperature (140F / 60C) for containment or hot network closet environments
  • Hot-swap meter for servicability of without removing power to the rack
  • +/- 1% billing grade accuracy for high accuracy reporting of energy usage
  • Daisy chain of IP addresses allows four devices to share one network connection
Manufacturer Website Addresshttp://www.eaton.com
Limited Warranty3 Year
Input Current24 A
Certifications & Standards
  • UL ITE 60950-1
  • FCC
Weight (Approximate)16.50 lb
ManufacturerEaton Corporation
Product NameePDU 36-Outlets PDU
Mount TypeRack-mountable
Product LineePDU
Product TypePDU
Circuit BreakerYes
