SKU: 1026882715      MFR: Eaton Corporation

GTIN: 743172050397

Product Description

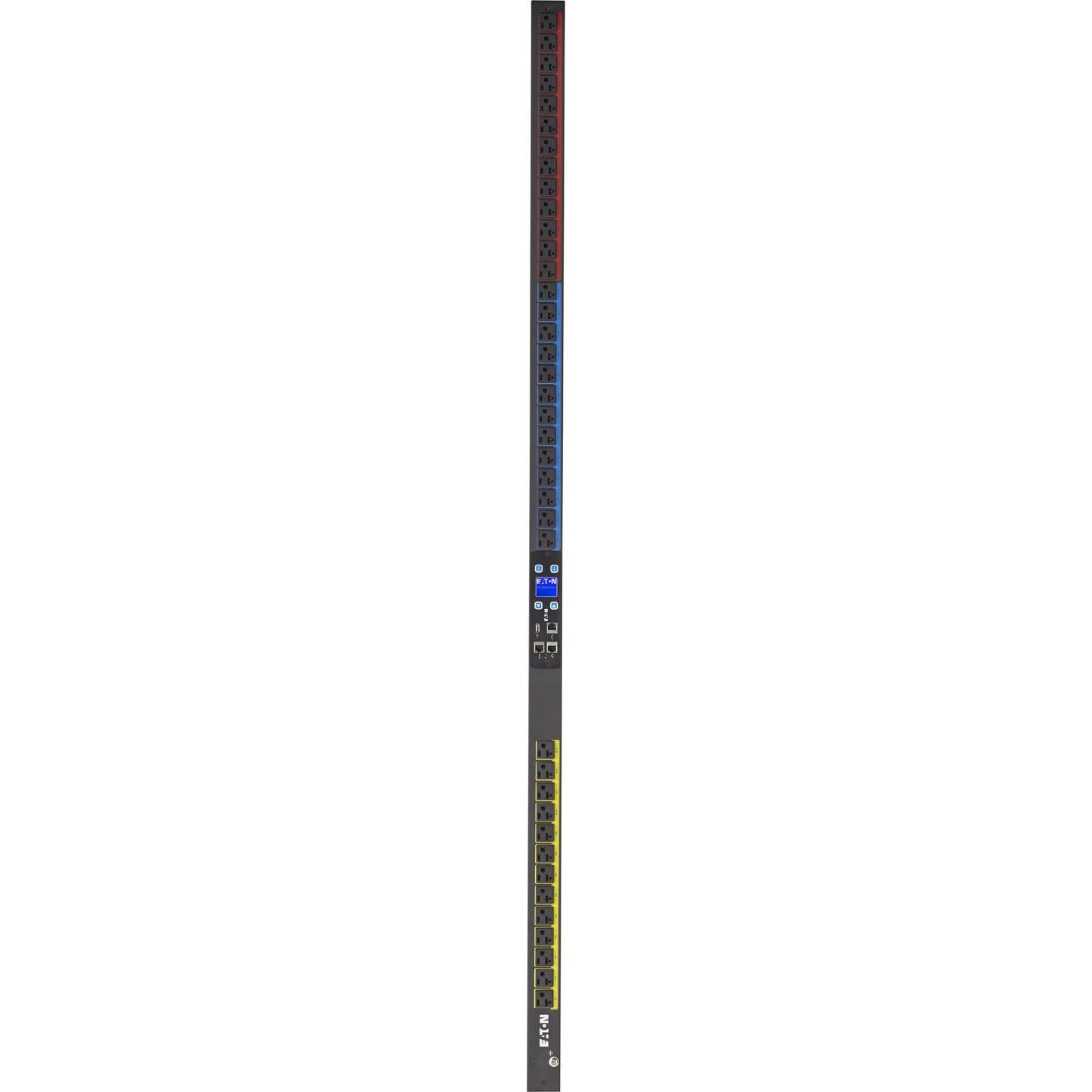

Eaton Metered Input rack PDU 0U L21-20P input 5.76 kW max 120/208V 16A 10 ft cord Three-phase Outlets: (39) 5-20R - NEMA L21-20P - 39 x NEMA 5-20R - 120 V AC 230 V AC - 5760 W - Network (RJ-45) - 40U - Rack-mountable

Manufacturer : Eaton Corporation

Manufacturer Part No : EMI309-10

Features

  • New ePDU G3 models feature ±1% billing grade accuracy an advanced LCD pixel display a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address
  • High density units support up to 25 1U/2U servers or three blade server chassis
  • Easy read digital ammeter reduces local monitoring time
  • Clearly labeled circuits simplify load balancing
  • Reading available via Ethernet connection over a network
  • UL Listed (UL489) branch circuit breakers meet UL60950-1 Edition requirements

Product Details

Depth2.1"
Cord Length10 ft
Country of OriginChina
Height66.5"
Brand NameEaton
Width2.1"
USBYes
Network (RJ-45)Yes
Input Voltage Range120 V AC - 208 V AC
Rack Height40U
Plug/Connector TypeNEMA L21-20P
Serial PortYes
Product FamilyePDU
Receptacle TypeNEMA 5-20R
Receptacle Detail39 x NEMA 5-20R
Power Rating (Watt)5760 W
Product NameePDU 39-Outlets PDU
Mount TypeRack-mountable
Product LineePDU
Input Current16 A
ManufacturerEaton Corporation
Manufacturer Website Addresshttp://www.eaton.com
Marketing InformationEaton G3 Metered Input ePDUs provide a best-in-class design featureing billing grade accuracy monitoring of input and branch circuits on a local LCD pixel display or over a network connection. The high accuracy meter will measure current voltage power and energy for load balancing capacity planning efficiency monitoring and energy usage reporting. Designed for IT and data center applications means high reliability and a robust design made for high operating temperatures found in containment or networking closets.
  • IEC outlet grip plug retention secures plugs in place using standard cables
  • High operating temperature (140F / 60C) for containment or hot network closet environments
  • Hot-swap meter for servicability of without removing power to the rack
  • +/- 1% billing grade accuracy for high accuracy reporting of energy usage
  • Daisy chain of IP addresses allows four devices to share one network connection
  • Color coded outlet sections simplify load balancing
Weight (Approximate)13.70 lb
Certifications & Standards
  • UL ITE 60950-1
  • FCC
Input Voltage120 V AC
Limited Warranty3 Year
Manufacturer Part NumberEMI309-10
Product TypePDU
Circuit BreakerYes
View full details
$1,027.99 USD
$1,027.99
Sale Sold out

Out Of Stock


Update


Shipping calculated at checkout.
