• Eaton Metered Input Rack PDU 5.76 kW max 120/208V 16A 0U Three-Phase PDU
1 1

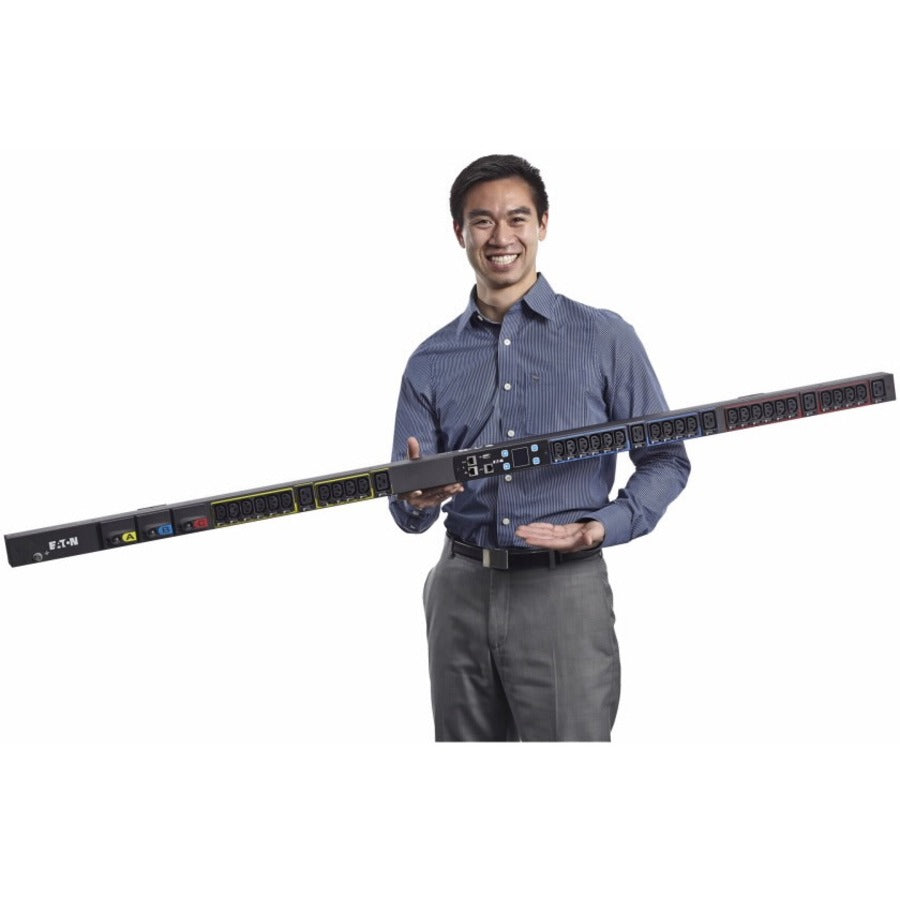

Eaton Metered Input Rack PDU 5.76 kW max 120/208V 16A 0U Three-Phase PDU

Eaton Metered Input Rack PDU 5.76 kW max 120/208V 16A 0U Three-Phase PDU

SKU: 1026882724      MFR: Eaton Corporation

GTIN: 743172050403

Product Description

Eaton Metered Input Rack PDU 5.76 kW max 120/208V 16A 0U Three-Phase PDU - NEMA L21-20P - 30 x IEC 60320 C13 6 x IEC 60320 C19 3 x NEMA 5-20R - 120 V AC 230 V AC - 5760 W - Network (RJ-45) - 38U - Rack-mountable

Manufacturer : Eaton Corporation

Manufacturer Part No : EMI318-10

Features

  • New ePDU G3 models feature ±1% billing grade accuracy an advanced LCD pixel display a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address
  • High density units support up to 25 1U/2U servers or three blade server chassis
  • Easy read digital ammeter reduces local monitoring time
  • Clearly labeled circuits simplify load balancing
  • Reading available via Ethernet connection over a network
  • UL Listed (UL489) branch circuit breakers meet UL60950-1 Edition requirements

Product Details

Circuit BreakerYes
Product TypePDU
Input Voltage120 V AC
Manufacturer Part NumberEMI318-10
Limited Warranty3 Year
Manufacturer Website Addresshttp://www.eaton.com
Marketing InformationEaton G3 Metered Input ePDUs provide a best-in-class design featureing billing grade accuracy monitoring of input and branch circuits on a local LCD pixel display or over a network connection. The high accuracy meter will measure current voltage power and energy for load balancing capacity planning efficiency monitoring and energy usage reporting. Designed for IT and data center applications means high reliability and a robust design made for high operating temperatures found in containment or networking closets.
  • IEC outlet grip plug retention secures plugs in place using standard cables
  • Advanced LCD pixel display for local display of current voltage power energy and menu setup of parameters such as IP address or display rotation
  • High operating temperature (140F / 60C) for containment or hot network closet environments
  • Hot-swap meter for servicability of without removing power to the rack
  • +/- 1% billing grade accuracy for high accuracy reporting of energy usage
  • Daisy chain of IP addresses allows four devices to share one network connection
Weight (Approximate)14.30 lb
Country of OriginChina
Cord Length10 ft
Serial PortYes
Network (RJ-45)Yes
USBYes
Receptacle TypeIEC 60320 C13
Height66.5"
Width2.1"
Depth2.1"
Rack Height38U
Plug/Connector TypeNEMA L21-20P
Input Voltage Range120 V AC - 208 V AC
Brand NameEaton
Product LineePDU
Product NameePDU 39-Outlets PDU
Input Current16 A
Mount TypeRack-mountable
ManufacturerEaton Corporation
Certifications & Standards
  • UL ITE 60950-1
  • FCC
Receptacle Detail30 x IEC 60320 C13
Power Rating (Watt)5760 W
Product FamilyePDU
View full details
$1,438.99 USD
$1,438.99
Sale Sold out

Dropship

Get it by Fri, Jan 10 - Wed, Jan 15


Update


Shipping calculated at checkout.

Eaton Metered Input Rack PDU 5.76 kW max 120/208V 16A 0U Three-Phase PDU - NEMA L21-20P - 30 x IEC 60320 C13 6 x IEC 60320 C19 3 x NEMA 5-20R - 120 V AC 230 V AC - 5760 W - Network (RJ-45) - 38U - Rack-mountable

Manufacturer : Eaton Corporation

Manufacturer Part No : EMI318-10

Features

  • New ePDU G3 models feature ±1% billing grade accuracy an advanced LCD pixel display a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address
  • High density units support up to 25 1U/2U servers or three blade server chassis
  • Easy read digital ammeter reduces local monitoring time
  • Clearly labeled circuits simplify load balancing
  • Reading available via Ethernet connection over a network
  • UL Listed (UL489) branch circuit breakers meet UL60950-1 Edition requirements

Product Details

Circuit BreakerYes
Product TypePDU
Input Voltage120 V AC
Manufacturer Part NumberEMI318-10
Limited Warranty3 Year
Manufacturer Website Addresshttp://www.eaton.com
Marketing InformationEaton G3 Metered Input ePDUs provide a best-in-class design featureing billing grade accuracy monitoring of input and branch circuits on a local LCD pixel display or over a network connection. The high accuracy meter will measure current voltage power and energy for load balancing capacity planning efficiency monitoring and energy usage reporting. Designed for IT and data center applications means high reliability and a robust design made for high operating temperatures found in containment or networking closets.
  • IEC outlet grip plug retention secures plugs in place using standard cables
  • Advanced LCD pixel display for local display of current voltage power energy and menu setup of parameters such as IP address or display rotation
  • High operating temperature (140F / 60C) for containment or hot network closet environments
  • Hot-swap meter for servicability of without removing power to the rack
  • +/- 1% billing grade accuracy for high accuracy reporting of energy usage
  • Daisy chain of IP addresses allows four devices to share one network connection
Weight (Approximate)14.30 lb
Country of OriginChina
Cord Length10 ft
Serial PortYes
Network (RJ-45)Yes
USBYes
Receptacle TypeIEC 60320 C13
Height66.5"
Width2.1"
Depth2.1"
Rack Height38U
Plug/Connector TypeNEMA L21-20P
Input Voltage Range120 V AC - 208 V AC
Brand NameEaton
Product LineePDU
Product NameePDU 39-Outlets PDU
Input Current16 A
Mount TypeRack-mountable
ManufacturerEaton Corporation
Certifications & Standards
  • UL ITE 60950-1
  • FCC
Receptacle Detail30 x IEC 60320 C13
Power Rating (Watt)5760 W
Product FamilyePDU
