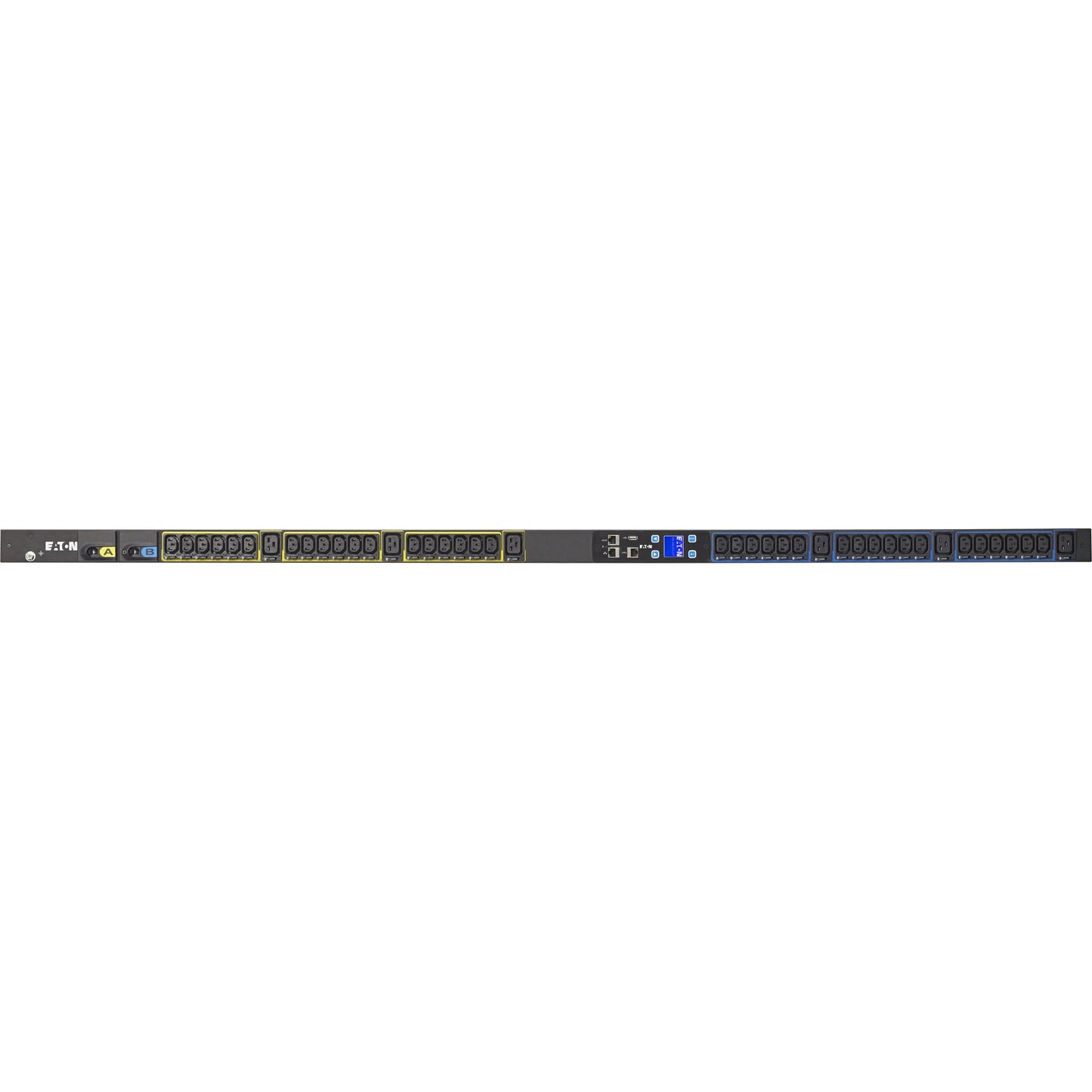

Eaton Metered Input Rack PDU 5.76 kW max 200-240V 24A 0U Single-Phase PDU

Eaton Metered Input Rack PDU 5.76 kW max 200-240V 24A 0U Single-Phase PDU

SKU: 1026882707      MFR: Eaton Corporation

GTIN: 743172048189

Product Description

Eaton Metered Input Rack PDU 5.76 kW max 200-240V 24A 0U Single-Phase PDU - NEMA L6-30P - 36 x IEC 60320 C13 6 x IEC 60320 C19 - 230 V AC - 5760 W - Network (RJ-45) - 38U - Rack-mountable

Manufacturer : Eaton Corporation

Manufacturer Part No : EMI104-10

Features

  • New ePDU G3 models feature ±1% billing grade accuracy an advanced LCD pixel display a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address
  • High density units support up to 25 1U/2U servers or three blade server chassis
  • Easy read digital ammeter reduces local monitoring time
  • Clearly labeled circuits simplify load balancing
  • Reading available via Ethernet connection over a network
  • UL Listed (UL489) branch circuit breakers meet UL60950-1 Edition requirements

Product Details

Product TypePDU
Manufacturer Part NumberEMI104-10
Input Voltage230 V AC
Manufacturer Website Addresshttp://www.eaton.com
Circuit BreakerYes
Marketing InformationEaton G3 Metered Input ePDUs provide a best-in-class design featureing billing grade accuracy monitoring of input and branch circuits on a local LCD pixel display or over a network connection. The high accuracy meter will measure current voltage power and energy for load balancing capacity planning efficiency monitoring and energy usage reporting. Designed for IT and data center applications means high reliability and a robust design made for high operating temperatures found in containment or networking closets.
  • IEC outlet grip plug retention secures plugs in place using standard cables
  • Advanced LCD pixel display for local display of current voltage power energy and menu setup of parameters such as IP address or display rotation
  • High operating temperature (140F / 60C) for containment or hot network closet environments
  • Hot-swap meter for servicability of without removing power to the rack
  • +/- 1% billing grade accuracy for high accuracy reporting of energy usage
  • Daisy chain of IP addresses allows four devices to share one network connection
Weight (Approximate)16 lb
Input Current24 A
Limited Warranty3 Year
Certifications & Standards
  • UL ITE 60950-1
  • FCC
Product NameePDU 42-Outlets PDU
ManufacturerEaton Corporation
Network (RJ-45)Yes
Power Rating (Watt)5760 W
Receptacle Detail36 x IEC 60320 C13
Mount TypeRack-mountable
Product LineePDU
Brand NameEaton
Rack Height38U
Plug/Connector TypeNEMA L6-30P
Country of OriginChina
Cord Length10 ft
Height66.5"
Width2.1"
Depth2.1"
Receptacle TypeIEC 60320 C13
Product FamilyePDU
Serial PortYes
USBYes
View full details
$1,305.99 USD
$1,305.99
Sale Sold out

Dropship


Update


Shipping calculated at checkout.

Eaton Metered Input Rack PDU 5.76 kW max 200-240V 24A 0U Single-Phase PDU - NEMA L6-30P - 36 x IEC 60320 C13 6 x IEC 60320 C19 - 230 V AC - 5760 W - Network (RJ-45) - 38U - Rack-mountable

Manufacturer : Eaton Corporation

Manufacturer Part No : EMI104-10

Features

  • New ePDU G3 models feature ±1% billing grade accuracy an advanced LCD pixel display a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address
  • High density units support up to 25 1U/2U servers or three blade server chassis
  • Easy read digital ammeter reduces local monitoring time
  • Clearly labeled circuits simplify load balancing
  • Reading available via Ethernet connection over a network
  • UL Listed (UL489) branch circuit breakers meet UL60950-1 Edition requirements

Product Details

Product TypePDU
Manufacturer Part NumberEMI104-10
Input Voltage230 V AC
Manufacturer Website Addresshttp://www.eaton.com
Circuit BreakerYes
Marketing InformationEaton G3 Metered Input ePDUs provide a best-in-class design featureing billing grade accuracy monitoring of input and branch circuits on a local LCD pixel display or over a network connection. The high accuracy meter will measure current voltage power and energy for load balancing capacity planning efficiency monitoring and energy usage reporting. Designed for IT and data center applications means high reliability and a robust design made for high operating temperatures found in containment or networking closets.
  • IEC outlet grip plug retention secures plugs in place using standard cables
  • Advanced LCD pixel display for local display of current voltage power energy and menu setup of parameters such as IP address or display rotation
  • High operating temperature (140F / 60C) for containment or hot network closet environments
  • Hot-swap meter for servicability of without removing power to the rack
  • +/- 1% billing grade accuracy for high accuracy reporting of energy usage
  • Daisy chain of IP addresses allows four devices to share one network connection
Weight (Approximate)16 lb
Input Current24 A
Limited Warranty3 Year
Certifications & Standards
  • UL ITE 60950-1
  • FCC
Product NameePDU 42-Outlets PDU
ManufacturerEaton Corporation
Network (RJ-45)Yes
Power Rating (Watt)5760 W
Receptacle Detail36 x IEC 60320 C13
Mount TypeRack-mountable
Product LineePDU
Brand NameEaton
Rack Height38U
Plug/Connector TypeNEMA L6-30P
Country of OriginChina
Cord Length10 ft
Height66.5"
Width2.1"
Depth2.1"
Receptacle TypeIEC 60320 C13
Product FamilyePDU
Serial PortYes
USBYes
