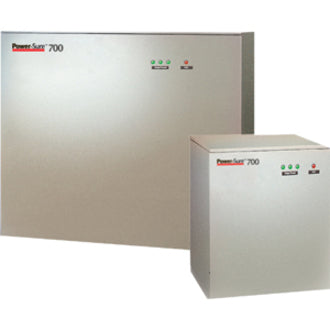

The Power-Sure 700 Three Phase Power Line Conditioning system provides exceptional system reliability that can be attributed to MGE's microprocessor controlled zero-current cross tap switching technology. The Power-Sure 700 combines solid state microprocessor based voltage regulation with a multi-shield computer grade transformer and filter to remove transients and noise. The combined effect is a regulating and shielded isolation transformer/system that solves 99% of the electrical disturbance problems. The Power-Sure 700 protects your system against electrical brownouts sags surges transients and other electrical disturbances. This power conditioner also provides the protection efficiency and reliability that are critical to every application with sensitive equipment.

• UL 1012
• CSA
• FCC Class A certified

• 300kVA
• Input voltage range: +10% to -20%
• Output voltage range: ±3% Typical
• Efficiency: 97% Typical 95% minimum
• Load power factor: 0.6 leading to 0.6 lagging
• Common-mode noise attenuation: 140 dB
• Normal-mode noise attenuation: -3 dB @ 1000 HZ -40dB per decade
• Total harmonic distortion: Less than 1% added
• Correction time: 1 Cycle typical 1.5 Cycle maximum
• Overload rating: 200% for 10 seconds 1000% for 1 cycle
• Audible noise: Less than 50dBA @1 meter (depending on size)
