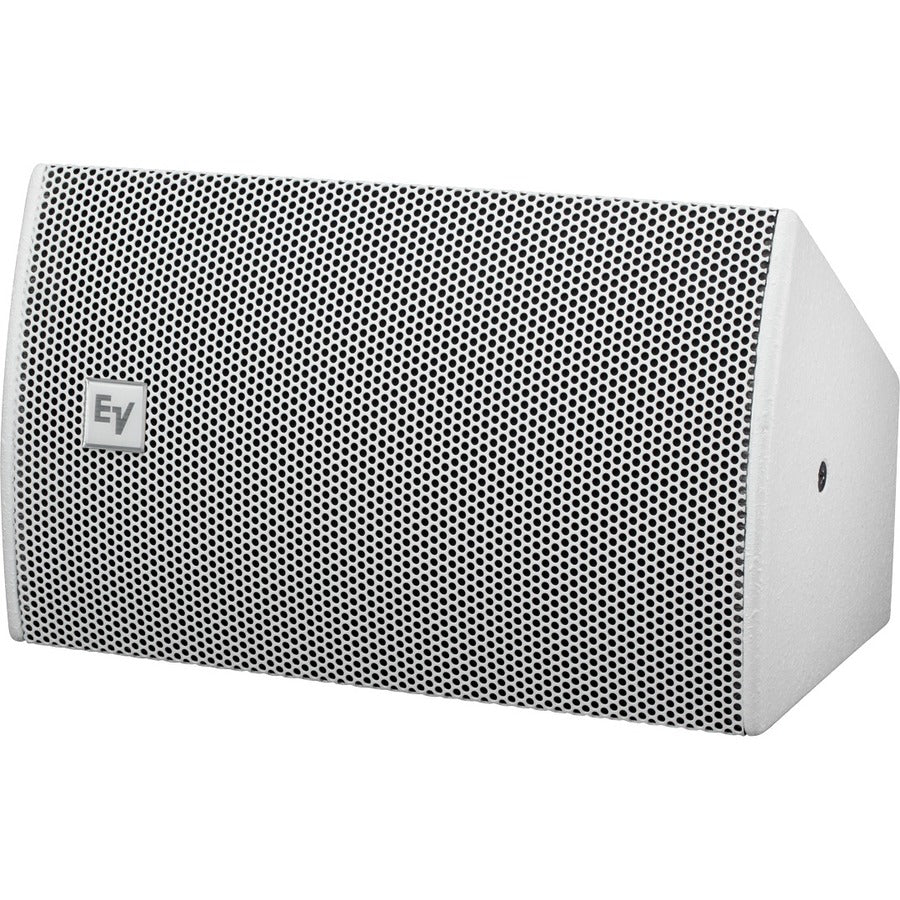

• Electro-Voice 2-way Ceiling Mountable Wall Mountable Speaker - 175 W RMS - White
    Electro-Voice 2-way Ceiling Mountable Wall Mountable Speaker - 175 W RMS - White
1 1

Electro-Voice 2-way Ceiling Mountable Wall Mountable Speaker - 175 W RMS - White

Electro-Voice 2-way Ceiling Mountable Wall Mountable Speaker - 175 W RMS - White

SKU: 1027217550      MFR: The Bosch Group

GTIN: 800549622783

Product Description

Electro-Voice 2-way Ceiling Mountable Wall Mountable Speaker - 175 W RMS - White - 700 W (PMPO) - 8" - 1.30" Titanium Tweeter - 65 Hz to 20 kHz - 8 Ohm

Manufacturer : The Bosch Group

Manufacturer Part No : EVU-1082/95-WHT

Features

  • 1.3" (33 mm) diaphragm 1.4" (36 mm) exit pure titanium compression driver
  • 8" (203 mm) LF transducer
  • Advanced third-order crossover network with HF protection
  • Coverage pattern: 90° x 50° Constant DirectivityTM rotatable waveguide
  • 95 dB sensitivity 123 dB maximum SPL
  • System rating: 175 W continuous 700 W peak
  • Universal U-bracket included
  • 70.7/100-V transformer accessory optional
  • NL4 cover plate accessory optional
  • (6) M8 threaded suspension points

Product Details

Product TypeSpeaker
Crossover Type2-way
Minimum Frequency Response65 Hz
Maximum Frequency Response20 kHz
RMS Output Power175 W
PMPO Output Power700 W
Woofer Diameter8"
Tweeter Driver Size1.30"
Woofer Driver Size8"
Tweeter Driver MaterialTitanium
Height9.7"
Width16.1"
Depth9.3"
ColorWhite
Product SeriesEVU
Brand NameElectro-Voice
Form FactorCeiling Mountable
ManufacturerThe Bosch Group
Product NameEVU-1082/95 Single 8" Two-Way 90° x 50° Full-Range Loudspeaker System
Impedance8 Ohm
Manufacturer Part NumberEVU-1082/95-WHT
Manufacturer Website Addresshttp://www.bosch.com
Marketing InformationGeneral Description:

The Electro-Voice EVU-1082/95 is a compact two-way loudspeaker system that can be used in a variety of applications where high quality sound reinforcement is required in an ultra-compact lightweight enclosure. The enclosure design utilizes asymmetric angles to maintain tight clearances to wall and ceilings while providing optimal coverage patterns making it ideal to blend into surroundings. This design was optimized for wall stage lip and under balcony applications.

The EVU-1082/95 incorporates the ICT-1-8 a high-output 1.3" diaphragm titanium compression driver coupled to a Constant Directivity™ 90° x 50° rotatable waveguide. The ICT-8-8 woofer was developed using FEA optimization to provide the highest sensitivity while achieving the highest level of speech intelligibility. The crossover design uses 18-dB-per-octave slopes with equalization for very smooth response in the vocal range linear off-axis response and a protection circuit for long term reliability.

The EVU series is constructed of 9-ply hardwood plywood enclosures with six integral M8 suspension points to support a wide variety of mounting positions. The EVU system is finished in textured paint available in either white or black. Each EVU system includes a universal U-bracket to facilitate mounting. The U-bracket provides full unobstructed rotation of the loudspeaker (330° unobstructed rotation if the transformer kit is installed). Additional mounting points are located on the rear of the enclosure for use with an Omnimount™ type bracket. An available 70.7/100-V transformer kit may be easily mounted over the input panel for use in distributed systems. All of these features give you the flexibility to address a large range of venues while quickly and precisely supporting customer requirements.
Package Contents
  • EVU-1082/95 Single 8" Two-Way 90° x 50° Full-Range Loudspeaker System
  • Universal U-bracket
Sensitivity123 dB
Weight (Approximate)16.30 lb
Product FamilyEVU
View full details
$795.99 USD
$795.99
Sale Sold out

Out Of Stock


Update


Shipping calculated at checkout.

Electro-Voice 2-way Ceiling Mountable Wall Mountable Speaker - 175 W RMS - White - 700 W (PMPO) - 8" - 1.30" Titanium Tweeter - 65 Hz to 20 kHz - 8 Ohm

Manufacturer : The Bosch Group

Manufacturer Part No : EVU-1082/95-WHT

Features

  • 1.3" (33 mm) diaphragm 1.4" (36 mm) exit pure titanium compression driver
  • 8" (203 mm) LF transducer
  • Advanced third-order crossover network with HF protection
  • Coverage pattern: 90° x 50° Constant DirectivityTM rotatable waveguide
  • 95 dB sensitivity 123 dB maximum SPL
  • System rating: 175 W continuous 700 W peak
  • Universal U-bracket included
  • 70.7/100-V transformer accessory optional
  • NL4 cover plate accessory optional
  • (6) M8 threaded suspension points

Product Details

Product TypeSpeaker
Crossover Type2-way
Minimum Frequency Response65 Hz
Maximum Frequency Response20 kHz
RMS Output Power175 W
PMPO Output Power700 W
Woofer Diameter8"
Tweeter Driver Size1.30"
Woofer Driver Size8"
Tweeter Driver MaterialTitanium
Height9.7"
Width16.1"
Depth9.3"
ColorWhite
Product SeriesEVU
Brand NameElectro-Voice
Form FactorCeiling Mountable
ManufacturerThe Bosch Group
Product NameEVU-1082/95 Single 8" Two-Way 90° x 50° Full-Range Loudspeaker System
Impedance8 Ohm
Manufacturer Part NumberEVU-1082/95-WHT
Manufacturer Website Addresshttp://www.bosch.com
Marketing InformationGeneral Description:

The Electro-Voice EVU-1082/95 is a compact two-way loudspeaker system that can be used in a variety of applications where high quality sound reinforcement is required in an ultra-compact lightweight enclosure. The enclosure design utilizes asymmetric angles to maintain tight clearances to wall and ceilings while providing optimal coverage patterns making it ideal to blend into surroundings. This design was optimized for wall stage lip and under balcony applications.

The EVU-1082/95 incorporates the ICT-1-8 a high-output 1.3" diaphragm titanium compression driver coupled to a Constant Directivity™ 90° x 50° rotatable waveguide. The ICT-8-8 woofer was developed using FEA optimization to provide the highest sensitivity while achieving the highest level of speech intelligibility. The crossover design uses 18-dB-per-octave slopes with equalization for very smooth response in the vocal range linear off-axis response and a protection circuit for long term reliability.

The EVU series is constructed of 9-ply hardwood plywood enclosures with six integral M8 suspension points to support a wide variety of mounting positions. The EVU system is finished in textured paint available in either white or black. Each EVU system includes a universal U-bracket to facilitate mounting. The U-bracket provides full unobstructed rotation of the loudspeaker (330° unobstructed rotation if the transformer kit is installed). Additional mounting points are located on the rear of the enclosure for use with an Omnimount™ type bracket. An available 70.7/100-V transformer kit may be easily mounted over the input panel for use in distributed systems. All of these features give you the flexibility to address a large range of venues while quickly and precisely supporting customer requirements.
Package Contents
  • EVU-1082/95 Single 8" Two-Way 90° x 50° Full-Range Loudspeaker System
  • Universal U-bracket
Sensitivity123 dB
Weight (Approximate)16.30 lb
Product FamilyEVU
