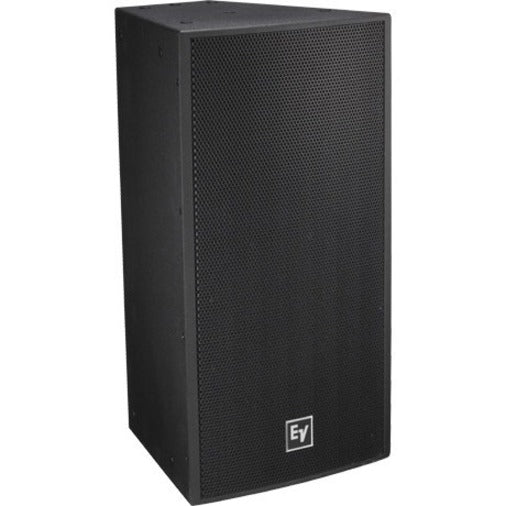

• Electro-Voice 2-way Outdoor Speaker - 500 W RMS - Black Finish
    Electro-Voice 2-way Outdoor Speaker - 500 W RMS - Black Finish
1 1

Electro-Voice 2-way Outdoor Speaker - 500 W RMS - Black Finish

Electro-Voice 2-way Outdoor Speaker - 500 W RMS - Black Finish

SKU: 1027216449      MFR: The Bosch Group

GTIN: 800549698887

Product Description

Electro-Voice 2-way Outdoor Speaker - 500 W RMS - Black Finish - 2000 W (PMPO) - 12" - 2" Titanium Tweeter - 58 Hz to 19 kHz - 8 Ohm

Manufacturer : The Bosch Group

Manufacturer Part No : EVF-1122S/126-PIB

Features

  • The 2-way Outdoor speakers with the 2000 W power handling work terrifically
  • Knock yourself out with 500 W RMS power
  • Listen to deep lows and euphoric highs with a frequency range of sound from 58 Hz-19 kHz
  • 8 Ohm impedance extracts maximum power so you will get more output from your speakers

Product Details

Product TypeSpeaker
Crossover Type2-way
Minimum Frequency Response58 Hz
Maximum Frequency Response19 kHz
RMS Output Power500 W
PMPO Output Power2000 W
Product FamilyEVF
Woofer Diameter12"
ColorBlack Finish
Brand NameElectro-Voice
Impedance8 Ohm
Sensitivity131 dB
Speaker InstallationOutdoor
Tweeter Driver Size2"
Woofer Driver Size12"
Tweeter Driver MaterialTitanium
Height30.3"
Width16"
Depth16.3"
Product SeriesEVF
ManufacturerThe Bosch Group
Product NameEVF-1122S 126 12" Loudspeaker
Manufacturer Part NumberEVF-1122S/126-PIB
Manufacturer Website Addresshttp://www.bosch.com
Marketing InformationKey Features:
  • Fully Weatherized Fiberglass Finish with Gland Nut and Stainless Steel Grille
  • ND2B 2" (51mm) Diaphragm 1.4" (36mm) Exit Pure Titanium Compression Driver
  • SMX2121 12" (305mm) LF Transducer with Fully Symmetric Drive
  • Advanced 4th Order Crossover Network with HF Protection
  • Coverage Pattern: 120° x 60° Constant Directivity™ 12" Rotatable Waveguide
  • 98 dB Sensitivity 131 dB Maximum SPL
  • System Rating: 500W Continuous (2000W Peak)
  • Active Rating: LF400W/HF40W Continuous (1600W/160W Peak)
  • (22) M10 Threaded Suspension Points
General Description:

The Electro-Voice® EVF-1122S/126-FG is a fully-weatherized fiberglass-coated high power 2-way loudspeaker system that can be used in a variety of applications where high quality sound reinforcement is required in a compact lightweight package.

The EVF-1122S/126-FG utilizes the ND2B a high output 2" titanium compression driver coupled to a Constant Directivity™ 120° x 60° waveguide. The SMX2121 12" woofer used FEA optimization for motor suspension and electrical design for very low distortion high efficiency and maximum intelligibility at high SPL levels. The crossover uses steep 24 dB/octave slopes with equalization for very smooth response in vocal range linear off-axis response and a protection circuit for long term reliability.

The EVF-1122S/126-FG features make it ideal for many fixed install applications including applications with full exposure to outdoor elements. The trapezoidal enclosure is constructed out of weather resistant birch and coated with fiberglass for maximum protection from extreme outdoor elements. The unique acoustic and rigging design allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF & EVH Series with 7 horn patterns to choose from and an assortment of Low Frequency and subwoofer loudspeakers it gives you the tools to maximize flexibility of system design no matter what the application and budget. The innovative input panel provides phoenix style connectors (included in all standard models) and gland nut cover plate (for weatherizing applications). An externally accessible jumper selects passive or active operation. An available 70.7/100 Volt transformer kit simply mounts to the input panel for use in distributed systems. All these features give you the flexibility to do a large range of venues in extreme environments with fewer items in inventory and quickly support your customer's requirements.
Weight (Approximate)63.05 lb
View full details
$4,226.99 USD
$4,226.99
Sale Sold out

Out Of Stock


Update


Shipping calculated at checkout.

Electro-Voice 2-way Outdoor Speaker - 500 W RMS - Black Finish - 2000 W (PMPO) - 12" - 2" Titanium Tweeter - 58 Hz to 19 kHz - 8 Ohm

Manufacturer : The Bosch Group

Manufacturer Part No : EVF-1122S/126-PIB

Features

  • The 2-way Outdoor speakers with the 2000 W power handling work terrifically
  • Knock yourself out with 500 W RMS power
  • Listen to deep lows and euphoric highs with a frequency range of sound from 58 Hz-19 kHz
  • 8 Ohm impedance extracts maximum power so you will get more output from your speakers

Product Details

Product TypeSpeaker
Crossover Type2-way
Minimum Frequency Response58 Hz
Maximum Frequency Response19 kHz
RMS Output Power500 W
PMPO Output Power2000 W
Product FamilyEVF
Woofer Diameter12"
ColorBlack Finish
Brand NameElectro-Voice
Impedance8 Ohm
Sensitivity131 dB
Speaker InstallationOutdoor
Tweeter Driver Size2"
Woofer Driver Size12"
Tweeter Driver MaterialTitanium
Height30.3"
Width16"
Depth16.3"
Product SeriesEVF
ManufacturerThe Bosch Group
Product NameEVF-1122S 126 12" Loudspeaker
Manufacturer Part NumberEVF-1122S/126-PIB
Manufacturer Website Addresshttp://www.bosch.com
Marketing InformationKey Features:
  • Fully Weatherized Fiberglass Finish with Gland Nut and Stainless Steel Grille
  • ND2B 2" (51mm) Diaphragm 1.4" (36mm) Exit Pure Titanium Compression Driver
  • SMX2121 12" (305mm) LF Transducer with Fully Symmetric Drive
  • Advanced 4th Order Crossover Network with HF Protection
  • Coverage Pattern: 120° x 60° Constant Directivity™ 12" Rotatable Waveguide
  • 98 dB Sensitivity 131 dB Maximum SPL
  • System Rating: 500W Continuous (2000W Peak)
  • Active Rating: LF400W/HF40W Continuous (1600W/160W Peak)
  • (22) M10 Threaded Suspension Points
General Description:

The Electro-Voice® EVF-1122S/126-FG is a fully-weatherized fiberglass-coated high power 2-way loudspeaker system that can be used in a variety of applications where high quality sound reinforcement is required in a compact lightweight package.

The EVF-1122S/126-FG utilizes the ND2B a high output 2" titanium compression driver coupled to a Constant Directivity™ 120° x 60° waveguide. The SMX2121 12" woofer used FEA optimization for motor suspension and electrical design for very low distortion high efficiency and maximum intelligibility at high SPL levels. The crossover uses steep 24 dB/octave slopes with equalization for very smooth response in vocal range linear off-axis response and a protection circuit for long term reliability.

The EVF-1122S/126-FG features make it ideal for many fixed install applications including applications with full exposure to outdoor elements. The trapezoidal enclosure is constructed out of weather resistant birch and coated with fiberglass for maximum protection from extreme outdoor elements. The unique acoustic and rigging design allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF & EVH Series with 7 horn patterns to choose from and an assortment of Low Frequency and subwoofer loudspeakers it gives you the tools to maximize flexibility of system design no matter what the application and budget. The innovative input panel provides phoenix style connectors (included in all standard models) and gland nut cover plate (for weatherizing applications). An externally accessible jumper selects passive or active operation. An available 70.7/100 Volt transformer kit simply mounts to the input panel for use in distributed systems. All these features give you the flexibility to do a large range of venues in extreme environments with fewer items in inventory and quickly support your customer's requirements.
Weight (Approximate)63.05 lb
