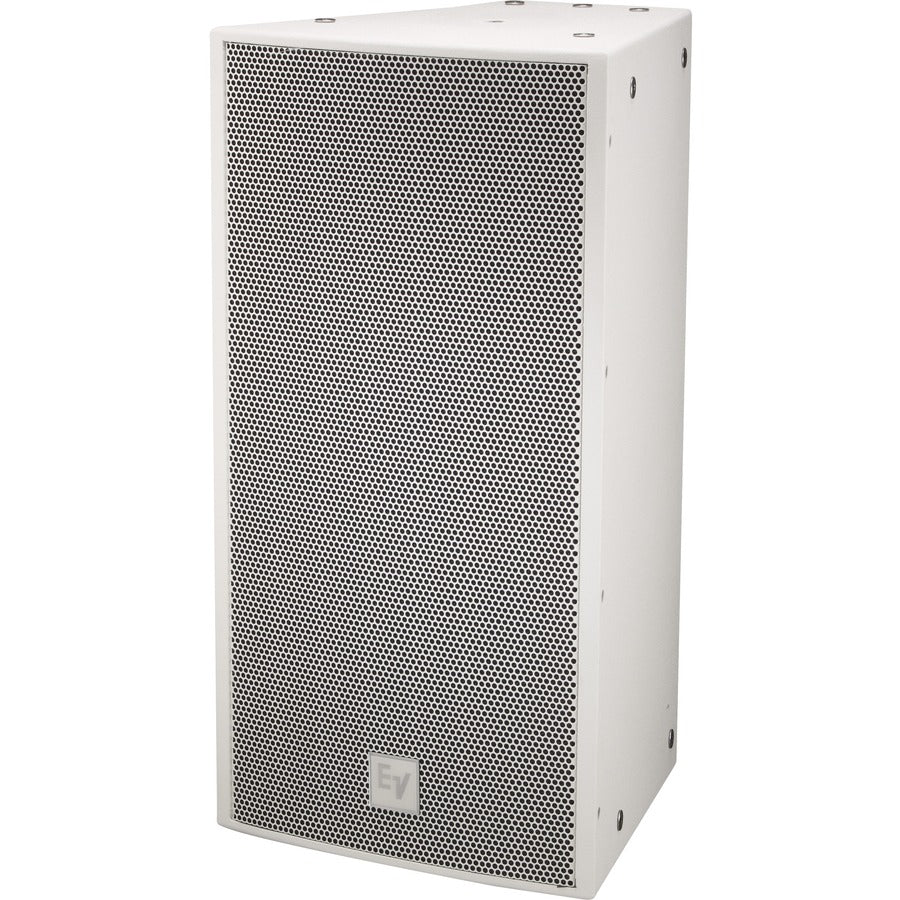

• Electro-Voice 2-way Outdoor Speaker - 600 W RMS - White
    Electro-Voice 2-way Outdoor Speaker - 600 W RMS - White
1 1

Electro-Voice 2-way Outdoor Speaker - 600 W RMS - White

Electro-Voice 2-way Outdoor Speaker - 600 W RMS - White

SKU: 1027216445      MFR: The Bosch Group

GTIN: 722868443699

Product Description

Electro-Voice 2-way Outdoor Speaker - 600 W RMS - White - 2400 W (PMPO) - 12" - 3" Titanium Tweeter - 66 Hz to 21 kHz - 8 Ohm

Manufacturer : The Bosch Group

Manufacturer Part No : EVF-1122D/126-WHT

Features

  • The 2-way Outdoor speakers with the 2400 W power handling work terrifically
  • Knock yourself out with 600 W RMS power
  • Hear low subs and soaring vocals with a frequency range of sound from 66 Hz-21 kHz
  • 8 Ohm impedance extracts maximum power so you will get more output from your speakers

Product Details

Product TypeSpeaker
Crossover Type2-way
Minimum Frequency Response66 Hz
Maximum Frequency Response21 kHz
RMS Output Power600 W
PMPO Output Power2400 W
Woofer Diameter12"
Speaker InstallationOutdoor
Tweeter Driver Size3"
Woofer Driver Size12"
Tweeter Driver MaterialTitanium
Height30.3"
Width16"
Depth16.3"
ColorWhite
Product SeriesEVF
Brand NameElectro-Voice
ManufacturerThe Bosch Group
Product NameSingle 12" Two-Way 120° x 60° Full-Range Fully-Weatherized Loudspeaker System
Impedance8 Ohm
Manufacturer Part NumberEVF-1122D/126-WHT
Manufacturer Website Addresshttp://www.bosch.com
Marketing InformationThe Electro-Voice EVF-1122D/126-FG is a fully-weatherized fiber- glass-coated high-power two-way loudspeaker system that can be used in a variety of applications where high-quality sound reinforce- ment is required in a compact lightweight package.

The EVF-1122D/126-FG utilizes the DH7N a high-output 3" titanium compression driver coupled to a Constant DirectivityTM 120° x 60° waveguide. The DVX3121A 12" woofer was developed using FEA optimization for motor suspension and electrical design to ensure very low distortion high efficiency and maximum intelligibility at high SPL. The crossover uses steep 24-dB-per-octave slopes with equal- ization for very smooth response in the vocal range linear off-axis response and a protection circuit for long-term reliability.

The EVF-1122D/126-FG's features make it ideal for many fixed-install applications including applications with full exposure to outdoor elements. The trapezoidal enclosure is constructed of weather- resistant birch and coated with fiberglass for maximum protection from extreme outdoor elements. The unique acoustic and rigging de- sign allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF and EVH series. With seven horn patterns to choose from along with an assortment of low-frequency and subwoofer loudspeakers you have the tools to maximize flexibility of system design no matter what the application and budget. The innovative input panel provides a choice of Phoenix- style connector (included in all standard models) or the ability to add a dual NL4-type connector cover plate or gland-nut cover plate (for weatherizing applications). An externally accessible jumper selects passive or active operation. An available 70.7/100-V transformer kit may be easily mounted to the input panel for use in distributed systems. All these features give you the flexibility to address a large range of venues quickly and precisely supporting customer require- ments with fewer items in inventory.
Packaged Quantity1
Sensitivity110 dB
Weight (Approximate)65.50 lb
Product FamilyEVF
View full details
$4,057.99 USD
$4,057.99
Sale Sold out

Out Of Stock


Update


Shipping calculated at checkout.

Electro-Voice 2-way Outdoor Speaker - 600 W RMS - White - 2400 W (PMPO) - 12" - 3" Titanium Tweeter - 66 Hz to 21 kHz - 8 Ohm

Manufacturer : The Bosch Group

Manufacturer Part No : EVF-1122D/126-WHT

Features

  • The 2-way Outdoor speakers with the 2400 W power handling work terrifically
  • Knock yourself out with 600 W RMS power
  • Hear low subs and soaring vocals with a frequency range of sound from 66 Hz-21 kHz
  • 8 Ohm impedance extracts maximum power so you will get more output from your speakers

Product Details

Product TypeSpeaker
Crossover Type2-way
Minimum Frequency Response66 Hz
Maximum Frequency Response21 kHz
RMS Output Power600 W
PMPO Output Power2400 W
Woofer Diameter12"
Speaker InstallationOutdoor
Tweeter Driver Size3"
Woofer Driver Size12"
Tweeter Driver MaterialTitanium
Height30.3"
Width16"
Depth16.3"
ColorWhite
Product SeriesEVF
Brand NameElectro-Voice
ManufacturerThe Bosch Group
Product NameSingle 12" Two-Way 120° x 60° Full-Range Fully-Weatherized Loudspeaker System
Impedance8 Ohm
Manufacturer Part NumberEVF-1122D/126-WHT
Manufacturer Website Addresshttp://www.bosch.com
Marketing InformationThe Electro-Voice EVF-1122D/126-FG is a fully-weatherized fiber- glass-coated high-power two-way loudspeaker system that can be used in a variety of applications where high-quality sound reinforce- ment is required in a compact lightweight package.

The EVF-1122D/126-FG utilizes the DH7N a high-output 3" titanium compression driver coupled to a Constant DirectivityTM 120° x 60° waveguide. The DVX3121A 12" woofer was developed using FEA optimization for motor suspension and electrical design to ensure very low distortion high efficiency and maximum intelligibility at high SPL. The crossover uses steep 24-dB-per-octave slopes with equal- ization for very smooth response in the vocal range linear off-axis response and a protection circuit for long-term reliability.

The EVF-1122D/126-FG's features make it ideal for many fixed-install applications including applications with full exposure to outdoor elements. The trapezoidal enclosure is constructed of weather- resistant birch and coated with fiberglass for maximum protection from extreme outdoor elements. The unique acoustic and rigging de- sign allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF and EVH series. With seven horn patterns to choose from along with an assortment of low-frequency and subwoofer loudspeakers you have the tools to maximize flexibility of system design no matter what the application and budget. The innovative input panel provides a choice of Phoenix- style connector (included in all standard models) or the ability to add a dual NL4-type connector cover plate or gland-nut cover plate (for weatherizing applications). An externally accessible jumper selects passive or active operation. An available 70.7/100-V transformer kit may be easily mounted to the input panel for use in distributed systems. All these features give you the flexibility to address a large range of venues quickly and precisely supporting customer require- ments with fewer items in inventory.
Packaged Quantity1
Sensitivity110 dB
Weight (Approximate)65.50 lb
Product FamilyEVF
