Electro-Voice 2-way Speaker - 500 W RMS - White
Electro-Voice 2-way Speaker - 500 W RMS - White
SKU: 1027217620 MFR: The Bosch Group
GTIN: 800549699112
Product Description
Electro-Voice 2-way Speaker - 500 W RMS - White - 2000 W (PMPO) - 15" - 2" Titanium Tweeter - 41 Hz to 18 kHz - 8 Ohm
Manufacturer : The Bosch Group
Manufacturer Part No : EVF-1152S/99-WHT
Features
- The 2-way speakers give smooth and precise production of sound to deliver an ultimate audio experience
- Knock yourself out with 500 W RMS power
- Hear every detail crisp and clear with a frequency response of 41 Hz-18 kHz
- 8 Ohm impedance extracts maximum power so you will get more output from your speakers
Product Details
- ND2B 2" (51mm) Diaphragm 1.4" (36mm) Exit Pure Titanium Compression Driver
- SMX2151 15" (381mm) LF Transducer with Fully Symmetric Drive
- Advanced 4th Order Crossover Network with HF Protection
- Coverage Pattern: 90° x 90° Constant Directivity™ 12" Rotatable Waveguide
- 101 dB Sensitivity 134 dB Maximum SPL
- System Rating: 500W Continuous (2000W Peak)
- Active Rating: LF400W/HF40W Continuous (1600W/160W Peak)
- (22) M10 Threaded Suspension Points
- PI Version Available with Gland Nut and Stainless Steel Grille
The Electro-Voice® EVF-1152S/99 is a high power 2-way loudspeaker system that can be used in a variety of applications where high quality sound reinforcement is required in a compact lightweight package.
The EVF-1152S/99 utilizes the ND2B a high output 2" titanium compression driver coupled to a Constant Directivity™ 90° x 90° waveguide. The SMX2151 15" woofer used FEA optimization for motor suspension and electrical design for very low distortion high efficiency and maximum intelligibility at high SPL levels. The crossover uses steep 24 dB/octave slopes with equalization for very smooth response in vocal range linear off-axis response and a protection circuit for long term reliability.

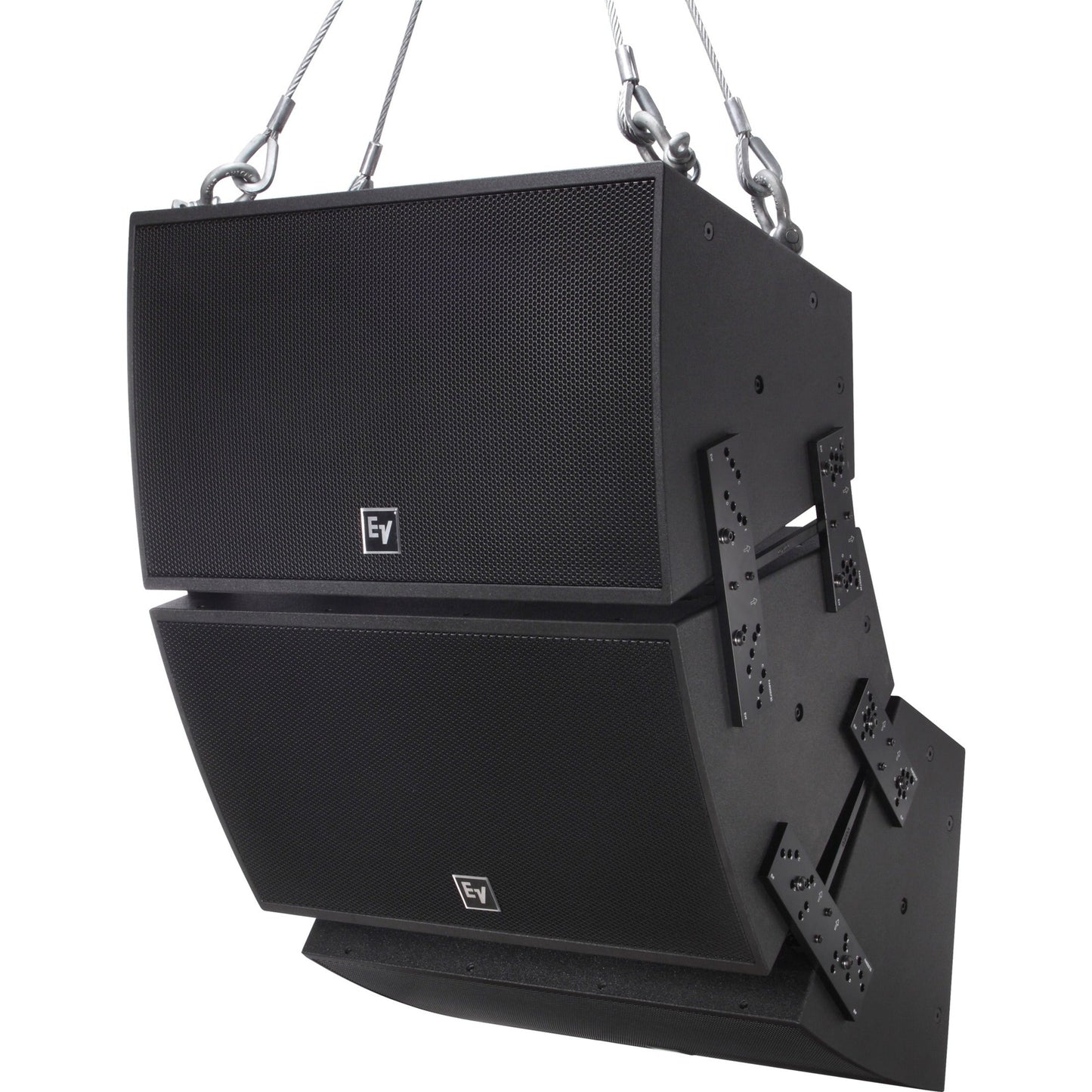

The EVF-1152S/99 features make it ideal for many fixed install applications. The trapezoidal enclosure is constructed out of weather resistant birch and coated with EVCoat™ for maximum protection from the elements. The unique acoustic and rigging design allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF & EVH Series with 7 horn patterns to choose from and an assortment of Low Frequency and subwoofer loudspeakers it gives you the tools to maximize flexibility of system design no matter what the application and budget. The innovative input panel provides choice of phoenix style connector (included in all standard models) or the ability to add; a dual NL4 type connector cover plate or gland nut cover plate (for weatherizing applications). An externally accessible jumper selects passive or active operation. An available 70.7/100 Volt transformer kit simply mounts to the input panel for use in distributed systems. All these features give you the flexibility to do a large range of venues with fewer items in inventory and quickly support your customer's requirements.
Out Of Stock
Update
Couldn't load pickup availability
![Electro-Voice 2-way Speaker - 500 W RMS - White](http://tekmentum.com/cdn/shop/files/1027217620.jpg?v=1695321270&width=1445)
![Electro-Voice 2-way Speaker - 500 W RMS - White](http://tekmentum.com/cdn/shop/files/1027217620_81a21beb-60e6-4168-8319-ce2963ae7947.jpg?v=1698374307&width=1445)
![Electro-Voice 2-way Speaker - 500 W RMS - White](http://tekmentum.com/cdn/shop/files/1027217620_91d25198-9343-42f8-ba77-cfea3d3805f8.jpg?v=1698374310&width=1445)
![Electro-Voice 2-way Speaker - 500 W RMS - White](http://tekmentum.com/cdn/shop/files/1027217620_ff1a0e9f-96b9-4b57-af0d-e5c089d49c56.jpg?v=1698374313&width=1445)
![Electro-Voice 2-way Speaker - 500 W RMS - White](http://tekmentum.com/cdn/shop/files/1027217620_8483d59a-fbe1-44c3-98c1-21c40fdf8e57.jpg?v=1698374336&width=1445)
Electro-Voice 2-way Speaker - 500 W RMS - White - 2000 W (PMPO) - 15" - 2" Titanium Tweeter - 41 Hz to 18 kHz - 8 Ohm
Manufacturer : The Bosch Group
Manufacturer Part No : EVF-1152S/99-WHT
Features
- The 2-way speakers give smooth and precise production of sound to deliver an ultimate audio experience
- Knock yourself out with 500 W RMS power
- Hear every detail crisp and clear with a frequency response of 41 Hz-18 kHz
- 8 Ohm impedance extracts maximum power so you will get more output from your speakers
Product Details
- ND2B 2" (51mm) Diaphragm 1.4" (36mm) Exit Pure Titanium Compression Driver
- SMX2151 15" (381mm) LF Transducer with Fully Symmetric Drive
- Advanced 4th Order Crossover Network with HF Protection
- Coverage Pattern: 90° x 90° Constant Directivity™ 12" Rotatable Waveguide
- 101 dB Sensitivity 134 dB Maximum SPL
- System Rating: 500W Continuous (2000W Peak)
- Active Rating: LF400W/HF40W Continuous (1600W/160W Peak)
- (22) M10 Threaded Suspension Points
- PI Version Available with Gland Nut and Stainless Steel Grille
The Electro-Voice® EVF-1152S/99 is a high power 2-way loudspeaker system that can be used in a variety of applications where high quality sound reinforcement is required in a compact lightweight package.
The EVF-1152S/99 utilizes the ND2B a high output 2" titanium compression driver coupled to a Constant Directivity™ 90° x 90° waveguide. The SMX2151 15" woofer used FEA optimization for motor suspension and electrical design for very low distortion high efficiency and maximum intelligibility at high SPL levels. The crossover uses steep 24 dB/octave slopes with equalization for very smooth response in vocal range linear off-axis response and a protection circuit for long term reliability.
The EVF-1152S/99 features make it ideal for many fixed install applications. The trapezoidal enclosure is constructed out of weather resistant birch and coated with EVCoat™ for maximum protection from the elements. The unique acoustic and rigging design allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF & EVH Series with 7 horn patterns to choose from and an assortment of Low Frequency and subwoofer loudspeakers it gives you the tools to maximize flexibility of system design no matter what the application and budget. The innovative input panel provides choice of phoenix style connector (included in all standard models) or the ability to add; a dual NL4 type connector cover plate or gland nut cover plate (for weatherizing applications). An externally accessible jumper selects passive or active operation. An available 70.7/100 Volt transformer kit simply mounts to the input panel for use in distributed systems. All these features give you the flexibility to do a large range of venues with fewer items in inventory and quickly support your customer's requirements.
