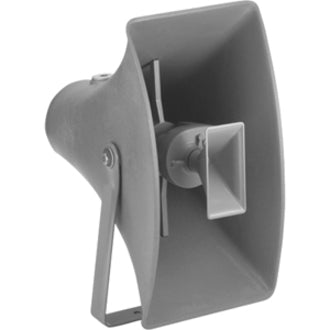

• Electro-Voice CDP848AT Speaker - 30 W RMS - Gray
    Electro-Voice CDP848AT Speaker - 30 W RMS - Gray
1 1

Electro-Voice CDP848AT Speaker - 30 W RMS - Gray

Electro-Voice CDP848AT Speaker - 30 W RMS - Gray

SKU: 1020312848      MFR: The Bosch Group

GTIN: 800549424165

Product Description

Electro-Voice CDP848AT Speaker - 30 W RMS - Gray - 260 Hz to 10 kHz

Manufacturer : The Bosch Group

Manufacturer Part No : CDP848AT

Features

  • Handles up to 30 W of RMS power
  • Hear low subs and soaring vocals with a frequency range of sound from 260 Hz-10 kHz

Product Details

Product TypeSpeaker
Minimum Frequency Response260 Hz
Maximum Frequency Response10 kHz
RMS Output Power30 W
Height20.5"
Width10.4"
Depth20.1"
ColorGray
Brand NameElectro-Voice
ManufacturerThe Bosch Group
Product ModelCDP848AT
Product NameCDP848AT Speaker
Manufacturer Part NumberCDP848AT
Manufacturer Website Addresshttp://www.bosch.com
Marketing InformationModel 848AT is a wide-range integrated horn and driver system with a single driver unit having two coaxial horns coupled to opposite sides of the driver diaphragm.

The folded construction of the rear horn coupled with the smaller dimensions of the front horn present a 1000 Hz acoustic crossover. This separation of frequencies provides a more extended high frequency response and cleaner sound.

The 150° horizontal by 110° vertical dispersion pattern is beneficial in many applications requiring a wide coverage pattern. Furthermore excellent loading is maintained to a low-frequency cutoff of 200 Hz.

Architects' and Engineers' Specifications

The loudspeaker shall be of the integrated driver and horn style utilizing two coaxial horns coupled to opposite sides of the driver diaphragm and a larger horn compression molded from fiberglass a zinc die-cast front horn with phenolic constructed inner horns. The driver uses a high-temperature rated 1.5-inch diameter voice coil.

The axial frequency response will extend from 260-10000 Hz and the horn shall exhibit a low-frequency cutoff of 200 Hz. Sound pressure level will be 105 dB (1 W/1 M) with a 500-5000-Hz pink noise signal applied and the horn will produce a horizontal beamwidth of 150° and a vertical beamwidth of 110° at 2 kHz. The horizontal coverage shall be constant over the frequency range of 3 kHz to 10 kHz.

The loudspeaker shall be compression-molded fiberglass capable of satisfactory mechanical performance in the temperature range from -40°C to +40°C and not subject to sunlight embrittlement. Other major external speaker parts shall be die-cast zinc and finished in gray polyester paint to match the molded horn parts. All components shall be resistant to damage from weather moisture and fungus.

A steel swivel bracket capable of providing either vertical or horizontal installation and a variety of adjustments is provided.

The loudspeaker shall be 52.0 cm (20.5 in.) high 26.5 cm (10.5 in.) wide and 54.6 cm (21.5 in.) long.

The loudspeaker shall be the 848AT which includes a 70V/25V transformer and weighs no more than 7.0 kg (15.5 lb).
Limited Warranty5 Year
Weight (Approximate)15.43 lb
View full details
$1,028.99 USD
$1,028.99
Sale Sold out

Out Of Stock


Update


Shipping calculated at checkout.

Electro-Voice CDP848AT Speaker - 30 W RMS - Gray - 260 Hz to 10 kHz

Manufacturer : The Bosch Group

Manufacturer Part No : CDP848AT

Features

  • Handles up to 30 W of RMS power
  • Hear low subs and soaring vocals with a frequency range of sound from 260 Hz-10 kHz

Product Details

Product TypeSpeaker
Minimum Frequency Response260 Hz
Maximum Frequency Response10 kHz
RMS Output Power30 W
Height20.5"
Width10.4"
Depth20.1"
ColorGray
Brand NameElectro-Voice
ManufacturerThe Bosch Group
Product ModelCDP848AT
Product NameCDP848AT Speaker
Manufacturer Part NumberCDP848AT
Manufacturer Website Addresshttp://www.bosch.com
Marketing InformationModel 848AT is a wide-range integrated horn and driver system with a single driver unit having two coaxial horns coupled to opposite sides of the driver diaphragm.

The folded construction of the rear horn coupled with the smaller dimensions of the front horn present a 1000 Hz acoustic crossover. This separation of frequencies provides a more extended high frequency response and cleaner sound.

The 150° horizontal by 110° vertical dispersion pattern is beneficial in many applications requiring a wide coverage pattern. Furthermore excellent loading is maintained to a low-frequency cutoff of 200 Hz.

Architects' and Engineers' Specifications

The loudspeaker shall be of the integrated driver and horn style utilizing two coaxial horns coupled to opposite sides of the driver diaphragm and a larger horn compression molded from fiberglass a zinc die-cast front horn with phenolic constructed inner horns. The driver uses a high-temperature rated 1.5-inch diameter voice coil.

The axial frequency response will extend from 260-10000 Hz and the horn shall exhibit a low-frequency cutoff of 200 Hz. Sound pressure level will be 105 dB (1 W/1 M) with a 500-5000-Hz pink noise signal applied and the horn will produce a horizontal beamwidth of 150° and a vertical beamwidth of 110° at 2 kHz. The horizontal coverage shall be constant over the frequency range of 3 kHz to 10 kHz.

The loudspeaker shall be compression-molded fiberglass capable of satisfactory mechanical performance in the temperature range from -40°C to +40°C and not subject to sunlight embrittlement. Other major external speaker parts shall be die-cast zinc and finished in gray polyester paint to match the molded horn parts. All components shall be resistant to damage from weather moisture and fungus.

A steel swivel bracket capable of providing either vertical or horizontal installation and a variety of adjustments is provided.

The loudspeaker shall be 52.0 cm (20.5 in.) high 26.5 cm (10.5 in.) wide and 54.6 cm (21.5 in.) long.

The loudspeaker shall be the 848AT which includes a 70V/25V transformer and weighs no more than 7.0 kg (15.5 lb).
Limited Warranty5 Year
Weight (Approximate)15.43 lb
