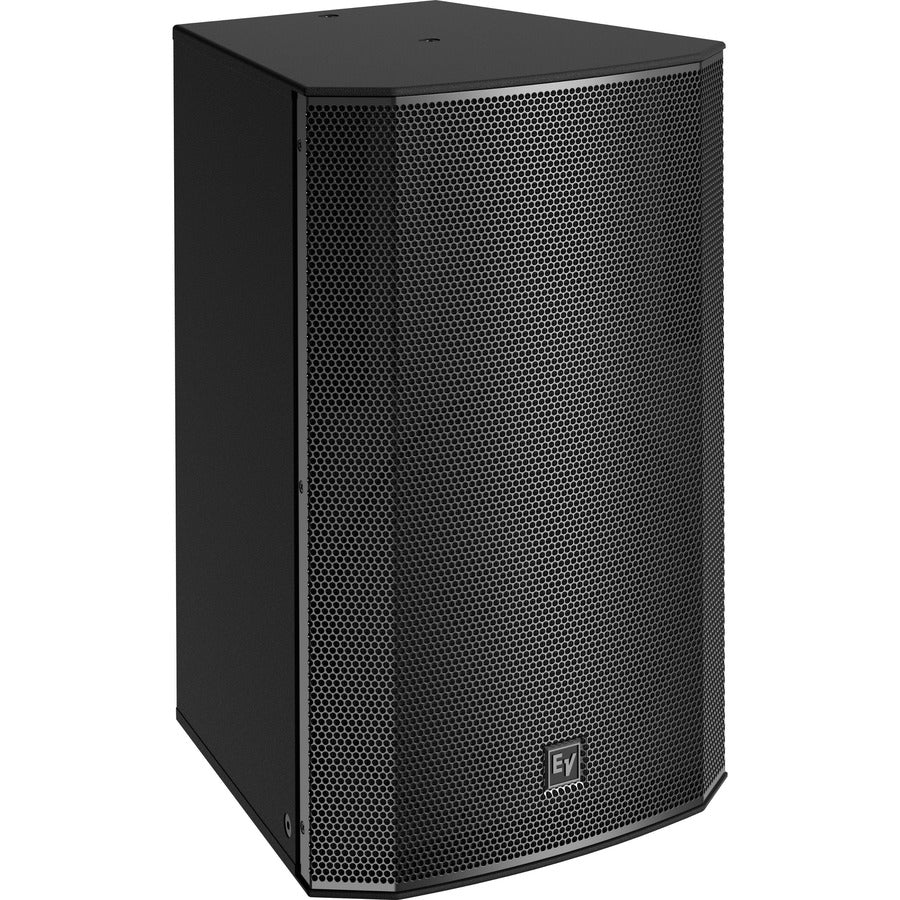

• Electro-Voice EVC-1152-64PIB 2-way Wall Mountable Speaker - 350 W RMS - Black
    Electro-Voice EVC-1152-64PIB 2-way Wall Mountable Speaker - 350 W RMS - Black
1 1

Electro-Voice EVC-1152-64PIB 2-way Wall Mountable Speaker - 350 W RMS - Black

Electro-Voice EVC-1152-64PIB 2-way Wall Mountable Speaker - 350 W RMS - Black

SKU: 1065216838      MFR: The Bosch Group

GTIN: 800549834148

Product Description

Electro-Voice EVC-1152-64PIB 2-way Wall Mountable Speaker - 350 W RMS - Black - 1400 W (PMPO) - 8" - 1.25" Titanium Dome Tweeter - 70 Hz to 20 kHz - 8 Ohm

Manufacturer : The Bosch Group

Manufacturer Part No : EVC-1152-64PIB

Features

  • 15-inch two-way loudspeaker with 60? x 45? constant directivity rotatable waveguide
  • Power rating: 350 W Continuous (1400 W Peak)
  • Passive system: 98 dB 129 dB maximum
  • Gland nut cover and stainless steel grille on PI versions
  • Optional high quality transformer and patented Automatic Saturation Control (ASC) preserve low end in 70V/100V lines

Product Details

Product TypeSpeaker
Crossover Type2-way
Minimum Frequency Response70 Hz
Maximum Frequency Response20 kHz
RMS Output Power350 W
PMPO Output Power1400 W
Tweeter Driver Size1.25"
Woofer Driver Size8"
Tweeter Driver MaterialTitanium Dome
Height26.9"
Width17"
Depth17.8"
ColorBlack
Brand NameElectro-Voice
DurabilityWeather Resistant
Form FactorWall Mountable
ManufacturerThe Bosch Group
Product ModelEVC-1152-64PIB
Product NameEVC-1152-64 15" Speaker 60x45
Impedance8 Ohm
Manufacturer Part NumberEVC-1152-64PIB
Manufacturer Website Addresshttp://www.bosch.com
Marketing InformationEVC loudspeakers from Electro-Voice are two-way systems that can be used in a broad range of applications where wide bandwidth vertical and horizontal directivity control and high efficiency are required in a compact cost-effective package. EVC loudspeakers are voiced to complement other EVInnovation models (EVF EVH EVA).
The high frequency section of EVC loudspeakers comprises a single 1¼-inch pure titanium dome compression driver directly coupled to a rotatable constant directivity waveguide that delivers uniform pattern control and smooth linear response. The low frequency section employs a high-output woofer that was developed using state-of-the-art computer aided optimization to provide low distortion high efficiency and maximum intelligibility at high sound pressure levels. The passive crossover implements a fourthorder Linkwitz Riley design with slopes of 24 dB per octave for smooth off axis response and improved definition through the critical vocal range.
The EVC series is an extremely cost effective solution for many fixed-install applications. The enclosures are constructed of 15-mm plywood and finished with EVCoat for enhanced durability. The loudspeakers have been designed with multiple M10 rigging points as well as attachment points for an optional U-bracket or multi-mount style pan/tilt wall mount. All EVC series loudspeakers accept wire gauges up to 10 AWG. The input panel also accepts optional covers with NL4-type connectors or weatherized gland-nuts.
For 70V/100V operation the input panel has an internal landing pad for mounting EV's high-quality TK150 audio transformer. Adding a TK150 to the EVC input panel engages EV's patented Automatic Saturation Compensation (ASC) which preserves low frequency performance while presenting a stable load to the amplifier regardless of how many loudspeakers are connected in parallel. This results in transformer and non-transformer EVC loudspeakers that sound virtually identical.
Sensitivity98 dB
Weight (Approximate)55.12 lb
View full details
$2,149.99 USD
$2,149.99
Sale Sold out

Out Of Stock


Update


Shipping calculated at checkout.

Electro-Voice EVC-1152-64PIB 2-way Wall Mountable Speaker - 350 W RMS - Black - 1400 W (PMPO) - 8" - 1.25" Titanium Dome Tweeter - 70 Hz to 20 kHz - 8 Ohm

Manufacturer : The Bosch Group

Manufacturer Part No : EVC-1152-64PIB

Features

  • 15-inch two-way loudspeaker with 60? x 45? constant directivity rotatable waveguide
  • Power rating: 350 W Continuous (1400 W Peak)
  • Passive system: 98 dB 129 dB maximum
  • Gland nut cover and stainless steel grille on PI versions
  • Optional high quality transformer and patented Automatic Saturation Control (ASC) preserve low end in 70V/100V lines

Product Details

Product TypeSpeaker
Crossover Type2-way
Minimum Frequency Response70 Hz
Maximum Frequency Response20 kHz
RMS Output Power350 W
PMPO Output Power1400 W
Tweeter Driver Size1.25"
Woofer Driver Size8"
Tweeter Driver MaterialTitanium Dome
Height26.9"
Width17"
Depth17.8"
ColorBlack
Brand NameElectro-Voice
DurabilityWeather Resistant
Form FactorWall Mountable
ManufacturerThe Bosch Group
Product ModelEVC-1152-64PIB
Product NameEVC-1152-64 15" Speaker 60x45
Impedance8 Ohm
Manufacturer Part NumberEVC-1152-64PIB
Manufacturer Website Addresshttp://www.bosch.com
Marketing InformationEVC loudspeakers from Electro-Voice are two-way systems that can be used in a broad range of applications where wide bandwidth vertical and horizontal directivity control and high efficiency are required in a compact cost-effective package. EVC loudspeakers are voiced to complement other EVInnovation models (EVF EVH EVA).
The high frequency section of EVC loudspeakers comprises a single 1¼-inch pure titanium dome compression driver directly coupled to a rotatable constant directivity waveguide that delivers uniform pattern control and smooth linear response. The low frequency section employs a high-output woofer that was developed using state-of-the-art computer aided optimization to provide low distortion high efficiency and maximum intelligibility at high sound pressure levels. The passive crossover implements a fourthorder Linkwitz Riley design with slopes of 24 dB per octave for smooth off axis response and improved definition through the critical vocal range.
The EVC series is an extremely cost effective solution for many fixed-install applications. The enclosures are constructed of 15-mm plywood and finished with EVCoat for enhanced durability. The loudspeakers have been designed with multiple M10 rigging points as well as attachment points for an optional U-bracket or multi-mount style pan/tilt wall mount. All EVC series loudspeakers accept wire gauges up to 10 AWG. The input panel also accepts optional covers with NL4-type connectors or weatherized gland-nuts.
For 70V/100V operation the input panel has an internal landing pad for mounting EV's high-quality TK150 audio transformer. Adding a TK150 to the EVC input panel engages EV's patented Automatic Saturation Compensation (ASC) which preserves low frequency performance while presenting a stable load to the amplifier regardless of how many loudspeakers are connected in parallel. This results in transformer and non-transformer EVC loudspeakers that sound virtually identical.
Sensitivity98 dB
Weight (Approximate)55.12 lb
